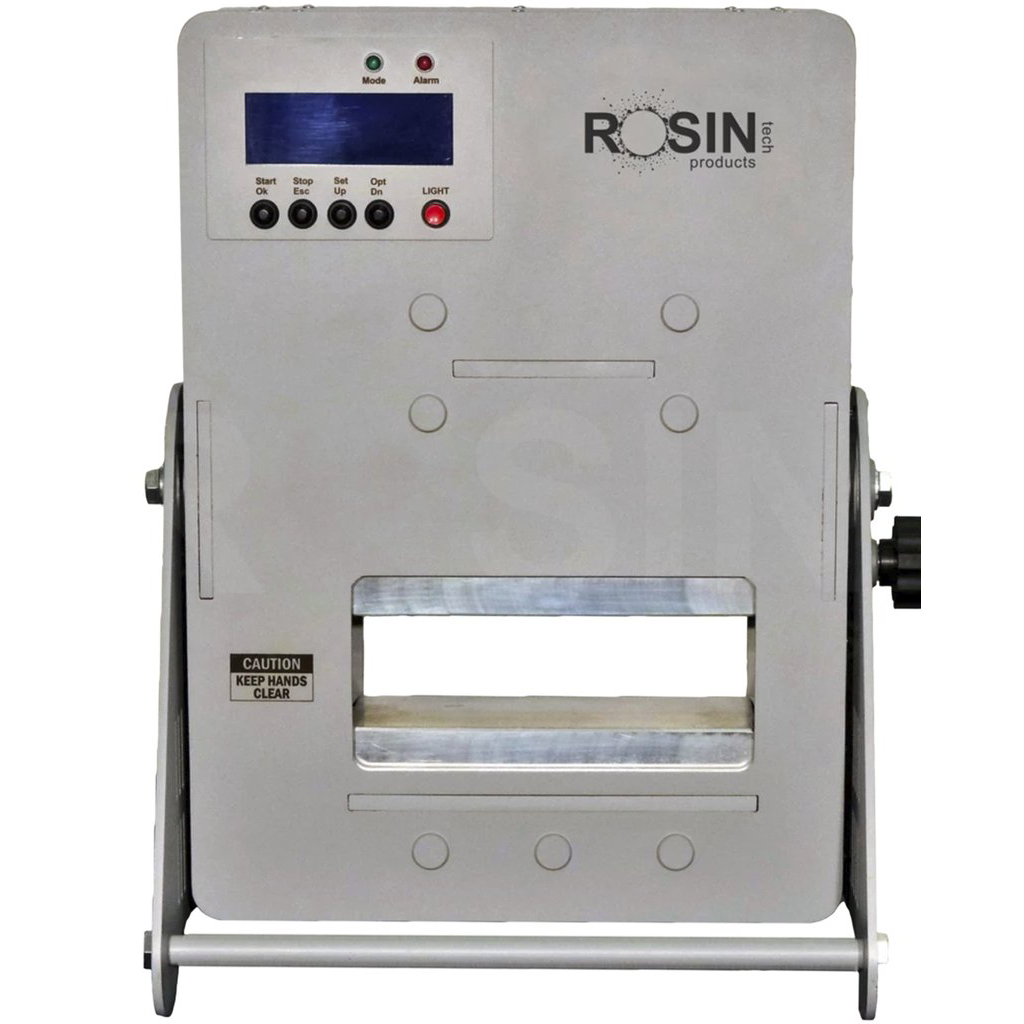

Rosin Tech Precision Rosin Press

$5,995.00$6,699.00

  • Custom Arduino controller
  • Helps to control the amount of pressure applied
  • Digital pressure read out force exertion
  • Industrial hydraulic press exerts 21.5 Tons
  • Heats up to 300°F

Plant Based Pros is an Authorized Retailer of Rosin Tech Products.

Items purchased from Plant Based Pros:

  • Are brand new and in original packaging.
  • Are covered by the full manufacturer warranty.
  • Qualify for manufacturer service and support.
  • Questions? Call  800-522-0517
Clear
SKU: N/A Category: Tag:

Description

Precision Rosin Press is packed with features to give the operator control over every element of rosin production. Our custom Arduino controller allows you to not only set your length of press and your plate temperatures, but also the amount of pressure applied. As you press, watch a digital pressure read out showing you exactly how much force you are exerting on your material as you go. This is key, as controlling the amount pressure applied is very important for maximizing yields and preventing blowouts.

Body

We start our process with precision laser cutting of premium steel. All cuts are controlled with precise programming providing unmatched quality and precision. The structural components are precisely welded with our state of the art automated welding system. Once the press body is complete it goes in for powder coat paint and bakes in the oven, providing a durable and lasting finish.

Pressure and Safety

The Precision Rosin Press is manufactured with CE and ISO standards and we take operational safety very seriously. Keeping in mind that Precision Rosin Press is a industrial hydraulic press that exerts 21.5 Tons (Calibrated to our ram diameter and plate size) of pressure and heats up to 300F, we implemented industry leading safety features. At 21.5T Pressure an alarm will go off indicating to stop pressing and that structural damage may occur if it increased pressure continues. The control panel will also notify users when plates reach desired temperatures and are ready for pressing.

Heating

The Precision Rosin Press is built to function with temperatures up to 300 °F, providing one of the highest max temps available on today’s market. The aluminum plates are coated with food grade material to prevent a natural blackening effect from occurring, while simultaneously increasing the heating plates life. Software will control the heating elements of each individual plate, and our state of the art algorithm will automatically adjust top and bottom plate temperatures by taking into account readings from both plates and outside physical changes that alter plate temperatures.

Controller

We wanted programming flexibility and the ability to upgrade a device for a longer shelf life. We decided to do away with pre-manufactured controllers and introduce an Arduino based controller to the Rosin Community. This USB updatable controller brings flexibility and innovative options to your production process. One of the new features is our timer is activated when a selected tonnage is reached. This will allow you to provide detailed instructions to your staff and they will be able to accurately reproduce all of the conditions (pressure, temperature and time) every time they press.

The Rosin Tech Precision Rosin Press is a commercial grade hydraulic rosin press that’s capable of anything you’re willing to throw at– this is all thanks to the 21.5 tons of pressure  it can put out and the large 10″ x 4″ plates we’ve given it. Not only are you assured of a high-quality product, but you’re also producing more yield in less time.

The Precision Rosin Press is built to function with temperatures up to 300 °F, providing one of the highest max temps available on today’s market. The aluminum plates are coated with food grade material to prevent a natural blackening effect from occurring, while simultaneously increasing the heating plates life.

Software will control the heating elements of each individual plate, and our state of the art algorithm will automatically adjust top and bottom plate temperatures by taking into account readings from both plates and outside physical changes that alter plate temperatures.

Other great features are the live pressure gauge so you can see how much you press and the angled construction allowing directional flow for rosin to easily drip and collect.

Product Specifications

Heat press type: Hydraulic
FeederHydropneumatic
Maximum pressure21.5 tons
Airline pressure7-8 bar
Maximum heating temperatureup to 300 F (150º C)
Double heatingTop and bottom plates
Dimensions of the heated plate10 х 4 х 1.5 in
Plate materialAluminum
Temperature accuracy5º F
Timer set range1 min – 99 min
Temperature unitsDegrees Fahrenheit / Celsius
Electrical rating~120 V | 1,000 W | 8.3 A
Package size (WxHxD)11 х 21 х 22 in
Net weight118 lb
Gross weight137 lb
All our presses have a one year warranty. During this period of time we will change any spare part that may have arrived badly from factory without cost. In case it is not possible to repair  the machine and it is necessary to return it, we will bear the shipping costs and send you a new one.

Additional information

Optional Accessories

Rosin Press Only, with additional Foot Pedal Upgrade, with additional Electric Station Upgrade, with Foot Pedal and Electric Station Upgrade
