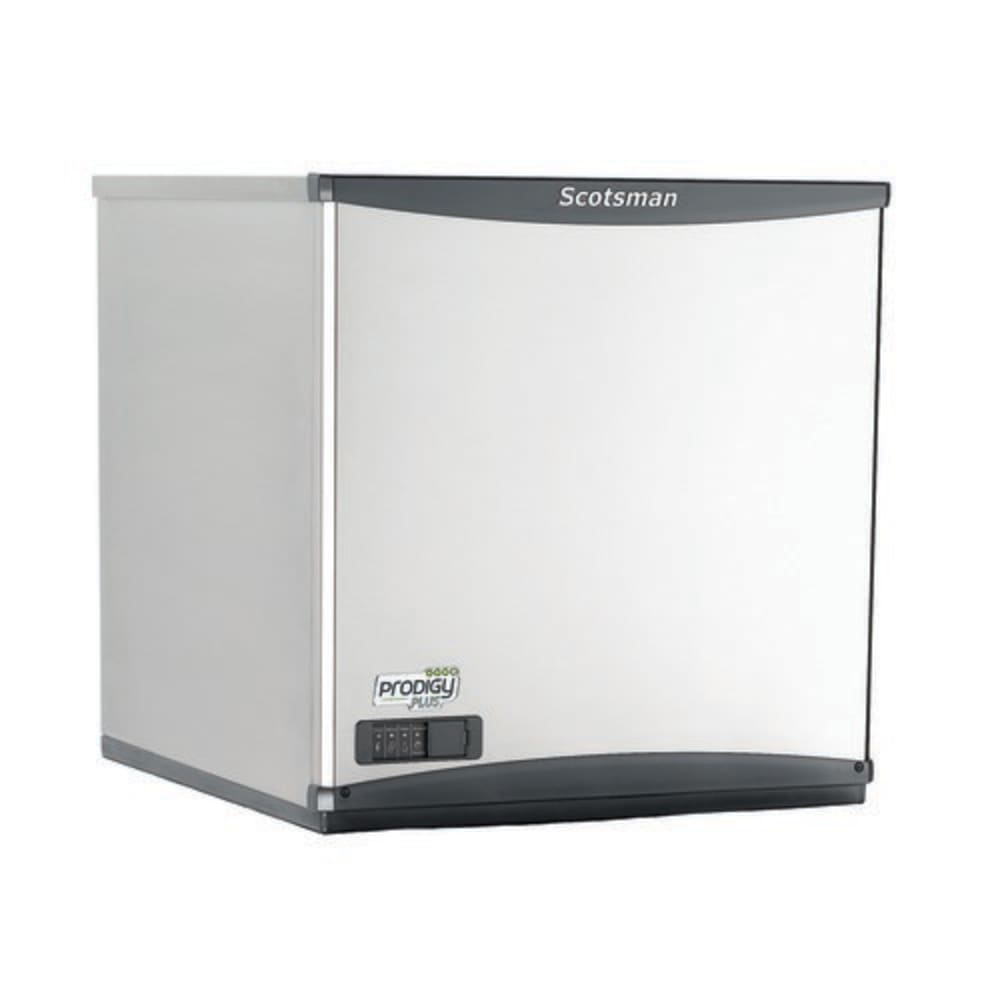

Scotsman NH0422W-1 22″ Prodigy Plus Nugget Ice Machine Head – 441 lb/24 hr, Water Cooled, 115v

For installation atop an ice bin, this Scotsman NH0422W-1 Prodigy Plus ice maker measures 22.70 inches wide by 24.92 inches deep by 23 inches high and has a self-contained, water-cooled condenser. To withstand heavy-duty, long-term use, the evaporator and auger are stainless steel-a rigid, corrosion-resistant metal-and the unit has a stainless steel finish that creates a sleek look. AgION antimicrobial protection is built into internal components to slow bacterial growth between cleanings.

The Scotsman NH0422W-1 ice machine head produces 441 pounds of H² nugget ice in 24 hours when incoming water is 50 degrees Fahrenheit and ambient air is 70 degrees Fahrenheit. H² nugget ice has a harder consistency than original chewable ice and is ideal for fast food beverages because it has a greater drink displacement than dice cubes. This water-cooled unit uses R-404A refrigerant, and its sealed refrigeration system helps protect product from airborne particulate contamination. AutoAlert indicator lights are built into a visible location so operators can track status and maintenance requirements.

Product Details

• Compatible with an ice bin (sold separately)
• 441-lb. daily ice production
• 378-lb. AHRI-certified daily ice production
• Produces H² nugget ice
• Ice dimensions: 0.75 in. x 0.31 in. x 0.38 in.
• Self-contained, water-cooled condenser
• R-404A refrigerant
• Front-breathing configuration
• Stainless steel auger and evaporator resist corrosion
• Stainless steel finish
• Low-maintenance bearings are sealed
• Sealed refrigeration system
• AutoAlert lights
• AgION antimicrobial protection
• 1-touch cleaning system
• Removable, front-facing air filter
• Includes unit-specific QR code
• Required operating air temperature: 50-100 degrees F
• Required operating water temperature: 40-100 degrees F
• Required operating water pressure: 20-80 PSIG
• 5,000 BTU per hour

Dimensions & Utilities

• 22.70 in. W x 24.92 in. D x 23 in. H
• 12.1 A, 3.92 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Prodigy Plus Ice Maker, nugget style, H2 Nugget Ice, water-cooled, self-contained condenser, production capacity up to 441 lb/24 hours at 70°/50° (378 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 12.1 amps, NSF, cULus, engineered and assembled in USA
