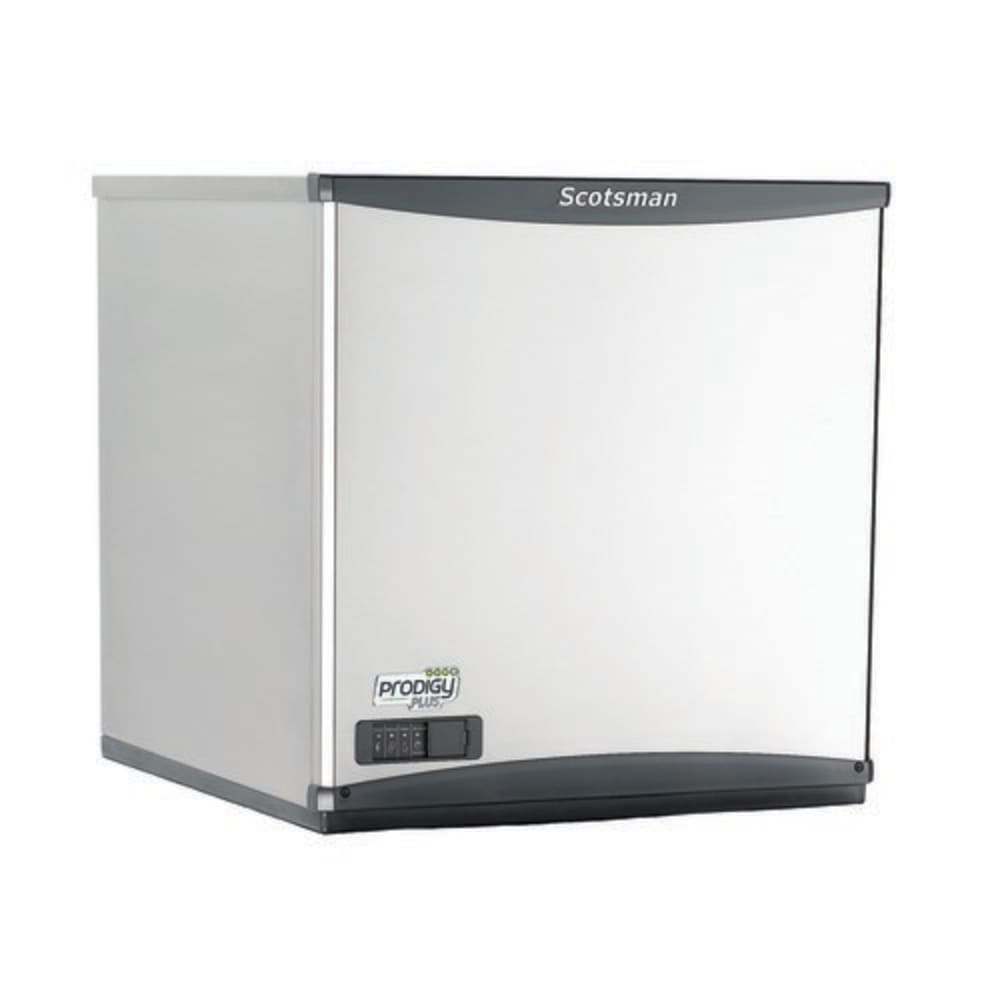

Scotsman NH0622W-1
The Scotsman NH0622W-1 nugget ice machine head is part of the Prodigy Plus series and includes a front-facing air filter for improved access, AutoAlert indicator lights for enhanced visibility, and a self-aligning front panel permits simple access to internal parts. The exterior, evaporator, and auger are all made of stainless steel that’s durable, resists rust, and won’t corrode over time. It makes H2 nugget ice, which is harder than original, chewable nugget ice.
In an ambient temperature varying from 70 to 90 degrees Fahrenheit and incoming water temperature between 50 and 70 degrees Fahrenheit, the Scotsman NH0622W-1 ice maker can produce 557 to 640 pounds of ice per day. For improved access to warranty information, manuals, and other machine documents, a unit-specific QR code is included on the front of the head. To enhance the quality of ice and reduce cleaning time, the food zone is made with antimicrobial protection, inhibiting the growth of bacteria and mold.
Product Details
- Part of the Prodigy Plus series
- Water cooled
- 640-lb. maximum daily ice production
- 557-lb. AHRI-certified daily ice production
- Produces H2 nugget ice
- Nugget ice size: 0.75 in. x 0.31 in. x 0.38 in.
- Stainless steel finish
- AutoAlert indicator lights for increased visibility
- Model-specific QR code provides access to manuals, care instructions, and warranty history
- Front-facing air filter for improved access
- Self-aligning front panel simplifies access
- Smart-Board expands diagnostic capabilities
- Antimicrobial protection with AgION guards
- Sealed refrigeration system prevents airborne contaminates from getting inside
- R-404A refrigerant reduces environmental impact
- Ice bin sold separately
Operating Requirements
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 7,100-BTU heat transfer capacity
Dimensions & Utilities
- 22.70 in. W x 24.92 in. D x 23 in. H
- 14.4 A, 3.8 kW
- 115 V/60 Hz/1 ph
From The Manufacturer
Prodigy Plus Ice Maker, nugget style, H2 Nugget Ice, water-cooled, self-contained condenser, production capacity up to 640 lb/24 hours at 70°/50° (557 lb AHRI certified to 90°/70°), sealed maintenance-free bearings, AutoAlert indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 14.4 amps, NSF, cULus, engineered and assembled in USA
*Image may not depict product color, inclusions or accessories.
