Description

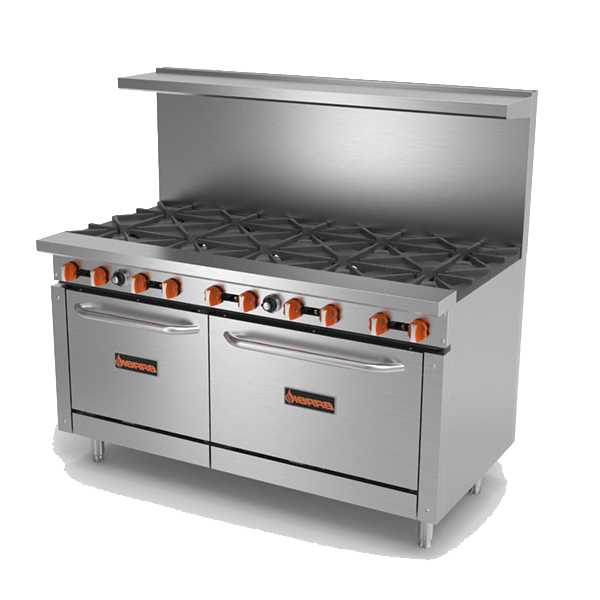

The Sierra Ranges feature an all-stainless steel interior and exterior construction, except for the porcelain oven decks and oven door liners which allow for the easiest clean-ups. The SR-10-60 has the flexibility to suit every operation. This range has 10-30,000 BTU heavy duty cast iron top burners and 2-32,000 BTU ovens, each accepting 18″ x 26″ sheet pans. The two independent ovens feature “U” type burners and temperatures are adjustable from 250°F (121°C) to 550°F (288°C)
Warranty: 12 months parts & labor.
Gas Connection: 3/4” NPT on the right hand rear of the appliance. The pressure regulator (supplied) is to be connected here by the installer.
Gas pressure: 5” W.C. – Natural Gas | 10” W.C. – Propane
Combustible Clearances: For use in non-combustible locations | Non-combustible Clearances: 0 inches sides, 0 inches rear
| MODEL NUMBER | SR-10-60 |
| EXTERNAL DIMENSIONS WxDxH | 60″ X 32.5″ X 50.75″ |
| OVEN DIMENSIONS (LEFT) WxDxH | 19.2″ X 26.4” X 14.2″ |
| OVEN DIMENSIONS (RIGHT) WxDxH | 26.6″ X 22.8″ X 14.2″ |
| NUMBER OF BURNERS | 10 TOP & 2 “U” OVEN BURNERS |
| BTU (EACH TOP BURNERS) | 30,000 |
| BTU (OVEN) | 32,000 |
| TOTAL BTU | 360,000 |
| NET WEIGHT | 650 LBS |
| SHIPPING WEIGHT | 725 LBS |
