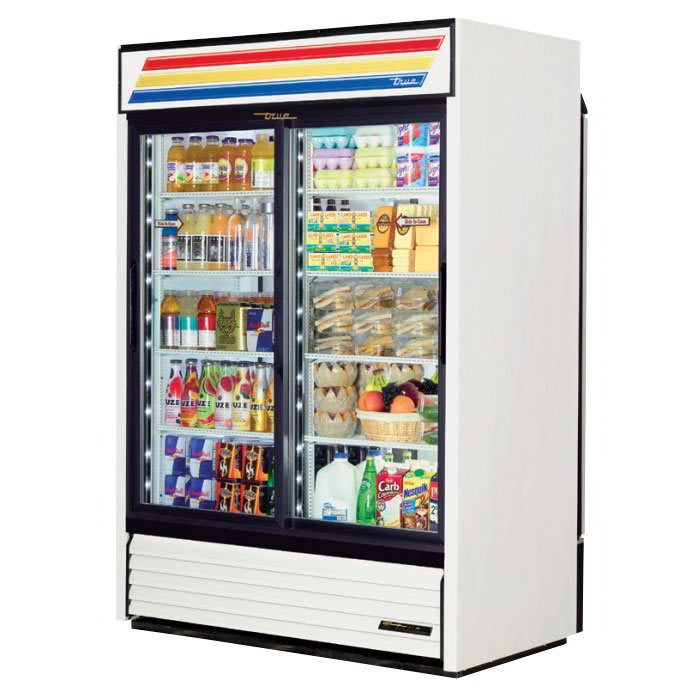

True Refrigeration GDM-47RL-HC-LD Description
Using R290 hydrocarbon refrigerant, the True GDM-47RL-HC-LD two-section glass door merchandiser keeps its cabinet temperature cool enough for refrigerated items. This type of refrigerant is environmentally friendly and maintains temperatures ranging from 33 to 38 degrees Fahrenheit. The fan motors in the evaporator and condenser are electronically commutated, reducing heat production and energy consumption while they distribute cold air throughout the cabinet. Since the condenser is in the bottom of the cabinet, it is more accessible than top-mounted systems. This position also elevates the floor to a comfortable height for product storage and access.
Inside the True GDM-47RL-HC-LD two-section glass door merchandiser, eight PVC-coated wire shelves hold and display product. Operators can adjust these shelves to accommodate different items. Made of white aluminum, the interior liner’s bright appearance is enhanced by LED lighting. The interior floor is constructed of stainless steel, which resists rusting and scratching. The unit’s exterior is white with a final coating that provides chip and peel resistance.
- 8 PVC-coated wire shelves can be adjusted in increments of 1/2 in.
- LED lights brighten the cabinet
- White aluminum interior liner is corrosion resistant and durable
- Stainless steel interior floor supports the cleanup process
- Coated exterior finish is white and strong for heavy use
- Illuminated sign panel on the exterior draws attention to the product
- Foamed-in-place polyurethane insulation enhances structure and retains cold air
Bottom-mount Refrigeration System
- Temperature range: 33-38 degrees F
- Uses R290 hydrocarbon refrigerant
- Electronically commutated evaporator and condenser fan motors consistently distribute air while producing little heat
- Condenser placement keeps components in an accessible position
- Elevates the cabinet to a comfortable height for product access
Pass-thru Door Design
- Front has 2 Low-E, double-pane glass doors that slide open for convenient customer access
- Rear has 2 doors that swing open for operators to stock product
- 12-in. door handles on the front
- Recessed door handles on the rear do not protrude into the aisle
- All doors have a self-closing design that keeps cold air in the cabinet

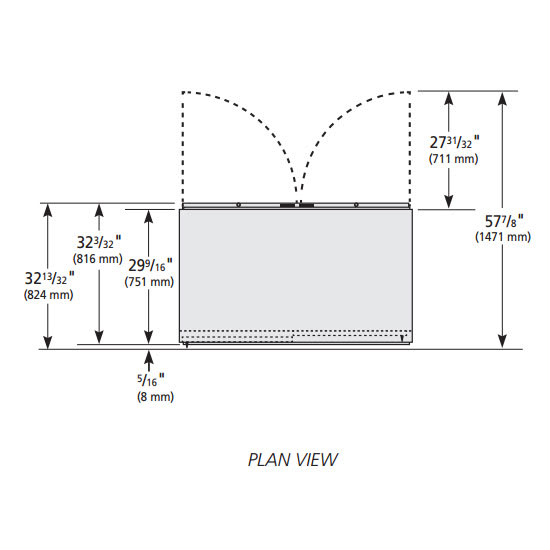

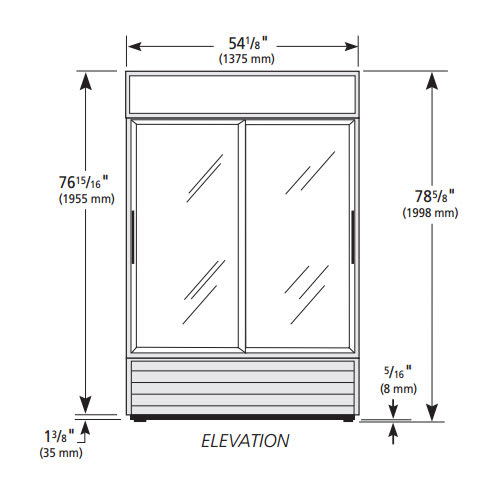

Dimensions & Utilities
- Shelves: 247/16 in. W x 209/16 in. D
- Overall: 541/8 in. W x 321/2 in. D x 785/8 in. H
- 8.5 A, 1/2 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
Refrigerated Merchandiser, pass thru, two-section, (8) shelves, (2) front Low-E thermal glass sliding doors, (2) rear solid doors, LED interior lights, powder coated steel steel exterior, white aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 8.5 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
