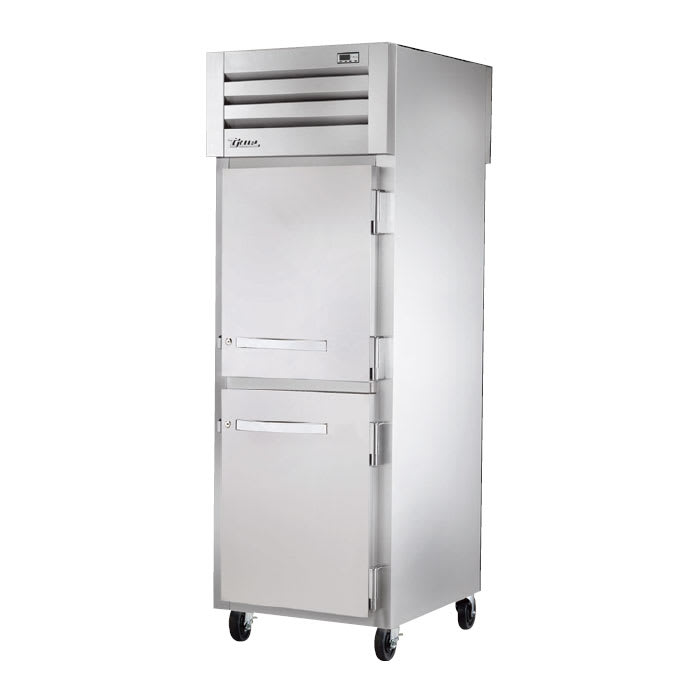

True STA1RPT-2HS-1G-HC 27 1/2″ One Section Pass Thru Refrigerator, (2) Right Hinge Solid Doors, 115v

$8,452.19$8,652.19

  • Part of the Spec Series
  • Front, sides, ceiling, floor, and doors are stainless steel to withstand heavy use
  • Interior walls are aluminum for corrosion resistance
  • Dense polyurethane insulation creates structure and retains cold air
  • 3 chrome-plated shelves with a wire design that promotes airflow
  • Staff can see temperatures on the exterior
  • Electronic controls
  • Interior LED lighting provides visibility
  • 5-in.-dia. castors enable movement
  • Front 2 castors lock for stability
Clear
SKU: TrueSTA1RPT-2HS-1G-HC Category:

Description

True Refrigeration STA1RPT-2HS-1G-HC Description

The True STA1RPT-2HS-1G-HC Spec Series pass-thru refrigerator has two half doors on the front and a glass rear door to speed up the flow of service in a restaurant. All three doors close by themselves but stay open past 120 degrees for loading and unloading. Their magnetic gaskets are constructed of a single piece and can be removed without additional tools. Product is protected from theft with a bolt-style lock, and the contents are lit by LED lighting for full visibility.

Several different features help the True STA1RPT-2HS-1G-HC pass-thru refrigerator keep its contents at cold temperatures. Condenser fans and an evaporator push a consistent amount of air to ensure that items are evenly cooled, while chrome-plated wire shelves promote airflow throughout the cabinet. To lock in heat, polyurethane insulation is foamed in place in the cabinet walls. Magnetic door gaskets help eliminate cracks where heat can creep in around the door frames, and the rear glass door is thermal insulated.

The refrigeration system is mounted on top of the refrigerator to keep it from sucking in debris and dirt from the floor like bottom-mounted units, but this position forces the unit to work in a warmer environment. All the cooling components sit together in one place, which facilitates maintenance. A capillary tube system controls the flow of R290 hydrocarbon refrigerant, keeping temperatures between 33 and 38 degrees Fahrenheit.

Product Details

  • Part of the Spec Series
  • Front, sides, ceiling, floor, and doors are stainless steel to withstand heavy use
  • Interior walls are aluminum for corrosion resistance
  • Dense polyurethane insulation creates structure and retains cold air
  • 3 chrome-plated shelves with a wire design that promotes airflow
  • Staff can see temperatures on the exterior
  • Electronic controls
  • Interior LED lighting provides visibility
  • 5-in.-dia. castors enable movement
  • Front 2 castors lock for stability

Pass-thru Doors

  • 2 solid, half-size doors on the front
  • 1 glass, full-size door on the back
  • Glass door is double paned and thermal insulated
  • Equipped with bolt locks and sturdy handles
  • Self-closing door and magnetic gaskets prevent cold-air loss
  • 1-piece gasket can be removed for cleanup
  • Stay-open mechanism keeps the doors at 120 degrees when loading and unloading product

Refrigeration System

  • Temperature range: 33-38 degrees F
  • Capillary tubes control the R290 refrigerant flow
  • Evaporator and condenser fans create consistent airflow
  • Epoxy coating on the evaporator provides rust protection
  • Top-mounted refrigeration system sits away from dust and debris on the floor

Dimensions & Utilities

  • 271/2 in. W x 397/16 in. D x 843/8 in. H
  • 3.8 A, 1/4 HP
  • 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

SPEC SERIES Refrigerator, pass-thru, one-section, (2) stainless steel half doors front, (1) glass door rear, locks, cam-lift hinges, digital temperature control, (3) chrome shelves, LED interior lights, stainless steel front & sides, aluminum interior, 5″ castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 3.8 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
