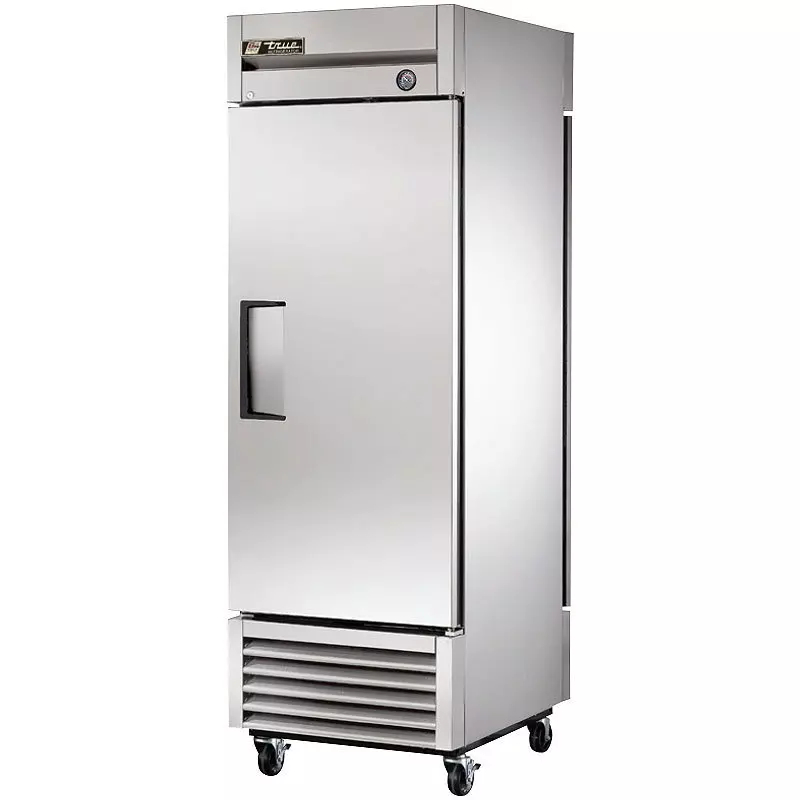

True T-23PT-HC One Section Pass Thru Refrigerator


  • Refrigerator, Pass-thru, One-section
  • (1) stainless steel door front & rear
  • Interior lighting
  • Stainless steel front & rear
  • Aluminum sides, aluminum interior with stainless steel floor
  • 4″ Castors
  • R290 Hydrocarbon refrigerant
  • 1/4 HP, 115v/60/1-ph, 2.2 amps, NEMA 5-15P
  • CE, cULus, UL EPH Classified, ENERGY STAR
  • Made in USA

Plant Based Pros is an Authorized Retailer of True products.

Items purchased from Plant Based Pros:

  • Are brand new and in original packaging.
  • Are covered by the full manufacturer warranty.
  • Qualify for manufacturer service and support.
  • Questions? Call  800-522-0517


The T-23PT-HC pass-thru refrigerator has a door on each side, enabling it to be used on a serving in a first-in-first-out inventory program. Solid doors are built with rugged stainless steel exterior fronts and aluminum interior liners that match the rest of the interior. Each door is mounted on a torsion-type system that closes automatically so it cannot be left open. Door gaskets provide a positive seal and are removable without tools for cleaning.

The True T-23PT-HC refrigerator is insulated with high-density polyurethane insulation that has been foamed in place to create structure. Product can be stored on three adjustable, PVC-coated shelves that resist corrosion and include support pilasters, while LED interior lights shine on product for full visibility. This unit is approved to hold open food product, and it typically holds food within a range of 33 to 38 degrees Fahrenheit temperature, which can be seen on the external display.

Product Details

  • Pass-thru design enables the product to be stocked from one side and retrieved through the other
  • Stainless steel exterior front with aluminum ends and top
  • Aluminum interior has a clear-coat, stain-resistant liner
  • Stainless steel floor has coved corners to ease cleaning
  • Foamed-in-place polyurethane insulation stabilizes the cabinet
  • Heavy-duty black steel frame rail strengthens the cabinet
  • 4-in. castors are fitted to frame rail to mobilize the unit
  • Door is finished with a stainless steel exterior and an aluminum liner to match cabinet interior
  • Recessed door handles are foamed in place with sheet metal interlock for permanent attachment
  • Self-closing doors are mounted on torsion-type closure system
  • 1-piece magnetic door gasket removes without tools for cleaning
  • 3 gray, PVC-coated shelves are included, each measuring 2278 in. L x 2314 in. W
  • Shelves are mounted to aluminum pilasters on chrome-plated clips and adjustable in 12-in. increments
  • Interior incandescent lighting is safety shielded to prevent breaking
  • cULus and UL-EPH listed; ENERGY STAR certified
  • Made with innovation in the U.S.

Bottom-mount Refrigeration System

  • Exterior dial displays interior temperatures
  • Condenser and evaporator fan motors move a consistent amount of air
  • Capillary tube system facilitates temperature recovery
  • Uses R290 hydrocarbon refrigerant
  • Temperature range: 33-38 degrees F
  • Epoxy-coated, corrosion-resistant evaporator
  • Bottom-mounted condensing unit is located in the coolest part of the kitchen
