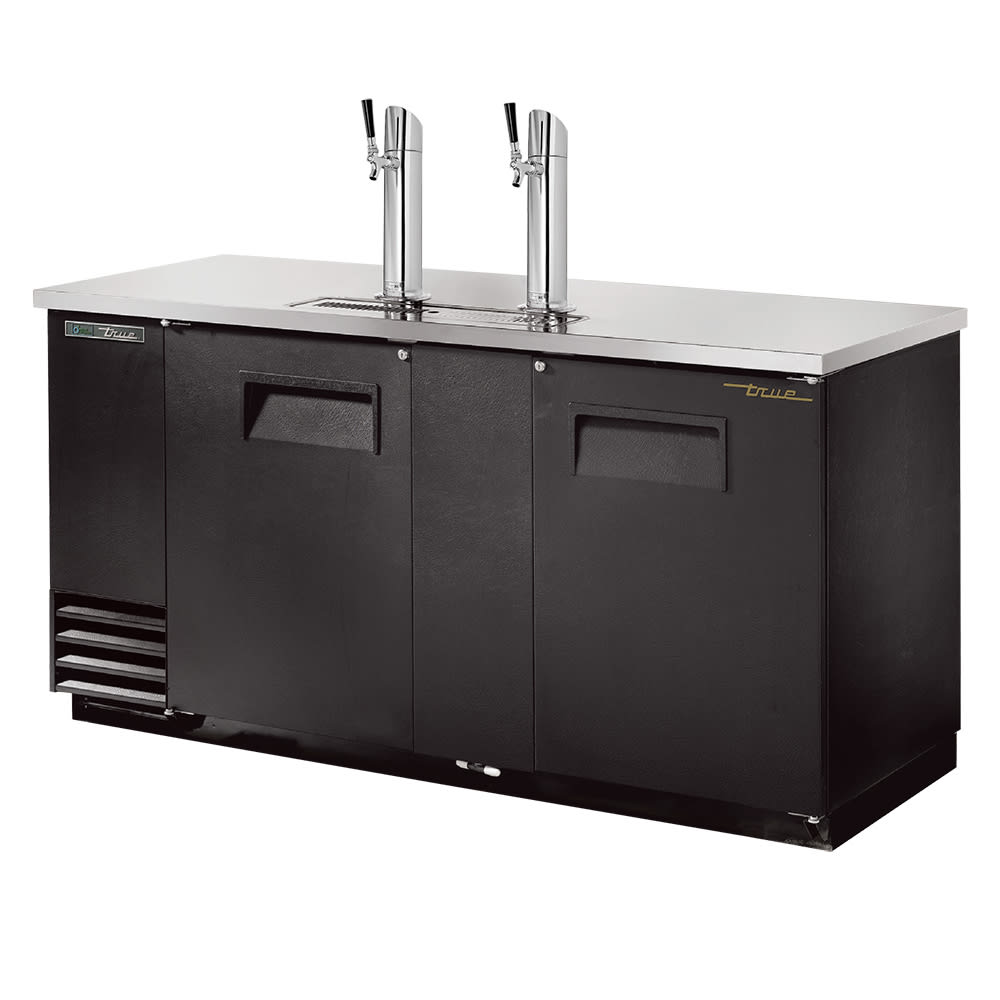

True TDD-3-HC 69″ Draft Beer System w/ (3) Keg Capacity – (2) Columns, Black, 115v

$3,025.94$3,225.94

  • 3 half-barrel keg capacity
  • 2 stainless steel towers are insulated
  • Can see in the cabinet with LED interior lights
  • 2-way tapper manifold connects the CO2 line to the beer lines
  • 12-in. barbed T-drain fitting
  • Removable front grill provides access to the refrigeration system
  • R290 hydrocarbon refrigerant is used by the capillary tube system
  • Temperature holding range: 33-38 degrees F
  • Epoxy-coated evaporator resists corrosion
Clear
SKU: TrueTDD-3-HC Category:

Description

True Refrigeration TDD-3-HC Description

The True TDD-3-HC draft beer system can house three half-barrel kegs in its galvanized steel interior, and internal damage is prevented with the 12-inch reinforced lip and door threshold protector. To dispense two different kinds of beer at a time, this unit has two insulated beer towers, and a two-way tapper manifold connects the beer lines to the carbon dioxide line. As cold air flows into the tower, beer is dispensed with minimal foaming.

Kegs are kept at a set temperature between 33 and 38 degrees Fahrenheit with a capillary tube system and R290 hydrocarbon refrigerant. Polyurethane insulation and door gaskets help contain the cold temperatures, while fans consistently circulate air, cooling products evenly. The evaporator is coated in epoxy to resist corrosion, and the front grill removes for convenient access to the refrigeration system. To resist chipping and peeling, the True TDD-3-HC draft beer system has a black vinyl exterior.

Product Details

  • 3 half-barrel keg capacity
  • 2 stainless steel towers are insulated
  • Can see in the cabinet with LED interior lights
  • 2-way tapper manifold connects the CO2 line to the beer lines
  • 12-in. barbed T-drain fitting
  • Removable front grill provides access to the refrigeration system
  • R290 hydrocarbon refrigerant is used by the capillary tube system
  • Temperature holding range: 33-38 degrees F
  • Epoxy-coated evaporator resists corrosion

Durable Construction

  • Black laminate vinyl exterior resists chipping and peeling
  • Stainless steel floor has a 12-in. reinforced lip
  • Door threshold protector minimizes interior damage
  • Polyurethane insulation holds cold air in the cabinet
  • Galvanized steel interior is heavy duty
  • Steel frame rail increases structural strength
  • 2 doors have 12-in. recessed handles
  • Gaskets around the doors prevent warm air from entering
  • Door locks reduce tampering and theft

Dimensions & Utilities

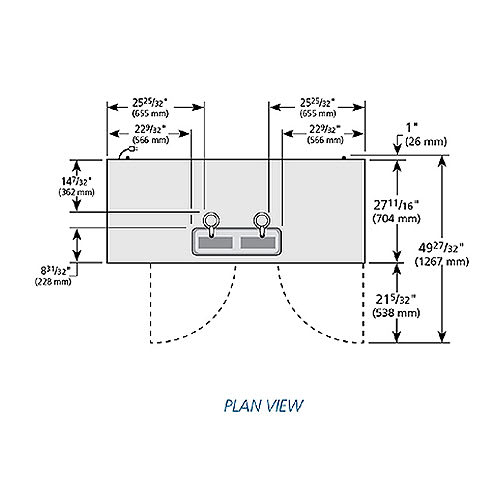

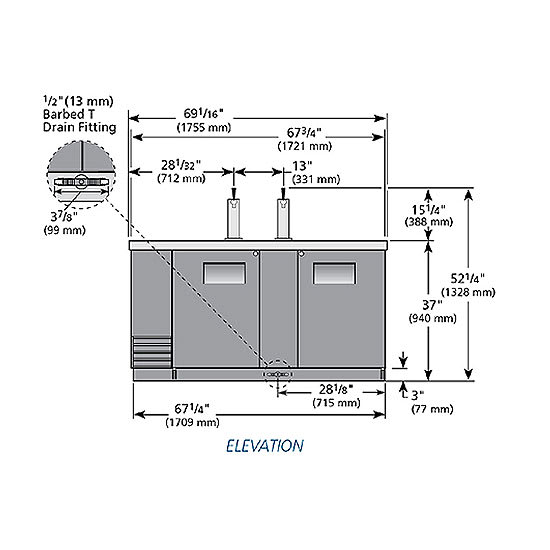

  • 69116 in. W x 281116 in. D x 5234 in. H
  • 2.8 A, 14 HP
  • 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

Draft Beer Cooler, (4) 1/2 keg capacity, stainless steel counter top, (3) solid hinged doors with locks, (2) 3″ dia. insulated beer columns with single faucet draft arm, black vinyl front & sides exterior, aluminum back, galvanized interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.8 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA, ENERGY STAR®

Documents:

Additional information

Delivery Options

Commercial No Lift Gate, Commercial Lift Gate, Residential Lift Gate
