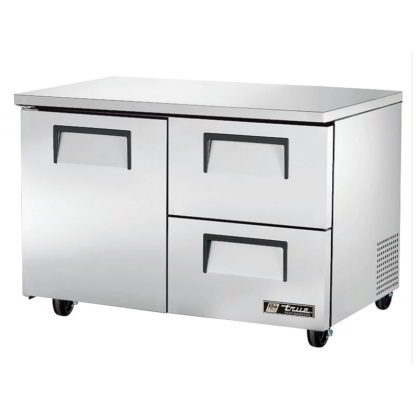

The doors and drawers in the True TUC-48D-2-HC undercounter refrigerator are fitted with 12-inch-long recessed handles, foamed in place with a sheet metal interlock to ensure permanent attachment. It has a magnetic drawer and one-piece door gaskets that can be removed without tools to facilitate cleaning. The heavy-duty, stainless steel drawer slides and rollers are also removable without tools.
The positive-seal doors have self-closing and 90-degree stay-open features and swing within the cabinet dimensions. The entire cabinet structure, solid door, and drawer facings are foamed in place with high-density polyurethane insulation. Locks are equipped on the front set of the 5-inch-diameter stem castors. The work surface height measures 36 inches.
This True TUC-48D-2-HC undercounter refrigerator operates at a set temperature between 33 and 38 degrees Fahrenheit. Operators can set this level to suit their application. Guided airflow in the unit ensures the temperature is even throughout the cabinet. The refrigeration system uses R290 hydrocarbon refrigerant-more environmentally friendly than traditional refrigerants.
- 2 drawers and 1 cabinet section
- Drawers each accommodate (1) 12 in. L x 18 in. W x 6 in. D food storage box, or 1 third-size and 1 half-size pan (items sold separately)
- 2 shelves in door section
- Doors and drawers are fitted with 12-in. long recessed handles, foamed in place with sheet metal interlock to ensure permanent attachment
- Stainless steel exterior and clear aluminum liner in the door
- Stainless steel exterior facings and liners with stainless steel frames on the drawers
- Magnetic drawer and door gaskets have a 1-piece construction, removable without tools for swift cleaning
- Heavy-duty, stainless steel drawer slides and rollers can be removed without tools to simplify cleaning
- Positive-sealing doors swing within the cabinet dimensions
- Doors self-close and stay open past 90 degrees so users can stock product
- Entire cabinet structure, solid door, and drawer facings are foamed in place with high-density polyurethane insulation
- Locks equipped on the front set of 5-in.-diameter stem castors keep the unit in place
- 36-in. work surface height
- Stainless steel ends, top, and front
- Corrosion-resistant, GalFan-coated steel back
- Interior is lined with NSF-approved, clear-coated aluminum
- Stainless steel floor with coved corners
- Door or drawer assemblies can be located in any section of the cabinet.
- Location of door/drawers must be indicated at time of ordering.
Self-contained Refrigeration System
- Condenser fan motors and evaporator reduce energy consumption and heat generation by moving a consistent volume of air
- Refrigeration system maintains product temperatures with guided airflow
- Evaporator is coated in epoxy to reduce the risk of corrosion
- Cabinet rear slides out for simple maintenance of the condensing unit
- Eco-friendly R290 hydrocarbon refrigerant
- Temperature holding range: 33-38 degrees F
Dimensions & Utilities
- Shelves: 219/16 in. W x 16 in. D

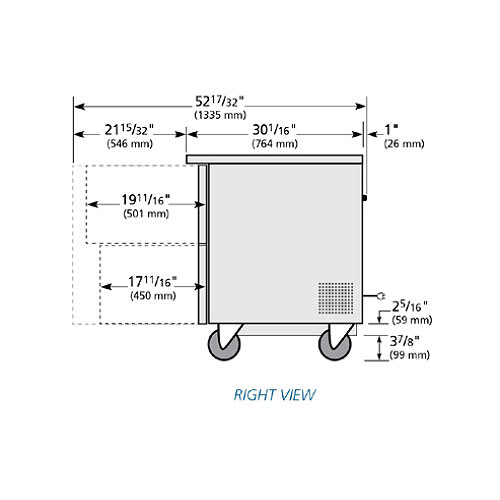

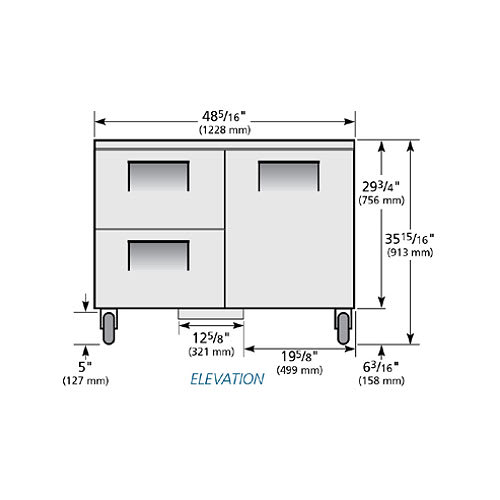

- Overall: 485/16 in. W x 311/16 in. D x 3515/16 in. H
- 3 A, 1/5 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
Undercounter Refrigerator, 33 – 38°F, (1) stainless steel door, (2) PVC coated adjustable wire shelves, (2) drawers each, accommodates (1) 12″ x 18″ x 6″ food pan (NOT included), stainless steel top & sides, aluminum interior with stainless steel floor, 5″ castors, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 3.0 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, Made in USA
