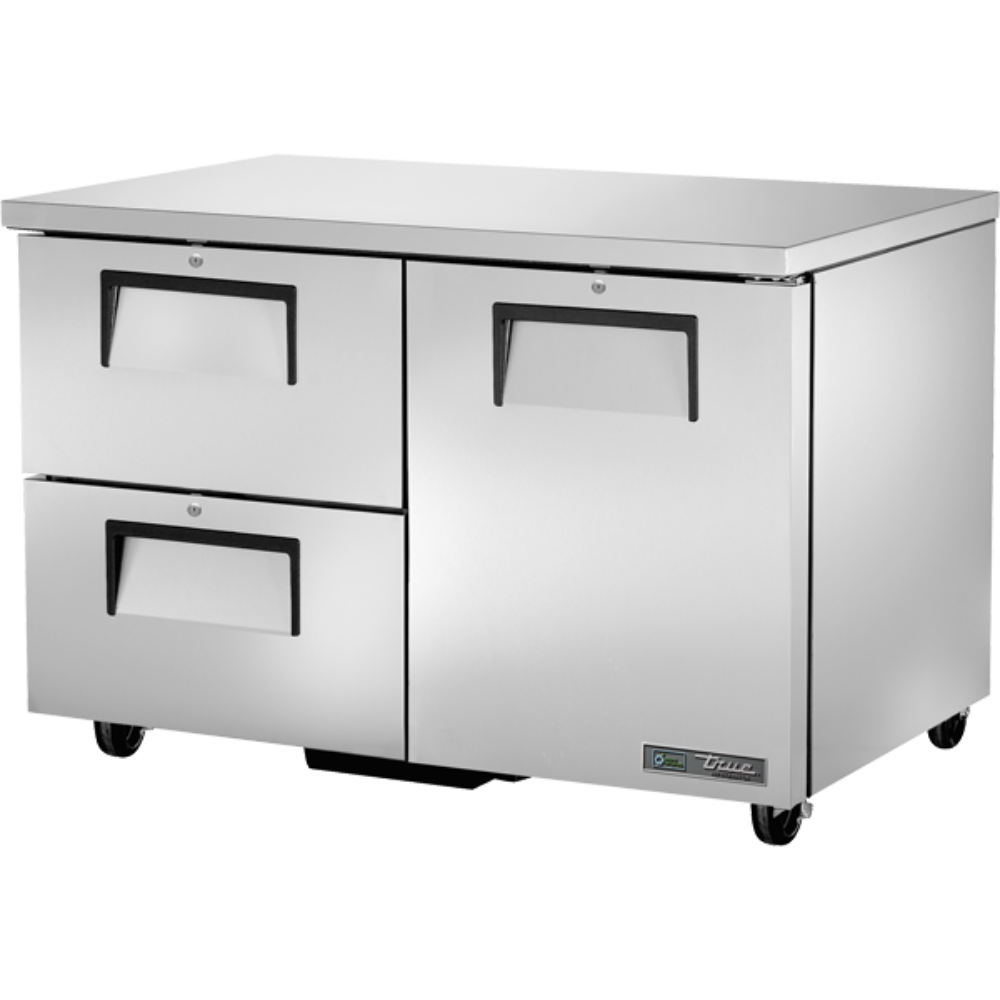

True TUC-48D-2-LP-HC 48″ W Undercounter Refrigerator w/ (2) Sections, (2) Drawers & (1) Door, 115v

The condensing unit in the True TUC-48D-2-LP-HC undercounter refrigerator has a convenient slide-out design and is accessible from the back of the cabinet. To provide uniform temperatures, the oversized refrigeration system is factory balanced with a guided airflow, while the capillary tube system uses eco-friendly R290 hydrocarbon refrigerant, maintaining temperatures between 33 and 38 degrees Fahrenheit. Operators can set the temperature at a level that best suits their application.

Because of its electronically commutated evaporator and condenser fan motors, this True TUC-48D-2-LP-HC undercounter refrigerator operates at high efficiencies and moves a consistent volume of air, which produces little heat and saves energy. Behind this unit’s door section, two adjustable shelves with a heavy-duty PVC coating hold stored items. The shelves measure 21⁹/₁₆ inches wide by 16 inches deep, and because they are wire, the shelves have gaps that encourage airflow and completely cool stored items. Both storage drawers are designed to hold a 12-inch-long by 18-inch-wide by 6-inch-deep food pan.

Product Details

• Low-profile, 31⁷/₈-in. work surface height
• 2 wire shelves in the door section are adjustable in ¹/₂-in. increments
• Shelves are coated in corrosion-resistant PVC
• 2 drawers each accommodate (1) 12-in. L x 18-in. W x 6-in. D food storage box or 1 third-size and 1 half-size pan (not included)
• Exterior is made of stainless steel on the front, top, and ends
• Corrosion-resistant, GalFan-coated steel exterior back
• Clear-coated aluminum liner on the interior is durable and streamlines cleanup
• Coved corners in stainless steel floor eliminate crevices that could harbor bacteria
• Foamed-in-place polyurethane insulation keeps cold air inside the cabinet
• Detachable, heavy-duty stainless steel drawer slides and rollers
• 12-in.-long, recessed handles are foamed in place with sheet metal interlocks
• Positive-seal door stays open past 90 degrees so users can stock the cabinet
• Door self-closes to retain cold air
• 1-piece magnetic drawer and door gaskets are removable without tools for cleaning
• 1¹/₂-in. diameter dual swivel castors enable movement
• Door or drawer assemblies can be located in any section of the cabinet.
• Location of door/drawers must be indicated at time of ordering.

Refrigeration System

• Clear condensing unit access is available at the back of the cabinet
• Condenser slides out for convenience
• Airflow path is guided, circulating cold air to produce even temperatures
• Environmentally friendly R290 hydrocarbon refrigerant
• Efficient, electronically commutated evaporator and condenser fan motors consistently move cold air while lowering energy consumption and heat production
• Evaporator is epoxy coated to eliminate potential for corrosion
• Temperature holding range: 33-38 degrees F

Dimensions & Utilities

• Shelves: 21⁹/₁₆ in. W x 16 in. D

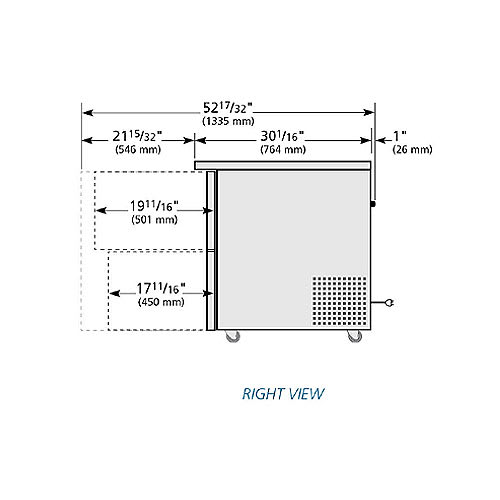

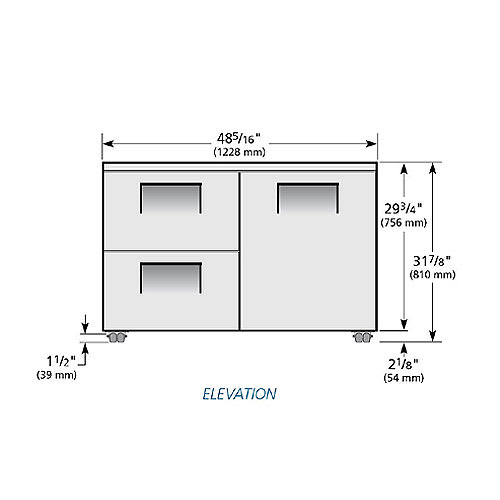

• Overall: 48⁵/₁₆ in. W x 31¹/₁₆ in. D x 31⁷/₈ in. H
• 3 A, ¹/₅ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

Low Profile Undercounter Refrigerator, 31-7/8″ counter height, 33 – 38°F, (1) stainless steel door, (2) shelves, (2) drawers each, accommodates (1) 12″ x 18″ x 6″ food pan (NOT included), stainless steel top & sides, clear coated aluminum interior with stainless steel floor, 1-1/2″ dual swivel castors, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 3.0 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, Made in USA
