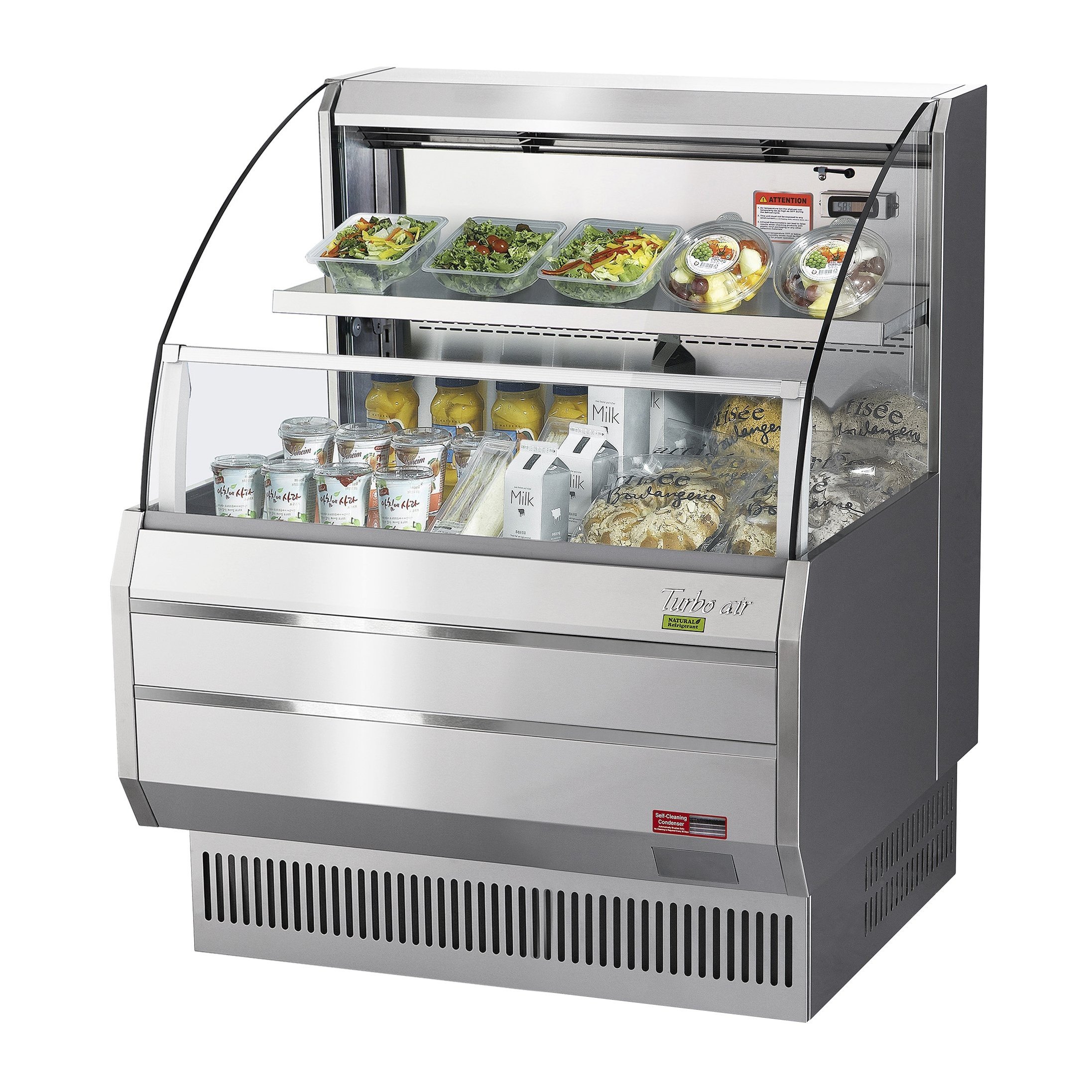

Turbo Air TOM-30LS-N Open Refrigerated Display Merchandiser


Please reach out to us for special pricing.

  • Horizontal open display case,
  • Stainless steel exterior
  • Self-Cleaning Condenser equipped, LED interior lighting, Stainless steel interior and solid flat shelves
  • Solar powered digital thermometer, Digital electronic thermostat with defrost control
  • Anti-corrosion coated evaporator
  • 5.1 cu.ft., 115v/60/1, NEMA 5-15P, 6.7 Amps, 1/3 HP
  • R-290 Natural Refrigerant

Plant Based Pros is an Authorized Retailer of Turbo Air products.

Items purchased from Plant Based Pros:

  • Are brand new and in original packaging.
  • Are covered by the full manufacturer warranty.
  • Qualify for manufacturer service and support.
  • Questions? Call  800-522-0517


Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have a very low contribution to global warming (ODP-0, GWP-3).

Modern design
By integrating great contours with durable structures, our modern style product designs are user-friendly while maintaining the highest product visibility and aesthetics. Safety reinforced tempered glass front shield optimizes the merchandiser’s display effects of fresh salads, sandwiches, desserts, and beverages. Its elegant contemporary euro design will enhance any store application. Ideal for eye-catching displays and convenient access with fast service in high traffic areas.

Standard Features

  • Simple plug-in installation
  • Patented self-contained system, no plumbing required
  • Solar powered digital thermometer
  • Digital electronic thermostat with defrost control
  • LED interior lighting
  • Standard back-guard improves airflow
  • 300 series stainless steel interior standard including back wall and deck pans
  • Stainless steel solid shelves standard
  • Perforated interior back wall & top for improved air flow
  • Foamed with polyurethane, high-density cell insulation (CFC free)
  • Front air intake and rear air discharge
  • Stainless steel exterior and interior

Recommended operating conditions
TOM models are designed to operate in an environment where temperature & humidity do not exceed 75°F and 55°F respectively. Units should not be reinstalled near HVAC vents, fans, or doorways that will disrupt the air curtain and compromise the function of the cabinet. Air curtain models will run most efficiently when completely loaded with product. When used as a built-in, required clearance for the rear is 4” and the top is 5”.

BrandTurbo Air
Capacity (Cu Ft)5.1
ColorStainless Steel
Compressor LocationBottom Mounted
Cord Length (inch)59 1/8
Horsepower (HP)1/3
Exterior MaterialStainless Steel
FeaturesSolar Digital Thermometer

LED Lighting

Self Cleaning Condenser

Interior Depth (Inch)24
Interior Height (Inch)17 1/2
Interior Width (Inch)25 1/2
Interior MaterialStainless Steel
Exterior Depth (Inch)34 5/8
Exterior Height (Inch)46 1/8
Exterior Width (Inch)28
Nema Plug5-15P
Number of Shelves1
Voltage (V)115
Weight (lbs)340
