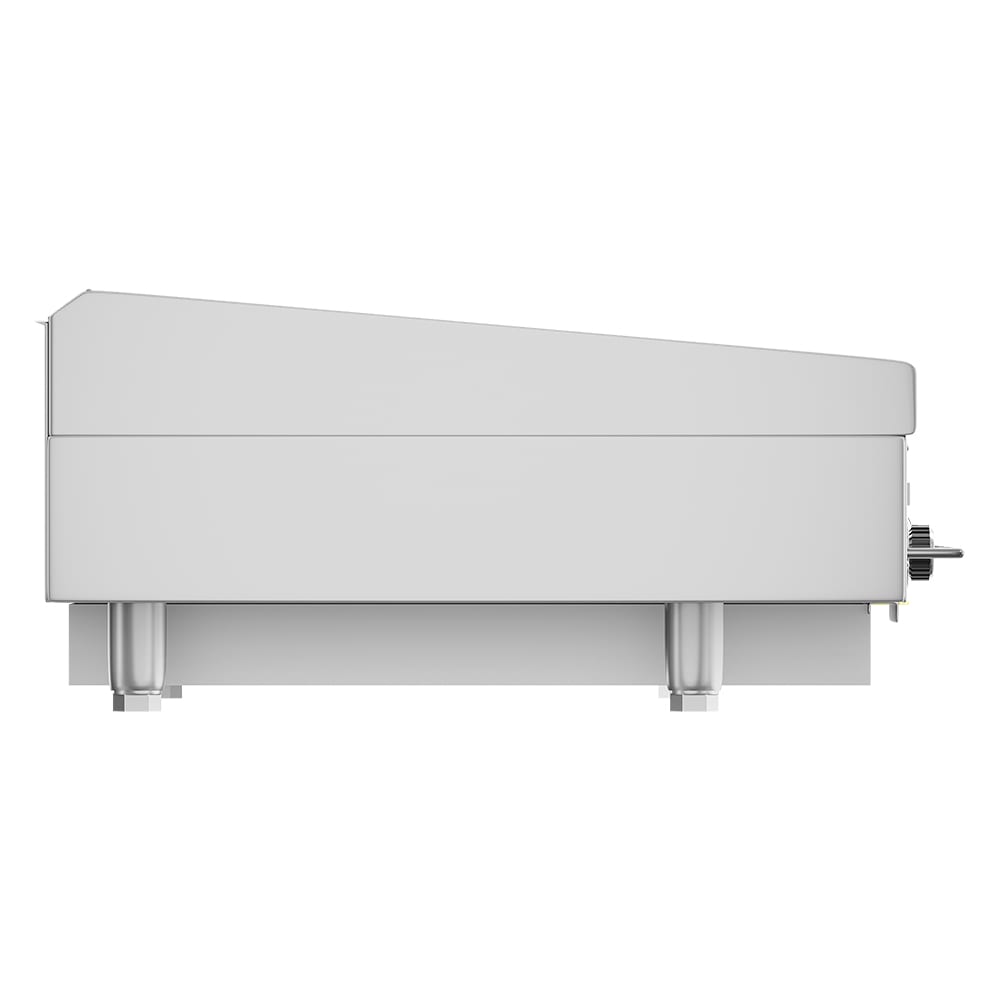

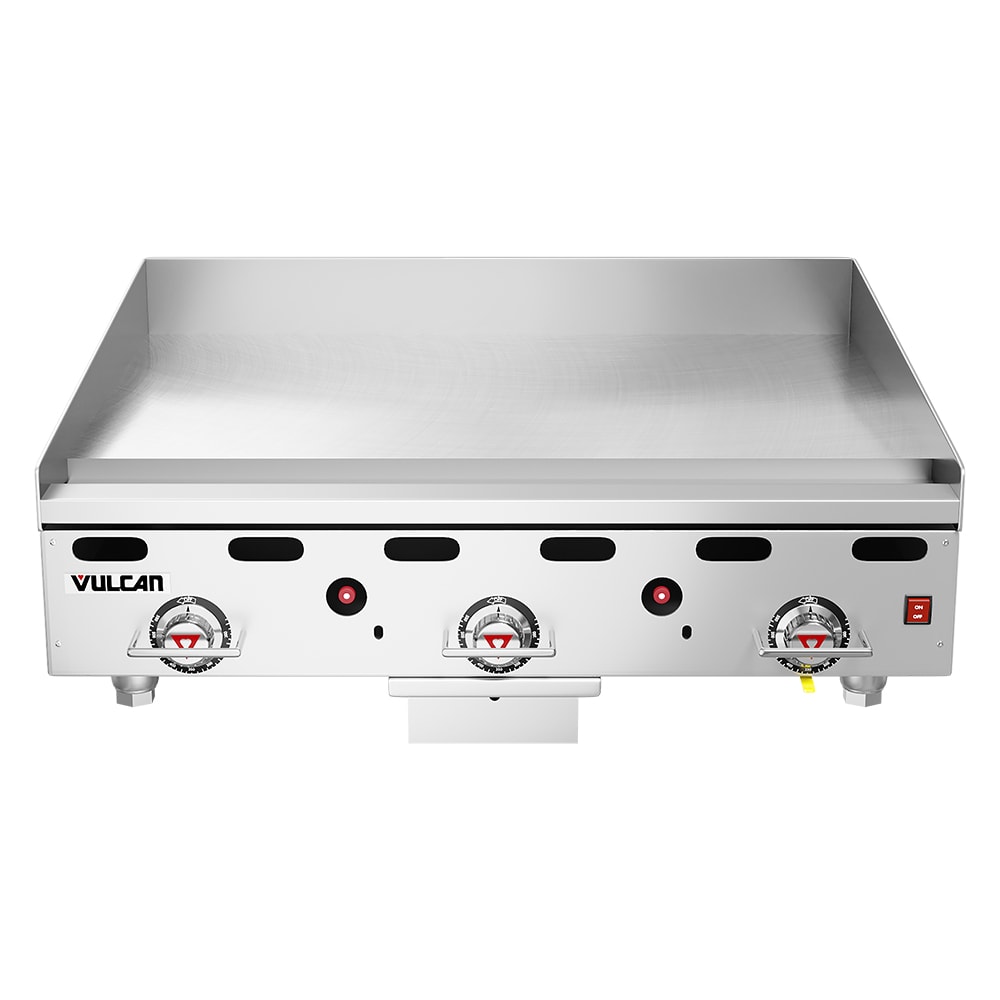

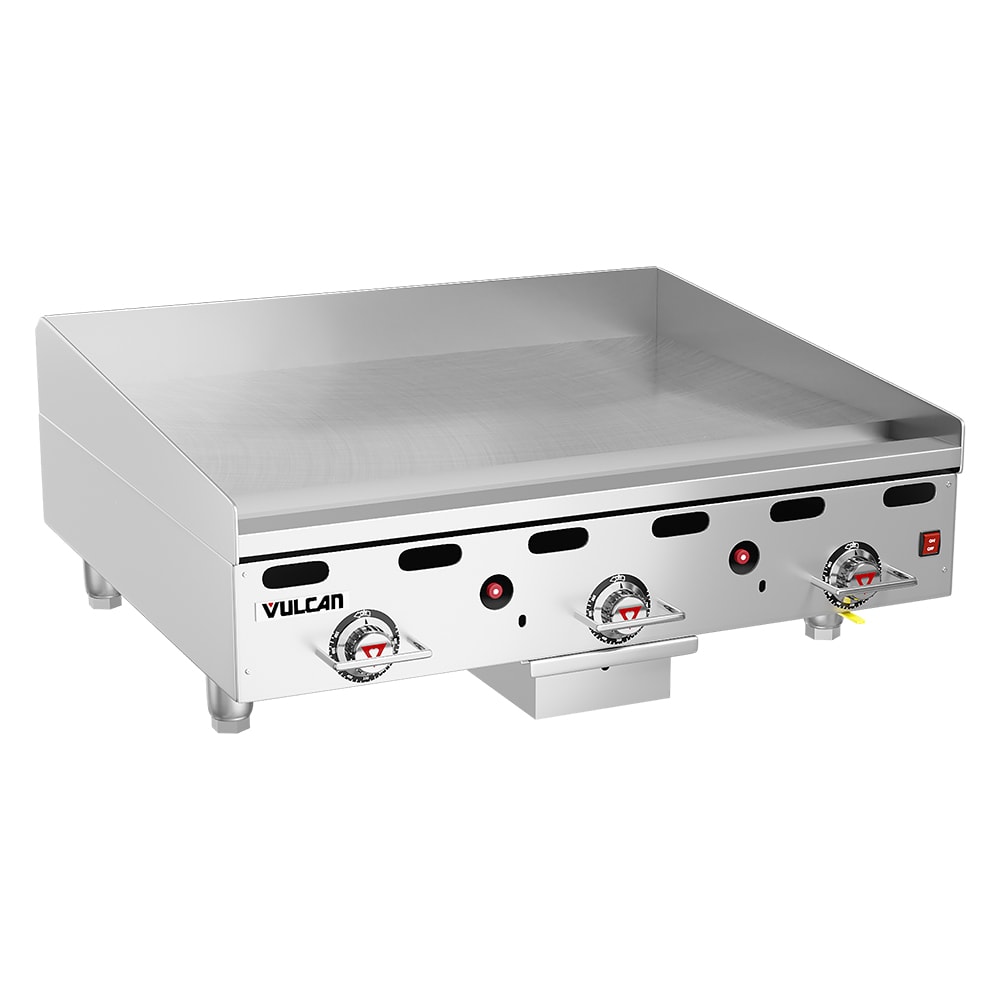

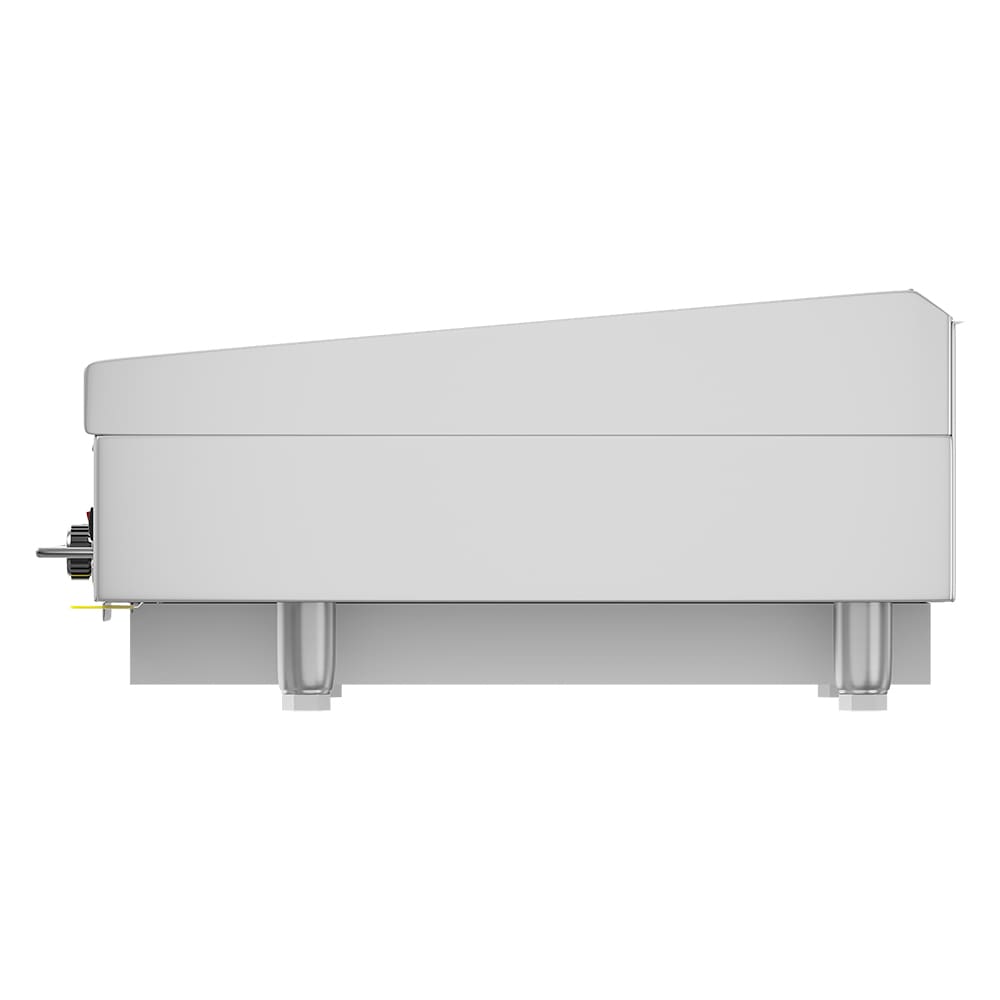

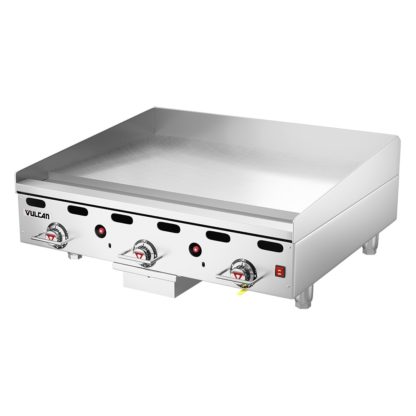

Vulcan 936RX-30 36″ Gas Griddle w/ Thermostatic Controls – 1″ Steel Plate

Made for heavy-duty use, the Vulcan 936RX-30 36-inch gas griddle is a great choice for high-volume kitchens. The countertop design enables flexibility in placement, and this griddle is equipped with three u-shaped burners that create separate cook zones. The burners can be lit with either the electric igniter or manually, while a pilot safety valve blocks gas flow in the event the pilot is extinguished. For additional safety, the gas inlet can be manually shut-off.

Embedded thermostats provide precise control of cooking temperatures across the Vulcan 936RX-30 36-inch gas griddle’s multiple cook surfaces. A wraparound splatter guard contains grease to the cooking area of the griddle, and excess grease can be simply scraped into the grease gutter on the end of the griddle. For streamlined storage, the gutter is connected to a welded chute that safely moves grease into the 6-quart grease shelf, and to provide stability, the griddle is supported by 4-inch adjustable legs.

Product Details

• Countertop model
• Front, sides, and front top ledge are durable stainless steel
• Temperature range: 200-550 degrees F
• 3 aluminized U-shaped steel burners enable separate cook zones
• Dual electric and manual burner ignition
• Gas flow is blocked by pilot safety valve if pilot is extinguished
• Individually controlled burners
• Manual gas inlet shut-off
• Embedded snap-action thermostats
• Chromed thermostat knob guards are heavy duty
• Stay-cool bull-nose design reduces burn risks
• Griddle plate is 1 in.-thick polished steel
• Wraparound splatter guard with tapered sides shield nearby surfaces
• 12-ga. backsplash is 4 in. high
• Spatulas fit into 3¹/₂ in.-wide gutter
• Grease migration prevented with fully welded chute and gutter
• 6-qt. capacity grease drawer made of stainless steel
• Chassis frame is fully welded and comprised of stainless and aluminized steel
• Built-in bottom heat shields
• Low-profile, 11-in. cooking height
• 4-in. adjustable legs
• 81,000 BTU

Dimensions & Utilities

• Cook surface: 36 in. W x 30 in. D
• Overall: 36 in. W x 37¹/₂ in. D x 15¹/₄ in. H
• 1 A
• 120 V/50-60 Hz/1 ph, NEMA 5-15P plug
• Rear gas connection and pressure regulator: ³/₄ in.
• Uses natural gas or liquid propane

Heavy Duty Griddle, countertop, gas, 36″ W x 30″ D cooking surface, 1″ thick polished steel griddle plate, embedded mechanical snap action thermostat every 12″, millivolt pilot safety, electric spark or manual ignition, front manifold gas shut-off valve, low profile, stainless steel front, sides, front grease trough, 4″ back & tapered side splashes, 4″ adjustable legs, 81,000 BTU, CSA, NSF
