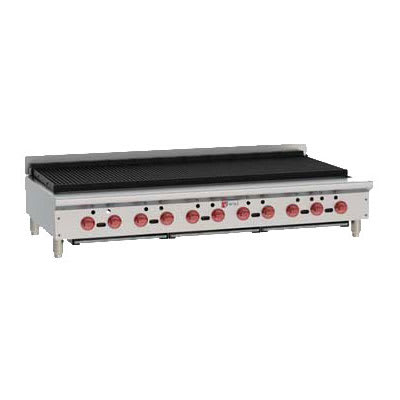

Wolf ACB60 62 1/8″ Gas Charbroiler w/ (11) Burners & Cast Iron Grates – Manual

$7,845.00

  • 11 burners
  • 17,000-BTU burner for each broiler grate
  • Each burner has a high-range infinite-heat control valve
  • 5.25-in.-wide cast iron diamond grates
  • Heat deflector tray system reflects heat upward so the grease drawer is a cool zone that can be wiped clean
  • Supercharger burner dividers reduce the transfer of heat so multi-zone cooking capability is increased
  • 2 drip trays catch food particles and prevent messes
  • Standing pilot ignition system simplifies startup
  • All-welded frame makes the unit sturdier
  • Grease trough, top trim, control panel, sides, and backsplash are stainless steel for durability and damage resistance
  • Valve has adjustment marks on the front panel to aid in setup
  • 4-in. adjustable legs
  • 187,000 total BTU
Clear
SKU: WolfACB60 Category:

Description

Wolf ACB60 Description

The Wolf ACB60 gas charbroiler has an all-welded frame that makes the whole unit more durable and stable. Its stainless steel construction is heavy duty for long-term use and prevents dents or scratches. Heat is pushed upward by the heat deflector tray system to create a cool zone in the grease drawer and speed up the cleaning process. A high-range infinite-heat control valve controls each burner, with adjustment marks for each valve on the front panel ensuring operation remains simple.

The standing pilot ignition system aids operators when lighting the pilots. For each 5.25-inch-wide, cast iron diamond broiler grate, one 17,000-BTU burner is built in. This Wolf ACB60 commercial charbroiler has cast iron char-radiants that are extremely durable. A ventilation system must be implemented in order to use this unit.

Product Details

  • 11 burners
  • 17,000-BTU burner for each broiler grate
  • Each burner has a high-range infinite-heat control valve
  • 5.25-in.-wide cast iron diamond grates
  • Heat deflector tray system reflects heat upward so the grease drawer is a cool zone that can be wiped clean
  • Supercharger burner dividers reduce the transfer of heat so multi-zone cooking capability is increased
  • 2 drip trays catch food particles and prevent messes
  • Standing pilot ignition system simplifies startup
  • All-welded frame makes the unit sturdier
  • Grease trough, top trim, control panel, sides, and backsplash are stainless steel for durability and damage resistance
  • Valve has adjustment marks on the front panel to aid in setup
  • 4-in. adjustable legs
  • 187,000 total BTU

Dimensions & Utilities

  • Broiling surface: 57 in. W x 22.31 in. D
  • Overall: 62.1 in. W x 31 in. D x 15.3 in. H
  • Liquid Propane or Natural Gas powered
  • 3/4-in. rear gas connection and gas pressure regulator

Achiever Charbroiler, 62-1/8″ W, countertop, (11) cast iron 17,000 BTU burners with standing pilots and cast iron radiants, heat deflector tray, supercharger burner dividers, high range infinite heat control valves, fully welded chassis, manual gas valve controls, stainless steel front, sides, top trim, backsplash & grease trough, cast iron top grates, 4″ adjustable legs, 187,000 BTU, CSA, NSF

Documents:

Additional information

Gas Type

Natural Gas, Liquid Propane
