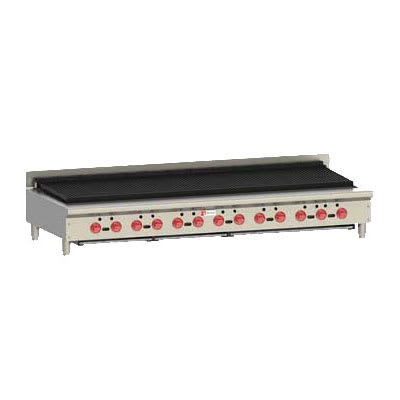

Wolf ACB72 72 1/8″ Gas Charbroiler w/ (13) Burners & Cast Iron Grates – Manual

$9,660.00

  • (13) 17,000-BTU burners
  • Infinite heat control valves for each burner
  • Engraved valve adjustment marks
  • Cast iron radiants absorb burner heat, reflecting it to the cooking surface
  • (13) 5.25-in.-wide cast iron diamond grates
  • Burner dividers minimize heat transfer to different zones
  • Heat deflector tray system reflects heat upward out of the grease drawer
  • Standing pilot ignition system
  • All-welded chassis withstands heavy use
  • Stainless steel components resist scratching and rusting
  • Adjustable, 4-in. legs
  • 221,000 total BTU
Clear
SKU: WolfACB72 Category:

Description

Wolf ACB72 Description

The Wolf ACB72 commercial charbroiler has an easy-to-light pilot ignition system, and each of its 17,000-BTU burners has a high-range infinite heat control valve. On the front panel, valve adjustment marks guide operators when they are setting up the unit. The 5.25-inch-wide cast iron diamond grates sit above the burners, and char-radiants are made from heavy-duty cast iron for durability.

Supercharger burner dividers reduce the transfer of heat so multi-zone cooking is possible. To facilitate cleaning, a cool zone in the grease trough is created by the heat deflector tray system pushing heat up. The Wolf ACB72 gas charbroiler is heated by Liquid Propane or Natural Gas and has a heavy-duty welded frame with stainless steel parts that resist damage.

Product Details

  • (13) 17,000-BTU burners
  • Infinite heat control valves for each burner
  • Engraved valve adjustment marks
  • Cast iron radiants absorb burner heat, reflecting it to the cooking surface
  • (13) 5.25-in.-wide cast iron diamond grates
  • Burner dividers minimize heat transfer to different zones
  • Heat deflector tray system reflects heat upward out of the grease drawer
  • Standing pilot ignition system
  • All-welded chassis withstands heavy use
  • Stainless steel components resist scratching and rusting
  • Adjustable, 4-in. legs
  • 221,000 total BTU

Dimensions & Utilities

  • Broiling area: 68.75 in. W x 22.31 in. D
  • Overall: 72.5 in. W x 31 in. D x 15.3 in. H
  • Powered by Liquid Propane or Natural Gas
  • 3/4-in. rear gas connection and gas pressure regulator

Achiever Charbroiler, 72-1/2″ W, countertop, (13) cast iron 17,000 BTU burners with standing pilots and cast iron radiants, heat deflector tray, supercharger burner dividers, high range infinite heat control valves, fully welded chassis, manual gas valve controls, stainless steel front, sides, top trim, backsplash & grease trough, cast iron top grates, 4″ adjustable legs, 221,000 BTU, CSA, NSF

Documents:

Additional information

Gas Type

Natural Gas, Liquid Propane
