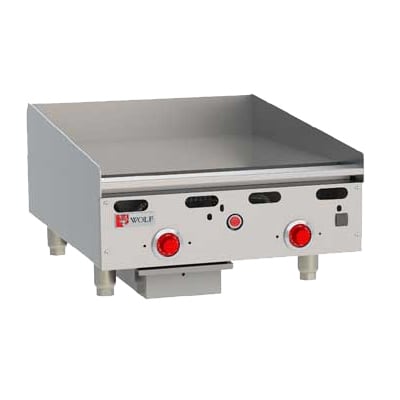

Wolf ASA24 24″ Gas Griddle w/ Thermostatic Controls – 1″ Steel Plate

$5,226.00

  • Fits on counter
  • 1-in.-thick polished steel griddle plate
  • Stainless steel front, sides, and bull-nose edge
  • Chassis is constructed of fully welded and aluminized steel
  • 11-in. cooking height
  • Temperature range: 200-550 degrees F
  • 2 U-shaped aluminized burners
  • 2 mechanical thermostat controls
  • Heats in 12-in. griddle sections
  • 6-qt. stainless steel grease drawer
  • 31/2-in.-wide front grease gutter
  • Welded grease chute
  • 4-in. rear splash and tapered side splashes
  • 4-in. adjustable legs
  • Manual ignition
  • Bottom heat shields
  • Pilot safety valve
  • Side clearances: 6 in.
  • Bottom clearance: 4 in.
  • 54,000 BTU
Clear
SKU: WolfASA24 Category:

Description

Wolf ASA24 Description

With its 24-inch-wide by 24-inch-deep surface, the Wolf ASA24 heavy-duty gas griddle has two separate cook zones to increase production. A manual-ignition, U-shaped aluminized steel burner heats a 12-inch-wide griddle section; each of the two burners is controlled by a mechanical, snap-action, thermostatic control, which has a 200- to 550-degree-Fahrenheit temperature range. If the pilot blows out, its safety features restrict gas flow to the burners and pilot. Equipped with a 1-inch-thick polished steel griddle plate, the griddle is designed to be a long-lasting piece of equipment because the plate doesn’t warp, crack, or sag over time from constant reheating.

The Wolf ASA24 gas griddle has an aluminized and stainless steel chassis for a rigid frame, and its front, sides, and bull-nose ledge are made of stainless steel to resist corrosion and common wear over time. Lifted by four legs, the unit lets users clean typically hard-to-reach places underneath it. These legs can be raised or lowered to fit kitchen environment needs, such as accounting for uneven surfaces. Its low-profile, 11-inch-high design doesn’t disrupt overhead storage. Side splashes line the perimeter of the griddle plate to contain oil; used oil and grease can be scraped easily into the front grease gutter and drained into the 6-quart grease drawer for removal.

Product Details

  • Fits on counter
  • 1-in.-thick polished steel griddle plate
  • Stainless steel front, sides, and bull-nose edge
  • Chassis is constructed of fully welded and aluminized steel
  • 11-in. cooking height
  • Temperature range: 200-550 degrees F
  • 2 U-shaped aluminized burners
  • 2 mechanical thermostat controls
  • Heats in 12-in. griddle sections
  • 6-qt. stainless steel grease drawer
  • 31/2-in.-wide front grease gutter
  • Welded grease chute
  • 4-in. rear splash and tapered side splashes
  • 4-in. adjustable legs
  • Manual ignition
  • Bottom heat shields
  • Pilot safety valve
  • Side clearances: 6 in.
  • Bottom clearance: 4 in.
  • 54,000 BTU

Dimensions & Utilities

  • Griddle plate: 24 in. W x 24 in. D
  • Overall: 24 in. W x 311/2 in. D x 151/4 in. H
  • Uses Liquid Propane or Natural Gas
  • 3/4-in. rear gas connection and gas pressure regulator

Heavy Duty Griddle, countertop, gas, 24″ W x 24″ D cooking surface, 1″ thick polished steel griddle plate, (2) burners, 4″ back & tapered side splashes, (1) mechanical snap action thermostat per burner with temperature adjustment, pilot safety, manual ignition, (1) 6 quart grease drawer, stainless & aluminized steel chassis frame, 11-1/8″ low profile cooking height on 4″ adjustable legs, 54,000 BTU, CSA, NSF

Documents:

Additional information

Gas Type

Natural Gas, Liquid Propane
