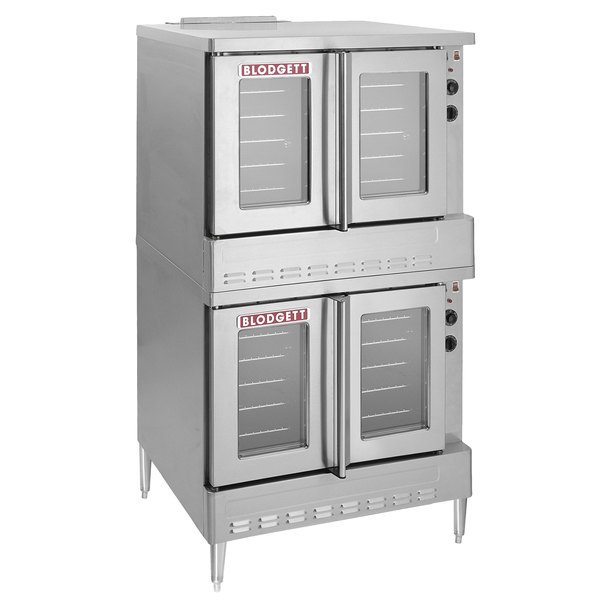

Cooking your bakery’s most famous streusels, muffins, donuts, and bread will never be easier than with this Blodgett ZEPHAIRE-200-G double deck bakery depth convection oven! Boasting a sturdy iron frame with a stainless steel top and 6″ adjustable legs, this oven is sure to provide functionality to your kitchen while operating smoothly. This double deck oven provides you with twice the production capacity in the same footprint as a single deck unit and features solid state infinite controls with a digital timer. Plus, it also includes a draft diverter at no additional cost to ensure that your kitchen is properly ventilated.
Thanks to each compartment’s two speed fan and 1/2 hp blower motor, this convection oven efficiently recirculates heated air through its interior compartment, which reduces energy consumption and increases performance. This system offers a cost-effective way of cooking your product at a lower temperature for a shorter amount of time, allowing you to get food to the tables faster.
The powder-coated handle provides a comfortable grip when opening and closing the doors, which are tightly secured to the frame with a triple-mounted pressure lock design. The interior of each deck features five chrome-plated racks that can be configured into eleven rack positions with a minimum of 1 5/8″ spacing to ensure that you are getting the most out of your oven, which has the capacity to hold up to (5) 18″ x 26″ standard full size baking pans per deck. In bakery depth ovens, you can arrange the racks in either left to right or front to back positions allows for a “staggered” effect that improves airflow during baking. A 14 gauge double-sided porcelainized baking compartment liner allows for easy clean up of your unit. As an added benefit, the interior is illuminated, giving you the ability to check on your product without opening the doors and letting excess heat escape.
The oven is heated through a dual flow gas system that combines direct and indirect heat with removable dual tube burners. The gas shutoff valve on the front provides easy accessibility while the control system boasts electronic spark ignition for ease of use. The unit is controlled by a thermostat with a temperature range from 200 to 500 degrees Fahrenheit, which gives you the ability to prepare a wide variety of products. For safety, the blower motor has an automated thermal overload protection mechanism and a control area cooling fan.
This double deck oven ships in two separate crates and will require stacking upon installation.
Left to Right: 38 1/4″
Front to Back: 36 7/8″
Height (without ventilation): 70 5/8″
Height (with draft diverter): 76 5/8″
Left to Right: 29″
Front to Back: 28 1/4″
|Width||38 1/4 Inches|
|Depth||36 7/8 Inches|
|Height||76 5/8 Inches|
|Interior Width||29 Inches|
|Interior Depth||28 1/4 Inches|
|Interior Height||20 Inches|
|18 x 26 Pan Capacity||5 Pans|
|Features||Spark / Piezo Ignition|
|Gas Inlet Size||3/4 Inches|
|Made in America||Yes|
|Maximum Temperature||500 Degrees F|
|Number of Chambers||2|
|Number of Decks||Double|
|Number of Doors||4|
|Number of Racks||10|
|Oven Interior Style||Deep Depth|
|Power Type||NP / LP|
|Temperature Range||200 – 500 Degrees F|
