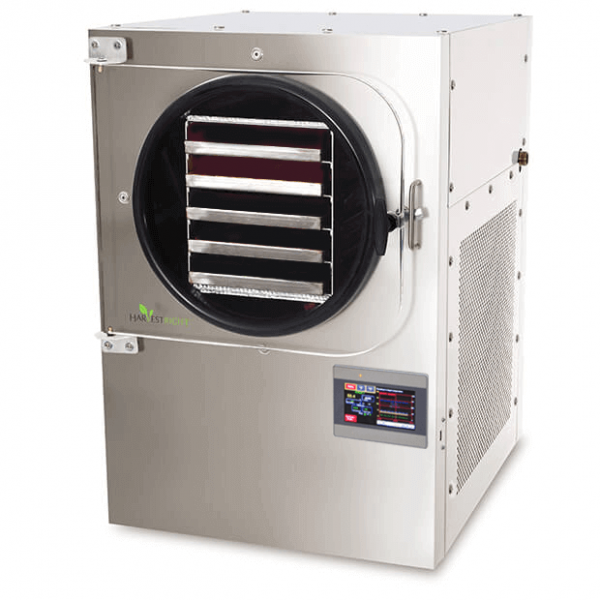

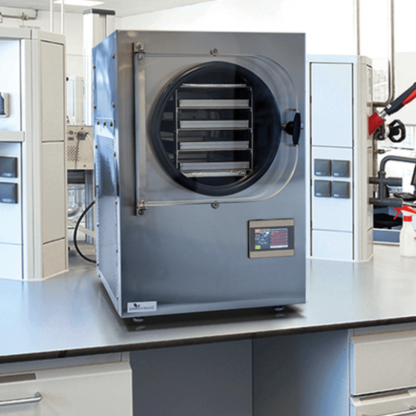

Harvest Right Scientific Pro Freeze Dryer + Oil-Free Pump

$6,500.00 – $9,000.00

Convenience of 4-tray dryer in a table top unit. Large capacity — capable of freeze drying as much as a gallon or two of material (6 to 10 lbs when wet).

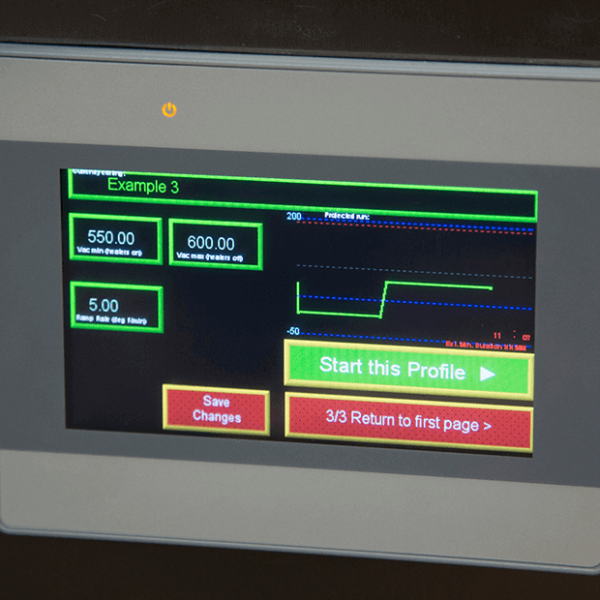

Full-color, touch-screen display.
4-liter ice condensing capacity.

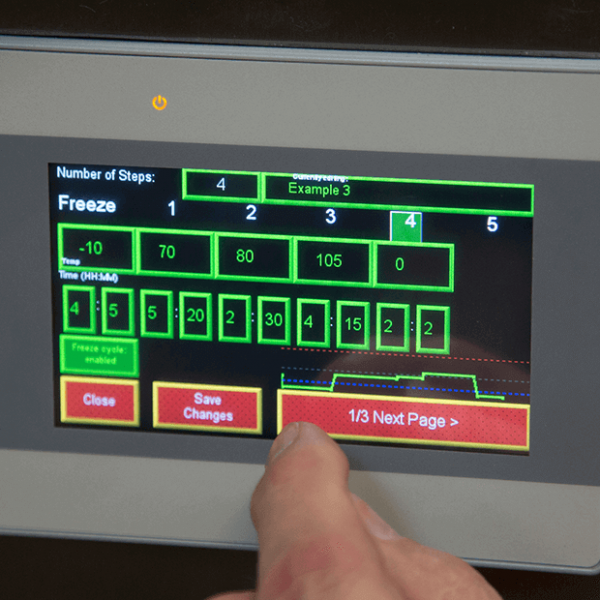

Operation allows for recipe customization (up to 10 Thermal Treatment and 12 Drying steps).
Control of the rate of freeze. This means that the rate of freeze can be speeded up or slowed down.
Control of the ultimate final freeze temperature.
Control of the amount of time a material is held at the ultimate freeze temperature before the drying
cycle is started.
Control of the shelf temperature during the dry cycle. This includes setting as many as five different shelf temperatures, thus allowing the material to dry in phases, at different temperatures. For instance, you might have the material begin drying at 10ºF and increase the temperature in phases until the ultimate final dry temperature is 70ºF.
The shelf heaters can be set to automatically control the rate of sublimation during the primary drying cycle. Through this process, the unit has control of the attendant vacuum pressure.
The system records and maintains a log of the pressure and temperature during all parts of the freeze-dry cycle.
Provides ongoing, real-time display of pressure and temperature.
The unit can also connect to and communicate the freeze dryer cycle data to a nearby PC through an ethernet cable.

Please call if you would like to order any accessories (See table below)

Lead times may be extended. Please call to confirm lead times.

Please note that the Harvest Right Freeze Dryers do not qualify for No Tax special. Please contact us to confirm fee.

Plant Based Pros is an Authorized Retailer of Harvest Right products.

Items purchased from Plant Based Pros:

Are brand new and in original packaging.
Are covered by the full manufacturer warranty.
Qualify for manufacturer service and support.

SKU: N/A Category: Freeze Dryers Tags: Freeze Dryers, Harvest Right

Description

For the first time ever, affordable, high-quality, large-capacity laboratory (scientific) units are available in table top models. Competitive units are incredibly expensive (typically $30,000 or more), take up a lot of space, and are very costly to run.

Labs, universities, and research institutions that have used Harvest Right freeze dryers prefer them over larger, more expensive products.

Our scientific lyophilizer units are easier to use, more reliable, and have features that even larger, more expensive scientific units don’t have, such as our patented “smart sensors” that can sense when the material you are freeze drying is finished.

“Why not get four Harvest Right machines for $25K with triple the capacity and fewer points of failure than similar units that cost $30K to $50K? That’s what we did.”

Christina C,
EY Laboratories, Inc.

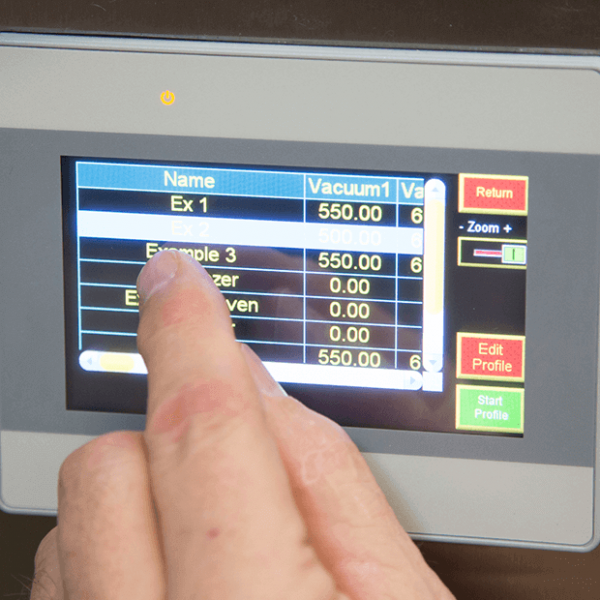

Harvest Right’s lyophilizer/freeze dryer is the perfect addition to any laboratory. The scientific freeze dryer can be completely customized with your preferred processes. You can have multiple manageable profiles, each providing the ability to automatically power on and off the condensing unit and the oil-free vacuum pump in conjunction with ascending, controlled temperature and time settings.

Specifications

Item: Freeze Dryer/Lyophilizer
Style: Bench/Table Top
Holding Capacity: 6 Liters of Sublimated Ice
Min. Temp. Rating: Collector Cools to -46ºF
Collector Material: Stainless Steel
Drying Chamber: Included (Stainless Steel)
Purge Valve: Included
Voltage: 115
AMPS: AC20
Dimensions: 32.5″ high x 25.5″ deep x 22.5″ wide
Exterior: Stainless Steel or Powder Coated Aluminum
Electronics: Includes a Full Color Touch Screen (4.3″ diagonal)
Operation: Manual / Automated

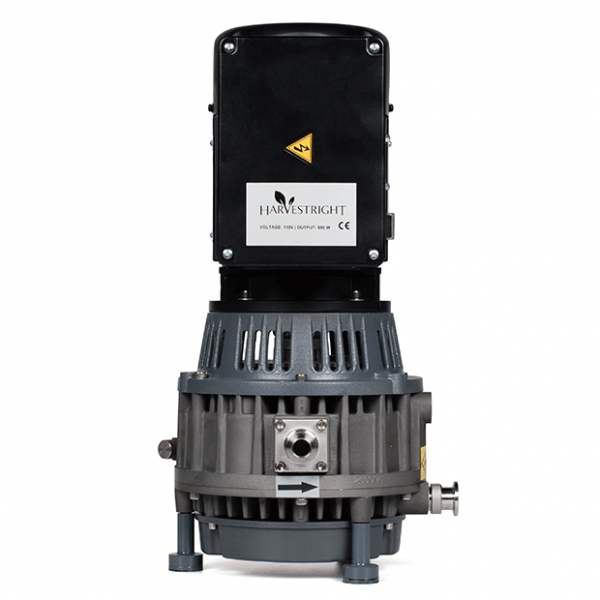

Vacuum Pump: 7 CFM Oil-Free Scroll Vacuum Pump

What’s Included

– Commercial Grade Oil-Free Vacuum Pump
– Five (5) Stainless Steel Trays
– Owner’s Manual
– Power Cord (110 Volt)
– Insulator Door Pad

Accessories Price List
Harvest Right Oil Free Vacuum Pump		$1,695.00
Vacuum Pump Oil (1 case of 6)		$75.00
Mylar Starter Kit(Sealer, 50 Mylar Bags, 50 Oxygen Absorbers)		$150.00
8X12 MYLAR BAGS 50 PACK (MUST ORDER IN CASE QTY OF 6)		$125.94
10X14 MYLAR BAGS 50 PACK (MUST ORDER IN CASE QTY OF 6)		$155.94
OXYGEN ABSORBERS 50 PACK (MUST ORDER IN CASE QTY OF 6)		$101.94

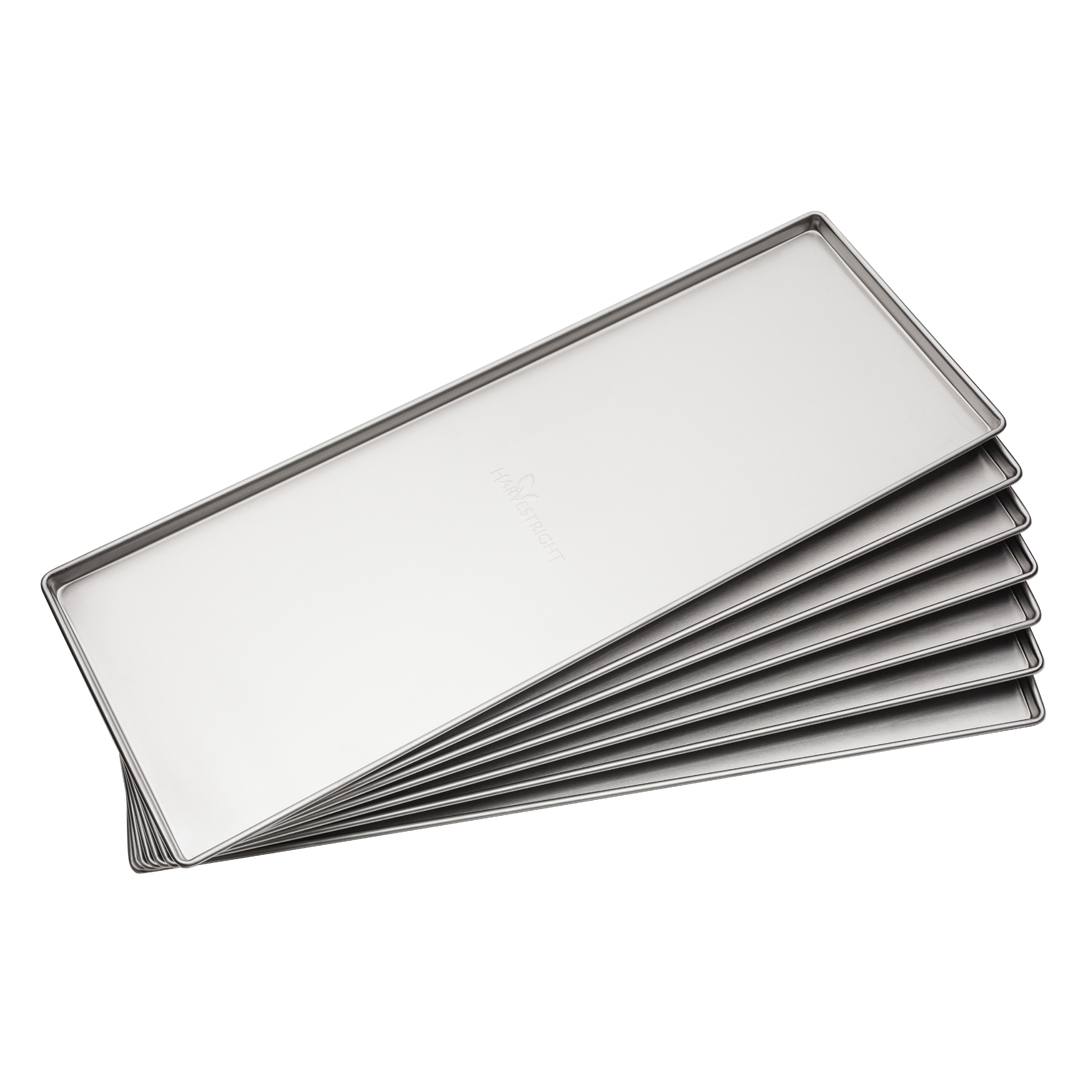

FREEZE DRYER TRAYS FOR SMALL HOME PRO (SET OF 4)		$59.00
FREEZE DRYER TRAYS FOR MEDIUM HOME PRO (SET OF 5)		$79.00
FREEZE DRYER TRAYS FOR LARGE HOME PRO (SET OF 6)		$109.00
FREEZE DRYER TRAYS FOR X-LARGE HOME PRO (SET OF 7)		$199.00

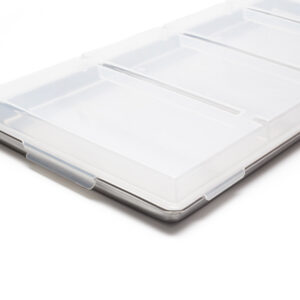

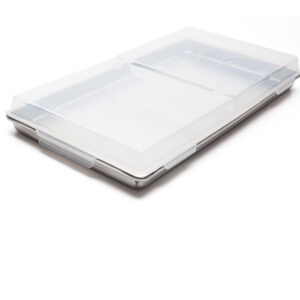

LIDS FOR SMALL HOME PRO FREEZE DRYER TRAYS (SET OF 4)		$54.00

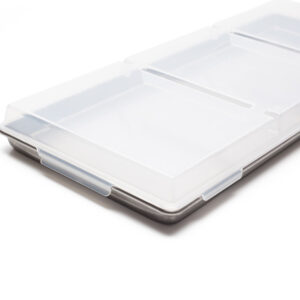

LIDS FOR MEDIUM HOME PRO FREEZE DRYER TRAYS (SET OF 5)		$69.00
LIDS FOR LARGE HOME PRO FREEZE DRYER TRAYS (SET OF 6)		$79.00

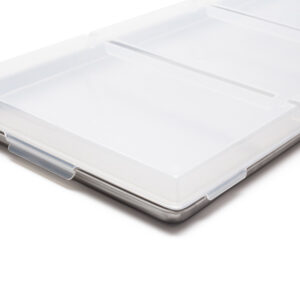

LIDS FOR X-LARGE HOME PRO FREEZE DRYER TRAYS (SET OF 7)		$89.00

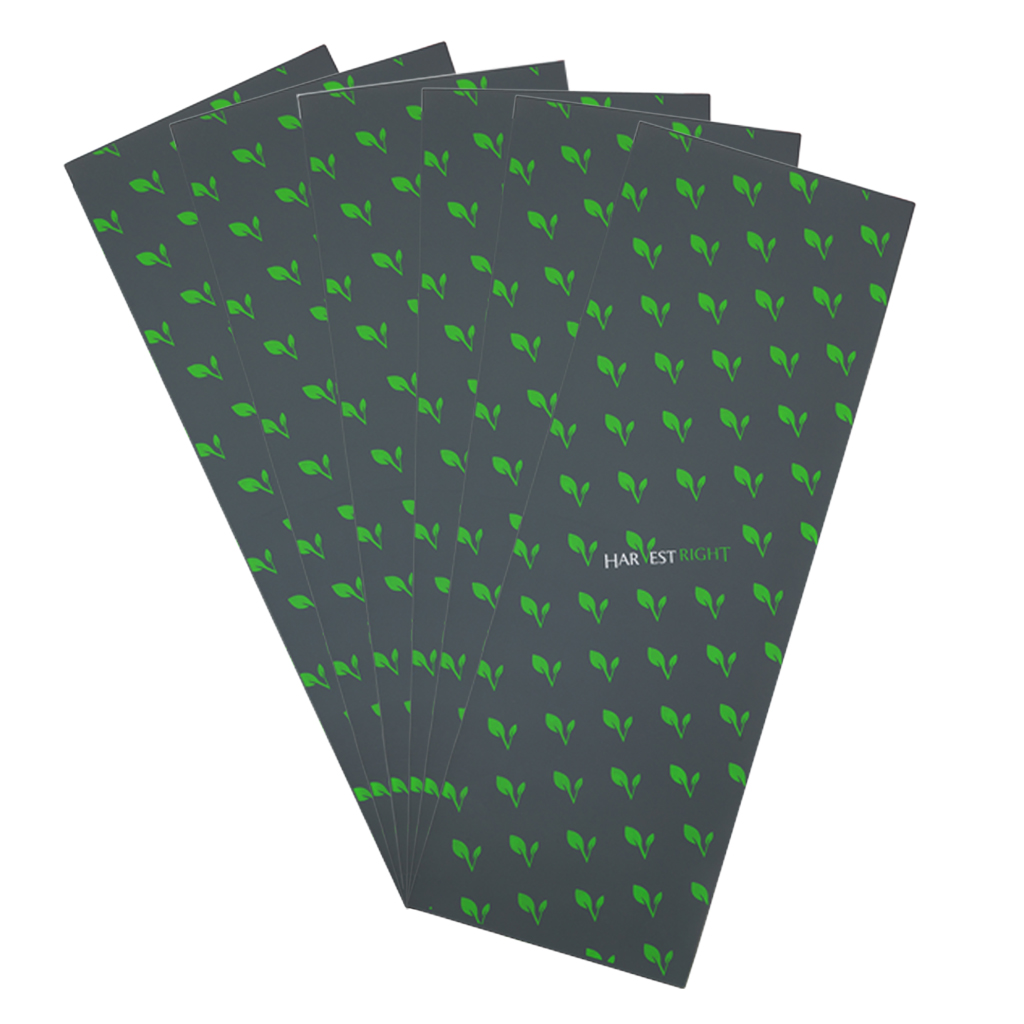

SILICONE MATS for SMALL HOME PRO (SET OF 4)		$29.95
SILICONE MATS for MEDIUM HOME PRO (SET OF 5)		$34.95
SILICONE MATS for LARGE HOME PRO (SET OF 6)		$48.95
SILICONE MATS for X-LARGE HOME PRO (SET OF 7)		$63.95
Please call us at 800-522-0517 to add accessories you need for your Harvest Right Freeze Dryer
