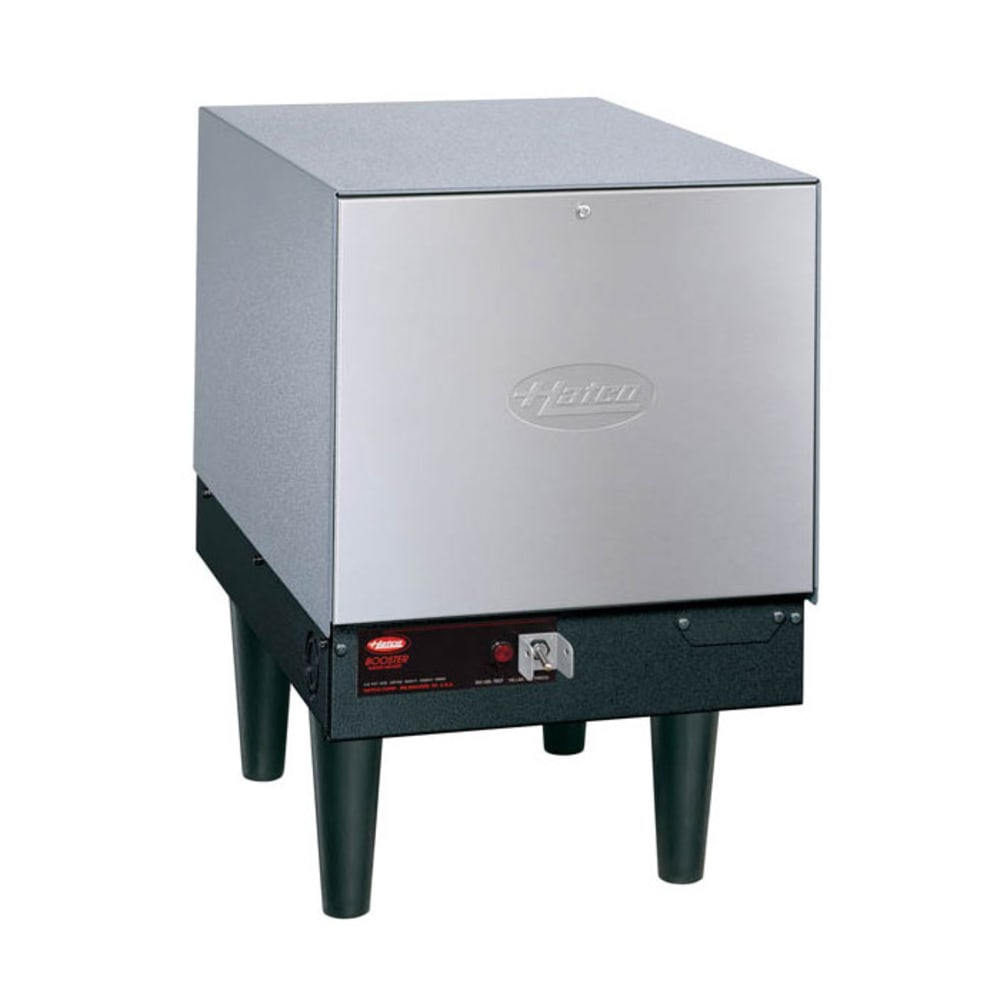

Hatco C-13 Compact Booster Water Heater, 6 Gallon, 13 1/2 kW

The Hatco C-13 compact booster water heater has a stainless steel front, a powder-coated silver hammertone body, and a Castone-lined tank that resists corrosion and limescale buildup. To prevent heat loss, this booster is lined with fiberglass insulation, and it includes a temperature and pressure relief valve, a pressure-reducing valve, and two temperature and pressure gauges. This booster can be mounted under a dishtable or countertop with the available slide bracket or set upright with 6-inch legs.

To prevent element burnout, the Hatco C-13 compact booster water heater cuts off when the tank water level is low. This unit includes a pilot indicator light that shows when it is heating water. Because it reaches 180 degrees Fahrenheit, this unit helps users properly sanitize dishware and flatware. It is wired with a calibrated immersion thermostat and a high-temperature limit switch. The front panel enables access to probes and elements for repair.

Product Details

• 6-gal. capacity
• Maximum 135 GPH at 40 degree-F rise
• Maximum 77 GPH at 70 degree-F rise
• Heats water to 180 degrees F for sanitation
• Slide brackets for installation under dishtable (sold separately)
• 6-in. legs
• Temperature and pressure relief valve
• Pressure-reducing valve
• High-temperature limit control
• On/off switch
• 2 temperature and pressure gauges
• Pilot indicator light
• Low-water cut-off prevents element burnout
• Calibrated immersion thermostat
• Swing-away front panels
• Control fuses and transformer
• Stainless steel front
• Power-coated silver hammertone body
• Castone-lined tank helps prevent corrosion
• ³/₄-in. NPT pipe and fittings for inlet and outlet

Dimensions & Utilities

• 13.06 in. W x 26 in. D x 19.78 in. H
• 65 A, 13.5 kW
• 208 V/60 Hz/1 ph

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 13.5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6″ plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/1ph

*Image may not depict product color, inclusions or accessories.
