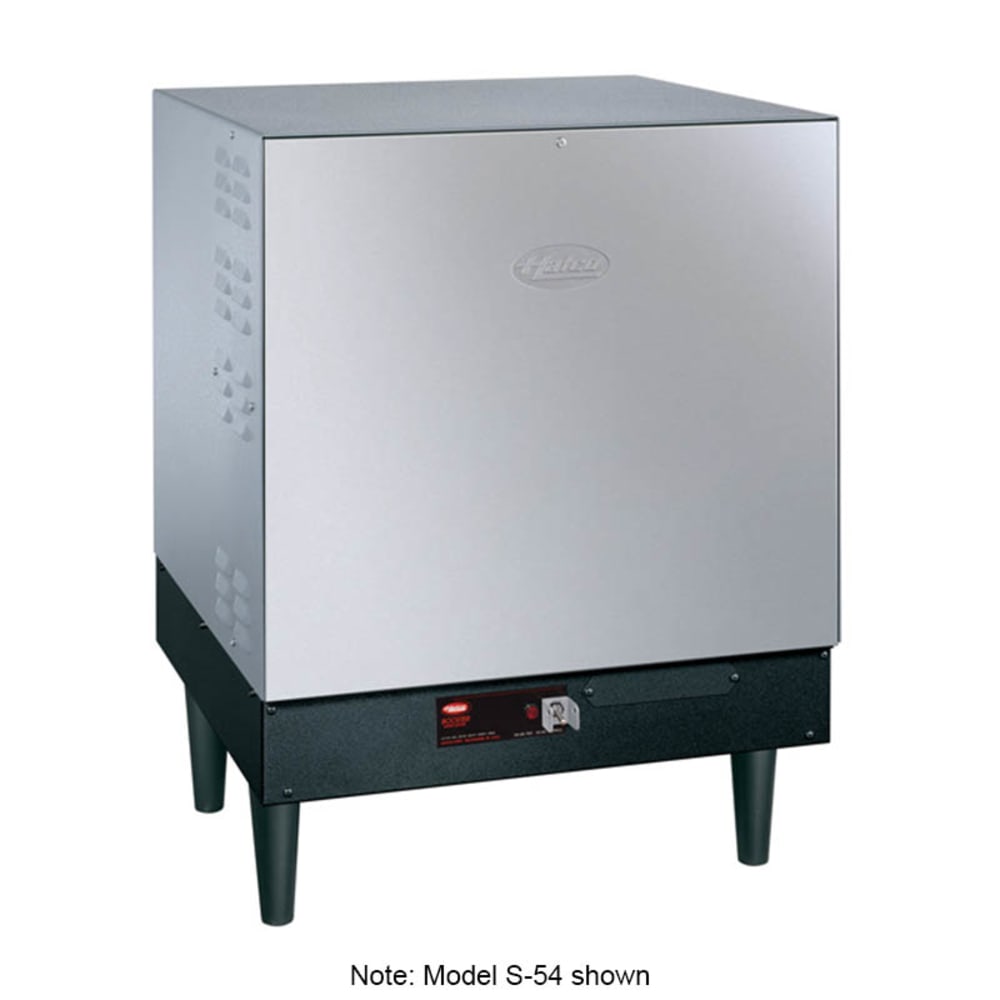

Hatco S-17 Imperial Booster Water Heater, 16 Gallon, 17 1/4 kW

$3,641.55

  • Part of the Imperial series
  • Maximum 173 GPH at 40-degree-F rise
  • Maximum 99 GPH at 70-degree-F rise
  • Powder-coated hammertone finish adds durability
  • Stainless steel front cover provides service access
  • 2 temperature pressure gauges
  • Temperature/pressure relief valve
  • Pressure reduction valve
  • Power switch
  • Pilot indicator light
  • Adjustable thermostat can be set to 180 degrees F or 140 degrees F
  • Metal-sheathed elements
  • Elements automatically deactivate if water level is too low or temperature is too high
  • 16-gal. water tank lined in scale-resistant Castone
  • Fiberglass layer around tank for insulation
  • Pre-wired and pre-plumbed
SKU: HatcoS-17 Category:

Description

Hatco S-17

Built for commercial use, the Hatco S-17 Imperial water heater has a hammertone exterior finish and a Castone-lined tank. Both offer corrosion protection, preventing the constant running water from damaging the unit. Other safeguards include a low-water cut-off and high-temperature limit switch, which prevent the elements from burning out or overheating the electronics. This heater also features a temperature/pressure relief valve and pressure reduction valve, which keep those values at safe levels for operation.

This Hatco S-17 water booster heater is designed to raise a water supply to the hot, sanitizing temperature of 180 degrees Fahrenheit. At this temperature, bacteria begins to die off, making the water ideal for the final rinse cycle of a high-temperature dishmachine. For low-temperature machines, this unit also features a 140-degree-Fahrenheit setting. The heater is operated with a front-located on/off switch, and to change the temperature setting, users can conveniently reach through the front cover and turn the thermostat screw.

Product Details

  • Part of the Imperial series
  • Maximum 173 GPH at 40-degree-F rise
  • Maximum 99 GPH at 70-degree-F rise
  • Powder-coated hammertone finish adds durability
  • Stainless steel front cover provides service access
  • 2 temperature pressure gauges
  • Temperature/pressure relief valve
  • Pressure reduction valve
  • Power switch
  • Pilot indicator light
  • Adjustable thermostat can be set to 180 degrees F or 140 degrees F
  • Metal-sheathed elements
  • Elements automatically deactivate if water level is too low or temperature is too high
  • 16-gal. water tank lined in scale-resistant Castone
  • Fiberglass layer around tank for insulation
  • Pre-wired and pre-plumbed

Dimensions & Utilities

  • 28.53 in. W x 22.75 in. D x 31.03 in. H
  • 47.9 A, 17.25 kW
  • 208 V/60 Hz/3 ph

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 17.25 kW, stainless steel front panel, powder-coated silver-gray hammertone body, 6″ plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/3ph
