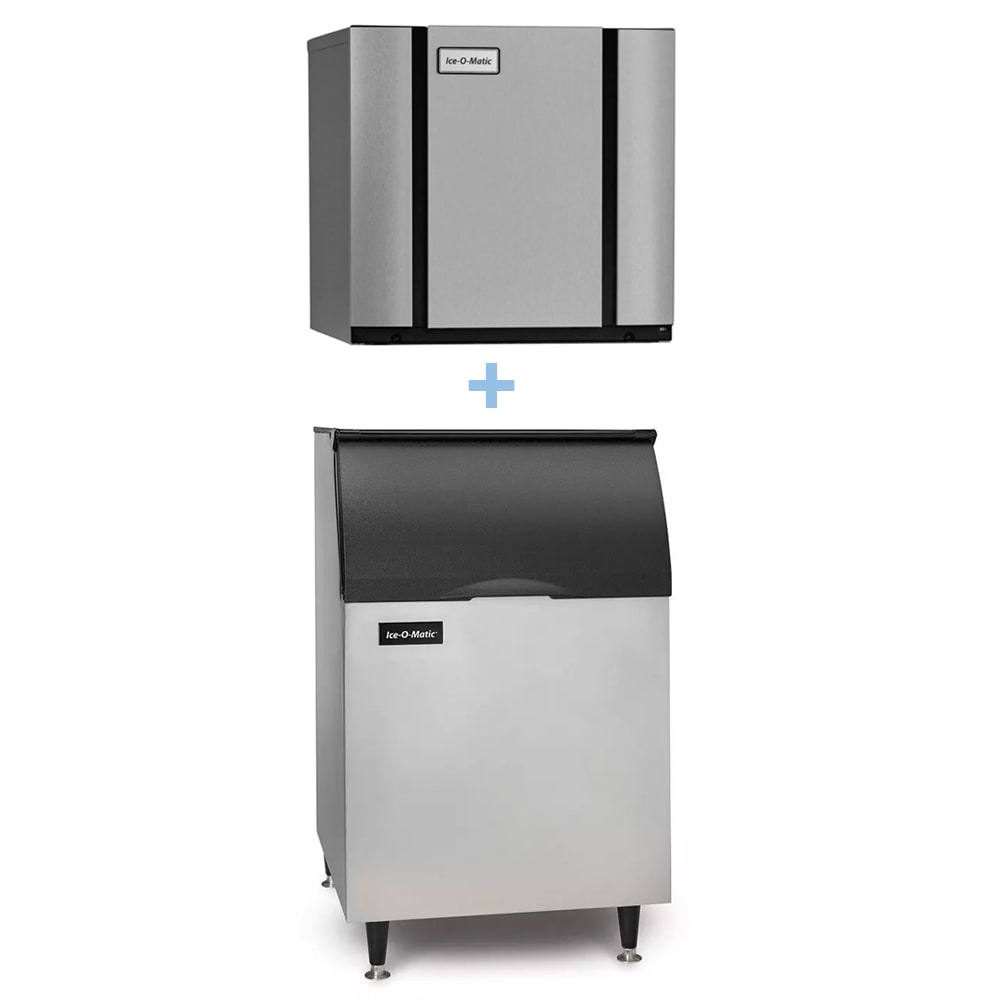

Ice-O-Matic CIM0320FA/B55PS Description
The Ice-O-Matic CIM0320FA/B55PS full-cube ice maker with bin has removable food zone components that are dishwasher safe. Users can activate the sanitizing and descaling process with the push of a button, while PURE ICE antimicrobial protection inhibits the growth of bacteria to reduce germ spread. Using an LED display, the unit provides updates about the system’s status, for operator monitoring.
To access stored ice, the Ice-O-Matic CIM0320FA/B55PS ice maker with bin has a sloped door hinged from the top. The bin holds as much as 510 pounds of ice, while the head makes from 244 to 313 pounds daily depending on ambient temperature and other environmental conditions. To prevent ice from melting while it’s stored, the bin is insulated with foam, and to provide durability, its exterior is constructed of aluminum.
Ice Maker Details
- Part of the Elevation Series
- 313-lb. maximum daily ice production
- 244-lb. daily ice production at 70-90 degrees F
- Makes full-size cubes
- Cube size: 7/8 in. x 7/8 in. x 7/8 in.
- Status updates provided on LED display
- Sanitizing and descaling performed with a single touch
- Food zone components are removable and dishwasher safe
- PURE ICE antimicrobial protection slows microbe growth
- Air-cooled and self-contained condenser
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F

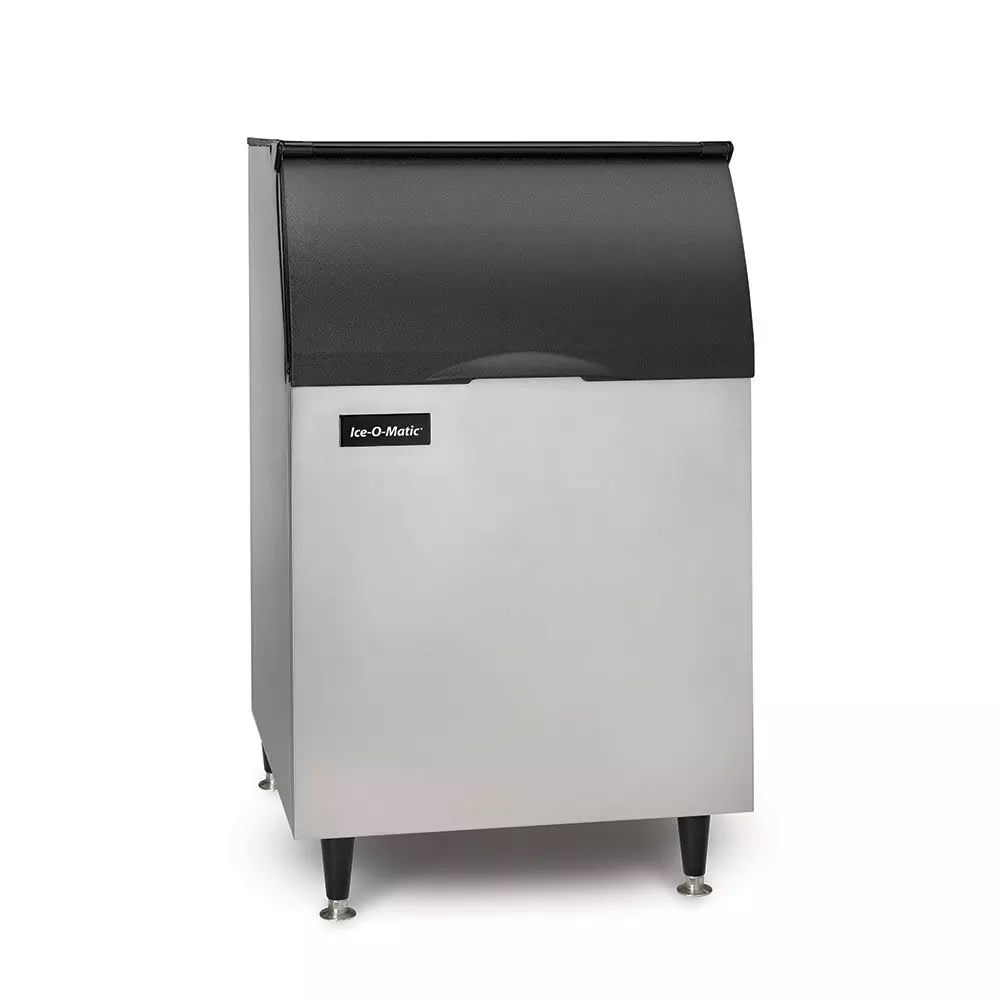

Ice Bin Details
- 510-lb. application capacity
- Insulation made of foam to preserve ice
- Ice accessed with top-hinged, sloped door
- Liner is corrosion-resistant polyethylene
- Constructed of resilient aluminum
- Mounted on 6-in. legs
Dimensions & Utilities
- Ice maker: 22.50 in. W x 24.25 in. D x 21.25 in. H
- Ice bin: 30 in. W x 31 in. D x 50 in. H
- 11 A
- 115 V/60 Hz/1 ph
Pair your Ice-O-Matic ice maker with an OEM filter at purchase and change the cartridge regularly to get a 7-year evaporator warranty.
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), full-size cubes, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin w/ Bin Top: 510 lb storage capacity, 30″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
