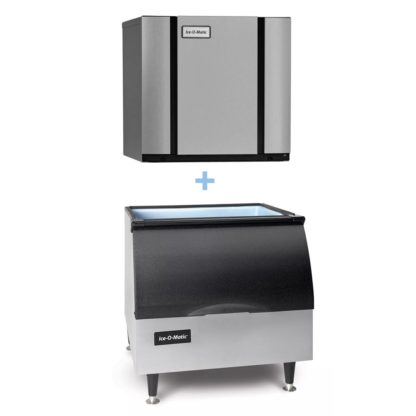

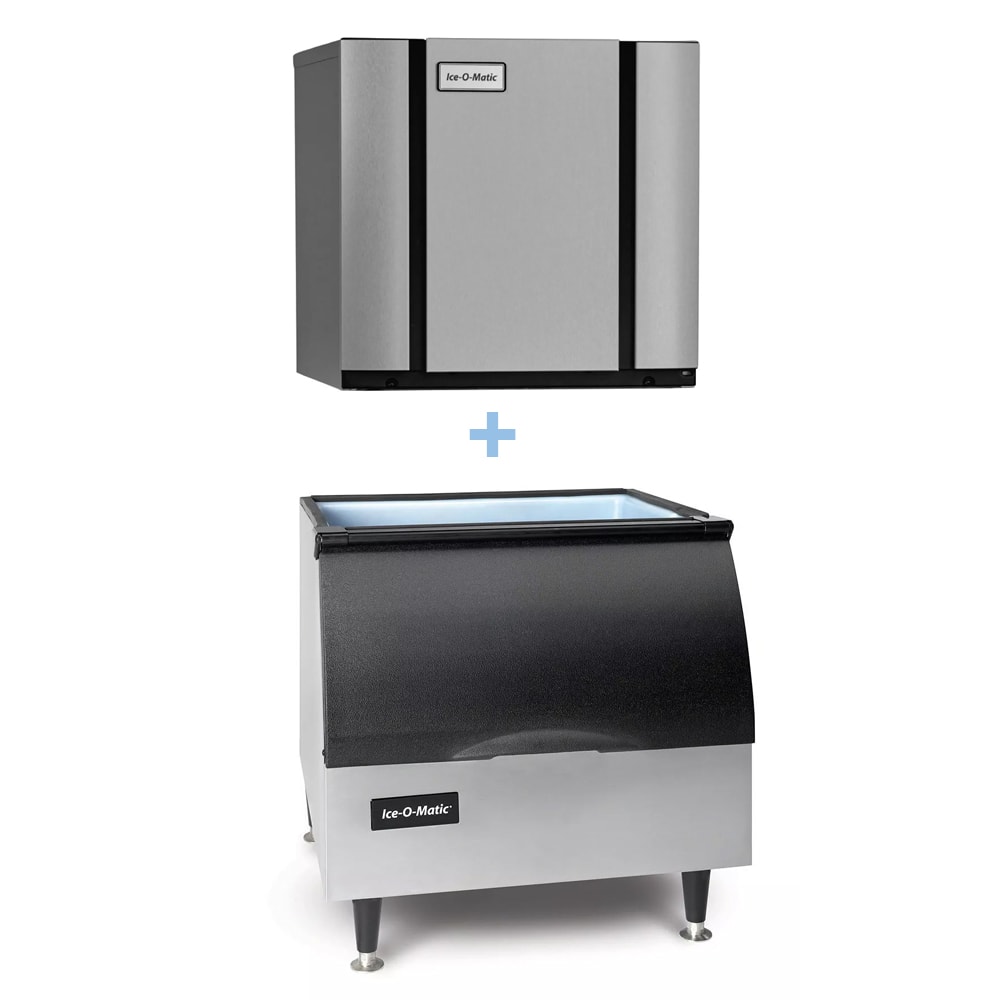

Ice-O-Matic CIM0320HA/B25PP 313 lb Half Cube Ice Maker w/ Bin – 242 lb Storage, Air Cooled, 115v

$3,548.00$3,748.00

  • Part of the Elevation Series
  • Production capacity: 313 lb./24 hours in ideal conditions
  • AHRI production capacity: 244 lb./24 hours
  • Half-size ice cubes for optimal product displacement
  • Cube Dimensions: 3/8 in. x 7/8 in. x 7/8 in.
  • Narrow footprint measures 22.25 in. wide
  • Air-cooled design
  • Self-contained condenser for compact installation
  • Dual air exhaust from side and top disperses heat
  • Plastic food zone eliminates bacteria-harboring openings
  • BPA-free, dishwasher-safe components snap in and out
  • PURE ICE antimicrobial protection
  • Machine and maintenance status is communicated by LED smart status display and indicator lights
  • Universal Smart Harness control board enables digital diagnosis
  • Sanitizing and descaling process controlled with 1 touch
  • Contains recyclable components
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal ambient temperature: 50-100 degrees F
  • Ideal water pressure: 20-80 PSIG
  • Heat displacement: 4,400 BTU/hour

Plant Based Pros is an Authorized Retailer of Ice-O-Matic products.
Items purchased from Plant Based Pros are:

  • Brand new and in original packaging.
  • Covered by the full manufacturer warranty.
  • Qualified for manufacturer service and support.
  • Questions? Call (800) 522-0517
Clear
SKU: Ice-O-MaticCIM0320HA/B25PP Category:

Description

Ice-O-Matic CIM0320HA/B25PP

The Ice-O-Matic CIM0320HA/B25PP half-cube ice machine with bin is air cooled, so it cools less efficiently than a water-cooled model but consumes less water as it runs. Inside, the unit’s plastic food zone offers no small spaces where residue or bacteria can build up, and select components are removable and dishwasher safe for expedited cleaning. Simplified controls enable the user to activate descaling and sanitizing functions with one touch.

The Ice-O-Matic CIM0320HA/B25PP half cube ice maker head has a bin with the capacity to contain as much as 242 pounds of pre-made ice. To eliminate gaps where cold air might escape, a KBT19 bin top is included to securely fit the ice machine head to the bin. Inside the bin, a polyethylene liner resists corrosion and scratches from the friction of ice cubes. The bin’s rotocast aluminum exterior is lightweight and also resistant to corrosion.

Ice Maker Details

  • Part of the Elevation Series
  • Production capacity: 313 lb./24 hours in ideal conditions
  • AHRI production capacity: 244 lb./24 hours
  • Half-size ice cubes for optimal product displacement
  • Cube Dimensions: 3/8 in. x 7/8 in. x 7/8 in.
  • Narrow footprint measures 22.25 in. wide
  • Air-cooled design
  • Self-contained condenser for compact installation
  • Dual air exhaust from side and top disperses heat
  • Plastic food zone eliminates bacteria-harboring openings
  • BPA-free, dishwasher-safe components snap in and out
  • PURE ICE antimicrobial protection
  • Machine and maintenance status is communicated by LED smart status display and indicator lights
  • Universal Smart Harness control board enables digital diagnosis
  • Sanitizing and descaling process controlled with 1 touch
  • Contains recyclable components
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal ambient temperature: 50-100 degrees F
  • Ideal water pressure: 20-80 PSIG
  • Heat displacement: 4,400 BTU/hour

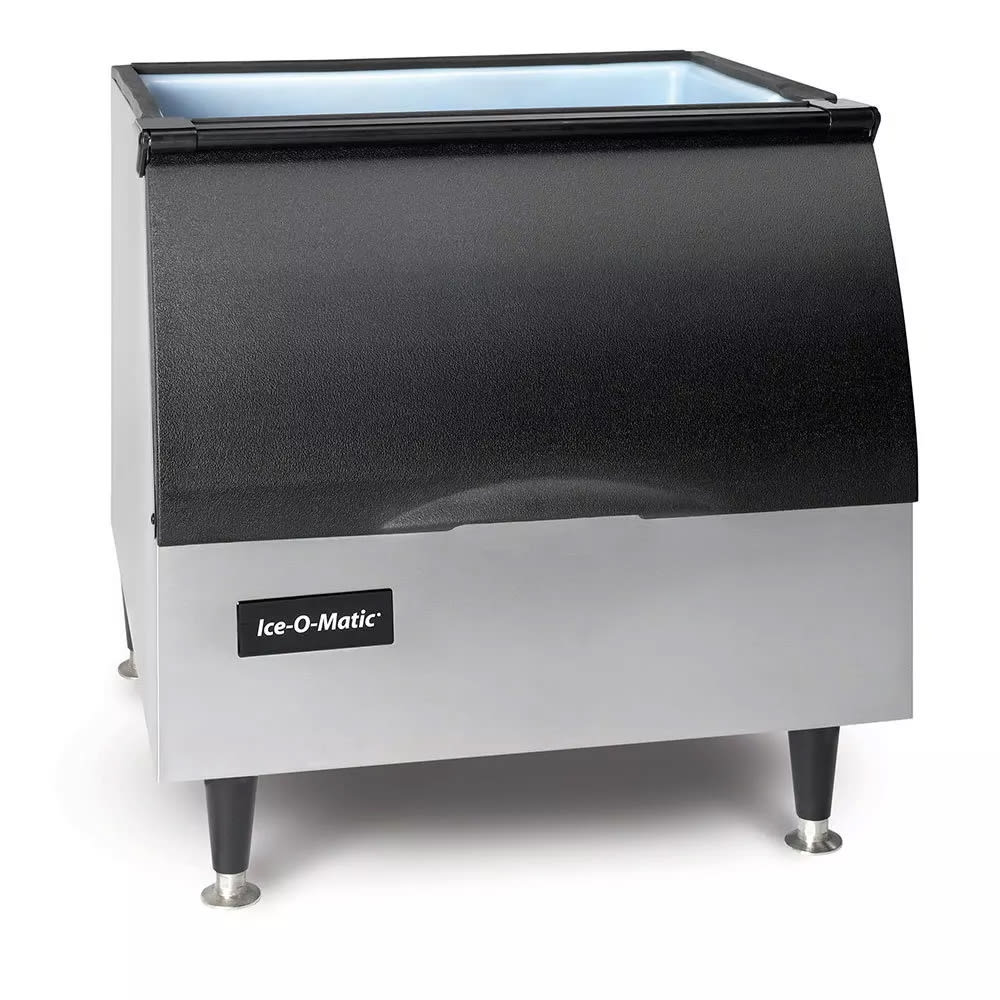

Ice Bin Details

  • KBT19 bin top included; fits 22-in. cuber on 30-in. bin
  • 242-lb. capacity
  • Top-hinged, sloped front door
  • Corrosion-resistant interior liner made of insulated polyethylene
  • Rotocast aluminum exterior finish
  • Rests on 6-in. adjustable legs

Dimensions & Utilities

  • Ice maker: 22.25 in. W x 24.25 in. D x 21.25 in. H
  • Bin: 30 in. W x 31 in. D x 28 in. H
  • Bin top: 30 in. W x 231/2 in. D
  • 11 A, 6.69 kW
  • 120 V/60 Hz/1 ph
  • Potable water inlet: 3/8-in. FPT
  • Water outlet: 3/4-in. FPT
  • Electrical connection port: 7/8-in. diameter
  • Electrical connection junction box: 7/8-in. diameter

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), half-size cubes, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin w/ Bin Top: 242 lb storage capacity, 30″W x 31″D x 28″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, rotocast exterior finish, 6″ legs, NSF
