Description

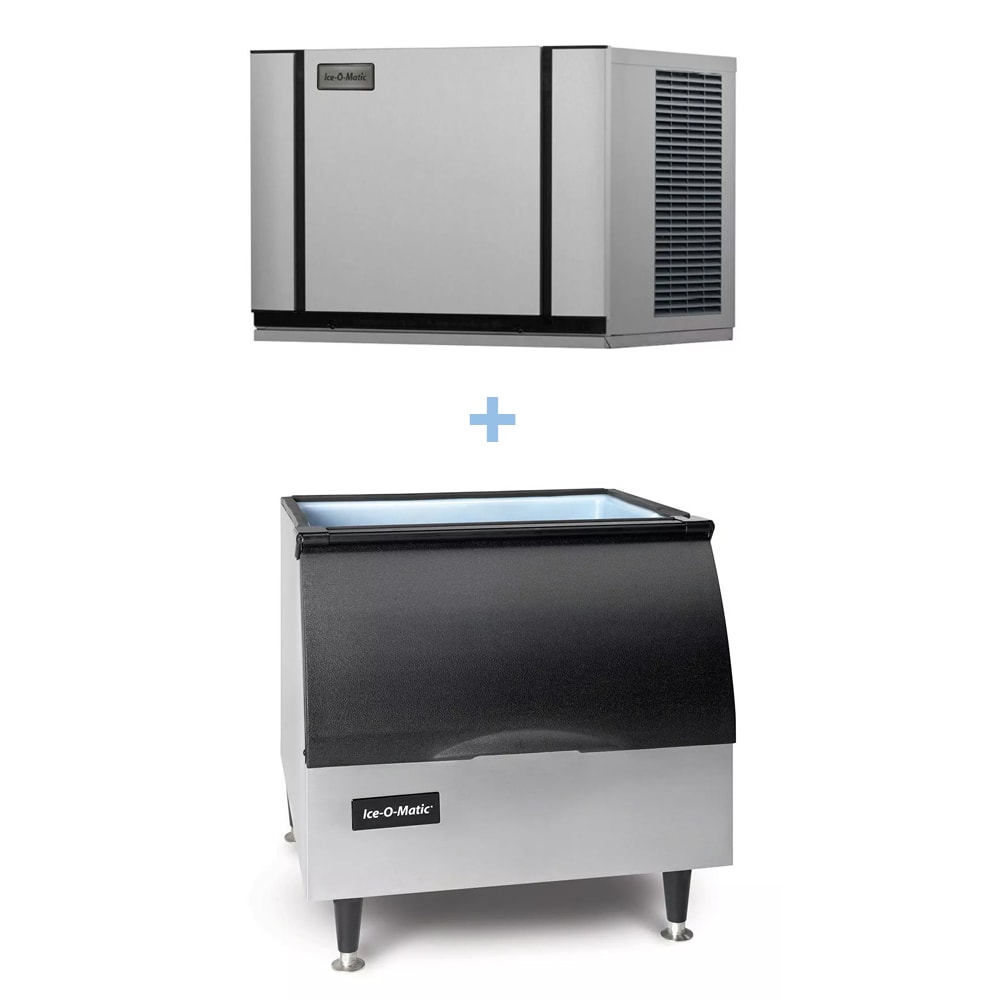

Ice-O-Matic CIM0330FA/B25PP Description
Able to produce as much as 313 pounds of ice in ideal conditions, the Ice-O-Matic CIM0330FA/B25PP full-cube ice maker comes with a bin that can store 242 pounds of ice once it’s prepared, giving users plenty of ice to serve from during peak periods. The bin rests on 6-inch legs that can be adjusted, lending additional stability to the unit. The bin’s door has a sloped front and is hinged on top, and inside the bin, an insulated liner protects the ice from high temperatures.
The Ice-O-Matic CIM0330FA/B25PP ice machine head with bin produces full-cube ice, a type that melts slowly to avoid watering down customers’ drinks during service. Digital diagnostics and LED status lights notify users when cleaning and maintenance is needed, and the LED display can be easily read. For faster cleaning, users can activate the device’s sanitizing and descaling processes with one touch, and select interior parts are removable for dishwasher cleaning.

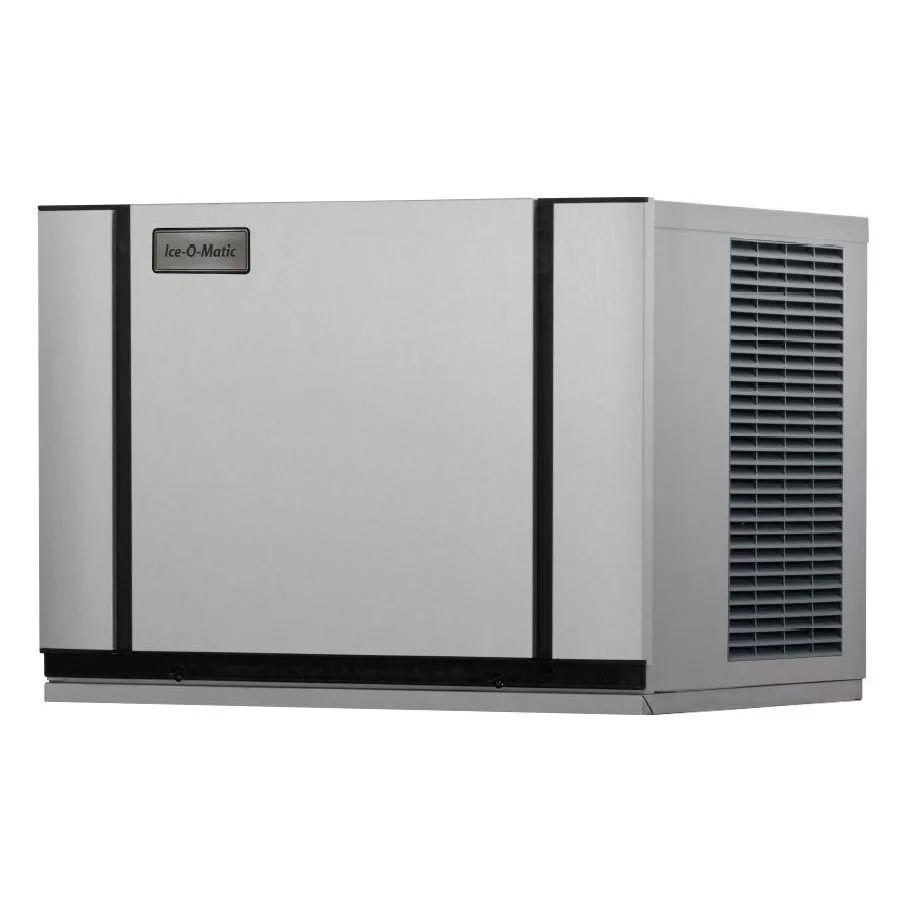

Ice Maker Details
- Part of the Elevation Series
- Production capacity: 313 lbs./24 hours in ideal conditions
- AHRI production capacity: 244 lbs./24 hours
- Produces full-size ice cubes
- Cube dimensions: 7/8 in. x 7/8 in. x 7/8 in.
- Air cooled
- Condenser is self-contained
- Dual exhaust system processes hot air efficiently
- Plastic food zone prevents small gaps where buildup can occur
- Expedited cleaning with dishwasher-safe, snap-in pieces
- Interior parts have PURE ICE antimicrobial defense against bacterial growth
- LED smart display and notification lights communicate machine status
- Digital diagnostic capability with Universal Smart Harness control board
- 1-touch controls for descaling and sanitizing processes
- Recyclable interior parts feature BPA-free plastic
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature: 50-100 degrees F
- Ideal water pressure: 20-80 PSIG
- Heat displacement: 4,400 BTU/hour

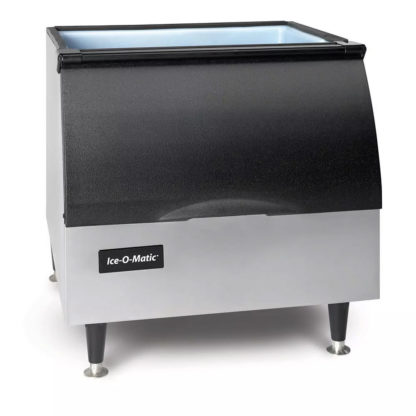

Ice Bin Details
- 242-lb. capacity
- Top-hinged, sloped-front door
- Corrosion-resistant polyethylene liner is insulated to preserve cold temperatures
- Rotocast aluminum exterior adds a finished appearance
- Designed with 6-in. adjustable legs for stability
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Bin: 30 in. W x 31 in. D x 28 in. H
- 11 A, 6.69 kW
- 120 V/60 Hz/1 ph
- Potable water inlet: 3/8-in. FPT
- Water outlet: 3/4-in. FPT
- Electrical connection port: 7/8-in. diameter
- Electrical connection junction box: 7/8-in. diameter
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin: 242 lb storage capacity, 30″W x 31″D x 28″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, rotocast exterior finish, 6″ legs, NSF
