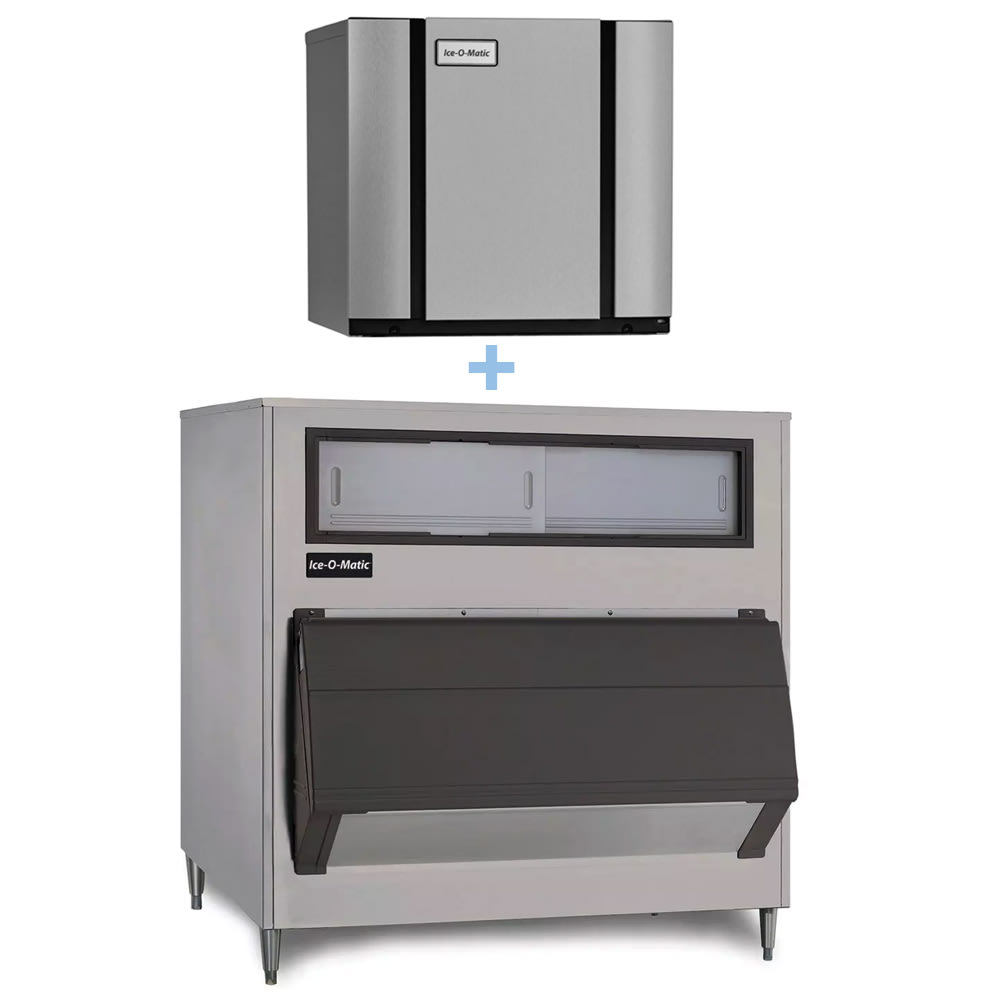

Ice-O-Matic CIM0520FA/B1300-48 561 lb Full Cube Ice Maker w/ Bin – 1320 lb Storage, Air Cooled, 115v

$9,545.00

  • Part of the Elevation Series
  • 561-lb. maximum daily ice production
  • 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
  • Air-cooled system produces full-cube ice
  • Narrow design conserves room in areas with space constraints
  • Dual exhaust system releases hot air from side and top to combat exhaust obstruction
  • Smart LED light alerts users of cleaning needs and machine status
  • PURE ICE antimicrobial defense
  • 1-touch descaling/sanitization
  • Plastic food zone decreases food residue buildup areas
  • Snap-out components can be cleaned in the dishwasher
  • Universal Smart Harness control board provides convenient access, digital diagnostics, common configuration, and universal components
  • Full cube size: 7/8 in. x 7/8 in. x 7/8 in.
  • Ideal ambient air temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal incoming water pressure: 20-80 PSI
  • 6,252-BTU heat transfer capacity
  • Ideal clearance: 6 in. for air intake and exhaust
SKU: Ice-O-MaticCIM0520FA/B1300-48 Category:

Description

Ice-O-Matic CIM0520FA/B1300-48 Description

Helping establishments and venues optimize available space, the Ice-O-Matic CIM0520FA/B1300-48 ice maker and bin’s 22-inch-wide head is compact. The maker produces full cube ice, which is good for a wide range of establishments. Dishmachine-washable components in the head conveniently snap out, and a dual exhaust system releases air through the head’s side and top to help cut down on potential exhaust obstruction.

The Ice-O-Matic CIM0520FA/B1300-48 air-cooled ice machine and bin’s 1,320-pound capacity gives banquet halls, kitchens, and other areas plenty of product-holding capability. Stainless steel construction strengthens the bin and extends its service life while improving its corrosion and rust defense. To help streamline ice unloading, the door has a stay-open feature.

Ice Maker

  • Part of the Elevation Series
  • 561-lb. maximum daily ice production
  • 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
  • Air-cooled system produces full-cube ice
  • Narrow design conserves room in areas with space constraints
  • Dual exhaust system releases hot air from side and top to combat exhaust obstruction
  • Smart LED light alerts users of cleaning needs and machine status
  • PURE ICE antimicrobial defense
  • 1-touch descaling/sanitization
  • Plastic food zone decreases food residue buildup areas
  • Snap-out components can be cleaned in the dishwasher
  • Universal Smart Harness control board provides convenient access, digital diagnostics, common configuration, and universal components
  • Full cube size: 7/8 in. x 7/8 in. x 7/8 in.
  • Ideal ambient air temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal incoming water pressure: 20-80 PSI
  • 6,252-BTU heat transfer capacity
  • Ideal clearance: 6 in. for air intake and exhaust

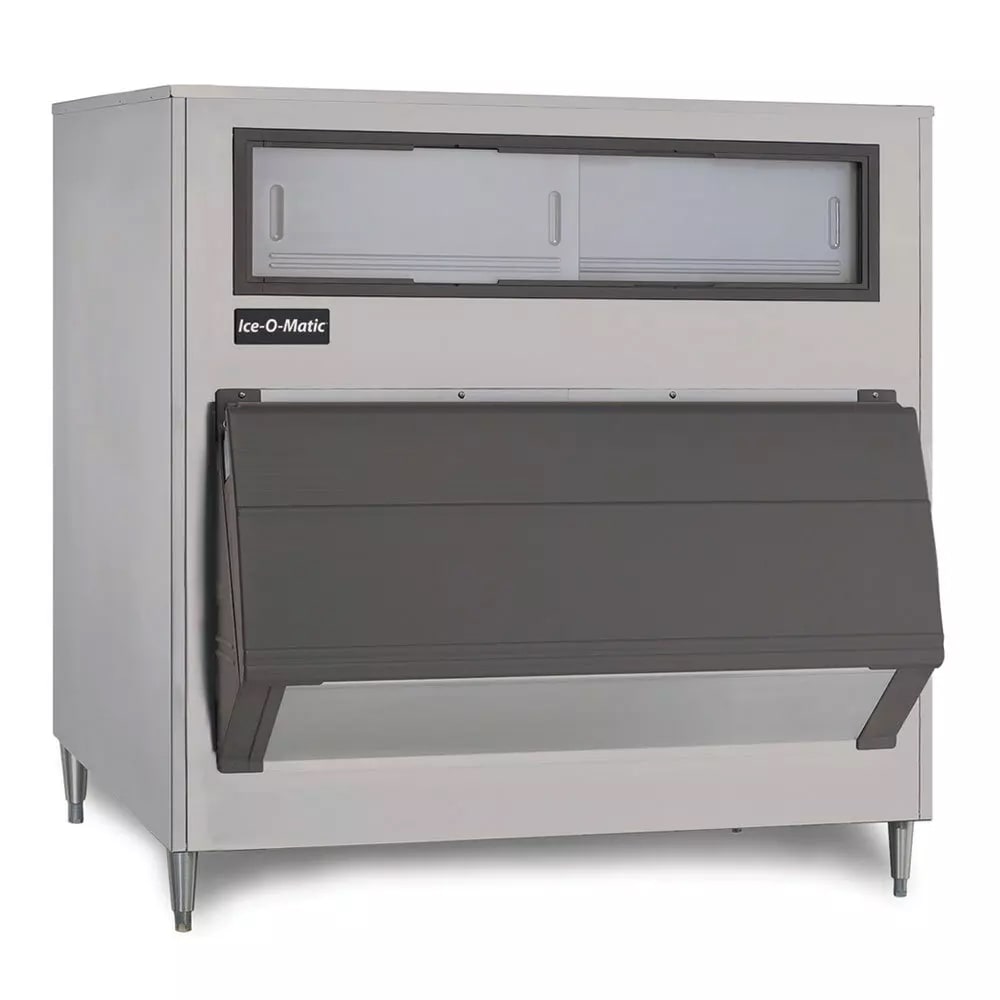

Ice Bin

  • 1,320-lb. bin capacity
  • 41.9-cu.-ft. holding capacity
  • Stainless steel construction withstands scraping, corrosion, and rusting
  • Poly bin liner provides corrosion resistance
  • Ice shield reduces spills by regulating ice flow
  • Stay-open door optimizes ice retrieval

Dimensions & Utilities

Ice Maker

  • 22.25 in. W x 24.25 in. D x 21.25 in. H
  • 17.8 A, 5.87 kW
  • 115 V/60 Hz/1 ph

Ice Bin

  • 48 in. W x 31 in. D x 65 in. H

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE; Ice Bin: 1320 lb storage capacity, 48″W x 31″D x 65″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
