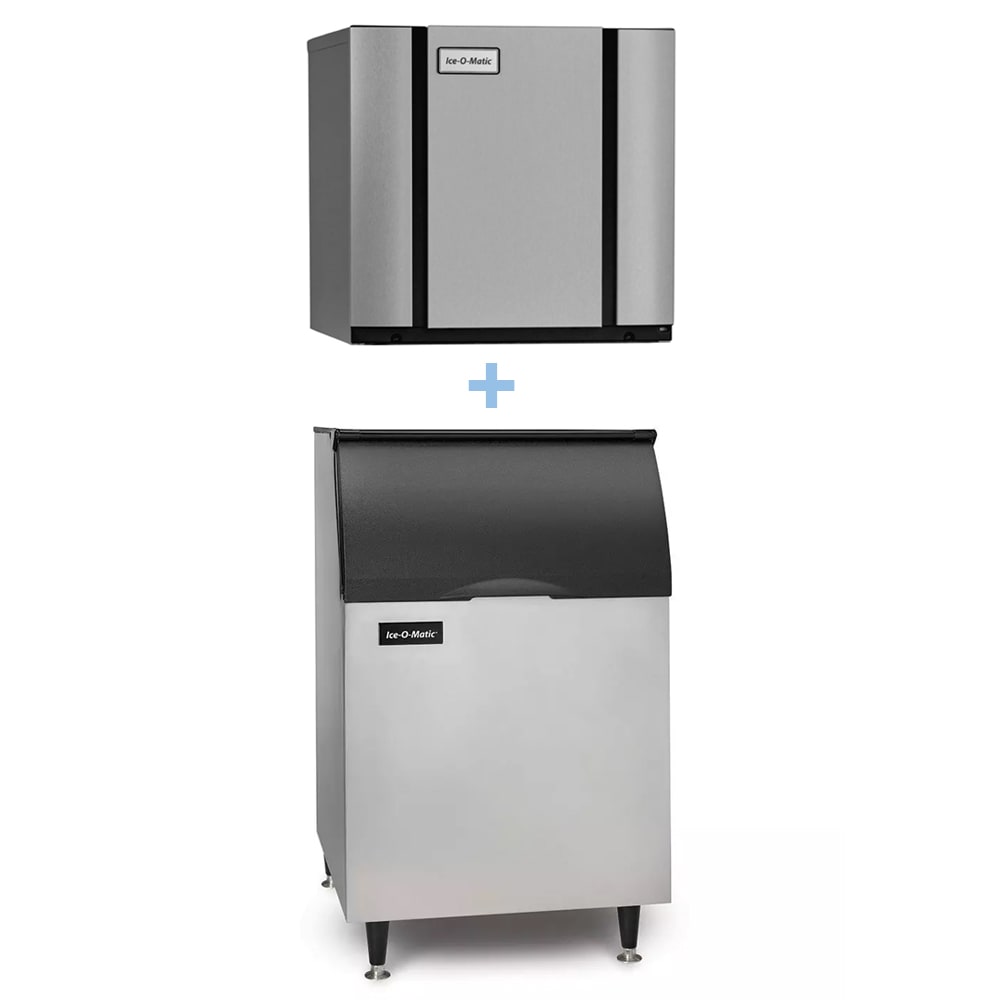

Ice-O-Matic CIM0520HA/B55PS 561 lb Half Cube Ice Maker w/ Bin – 510 lb Storage, Air Cooled, 115v

Producing as much as 561 pounds of half-cube ice per 24 hours, the Ice-O-Matic CIM0520HA/B55PS ice maker with bin has a 510-pound storage capacity. This piece of equipment is designed with an air-cooled condenser, and it’s convenient for operators seeking an economical machine with basic installation. Fans within the system move fresh air across the condenser, cooling the equipment.

The Ice-O-Matic CIM0520HA/B55PS commercial ice machine with bin is only 22.25 inches wide, saving space in cramped commercial kitchens. This energy-efficient equipment is constructed with BPA-free plastic and recyclable parts. It facilitates cleaning with a plastic foodzone that employees can wipe down quickly, and its built-in PURE ICE protection prevents the spread of bacteria.

Ice Machine Details

• Maximum production capacity: 561 lbs. of ice per 24 hours
• AHRI production capacity: 533 lbs. of ice per 24 hours
• Produces half-cube ice
• Constructed with BPA-free plastic and recyclable parts
• Plastic foodzone facilitates cleaning
• PURE ICE antimicrobial protection
• Smart LED light alerts user to machine status
• 1-touch controls simplify sanitation and descaling
• Snap-out, dishmachine-safe components streamline cleaning
• Discharges hot air from side and top to simplify installation and reduce exhaust
• Universal Smart Harness control board facilitates installation and servicing
• Provides digital diagnostics
• Universal components and common configuration
• Heat displacement: 6,252 BTU

Product Features

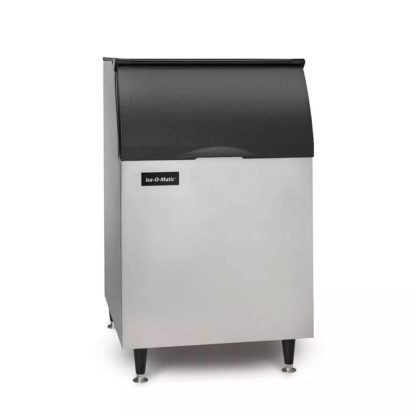

Ice Bin Details

• Includes KBT19 bin top for mounting 22-in. cubers on 30-in. bins
• 510-lb. storage capacity
• Polyethylene bin liner insulated with foam to maximize ice preservation
• 6-in. adjustable legs enable leveling on uneven floors
• Strong aluminum finish
• Slope front

Dimensions & Utilities

• Ice machine head: 22.25 in. W x 24.5 in. D x 21.25 in. H
• Ice bin: 30 in. W x 31 in. D x 50 in. H
• 17.8 A, 5.87 kW
• 115 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE; Ice Bin w/ Bin Top: 510 lb storage capacity, 30″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
