Description

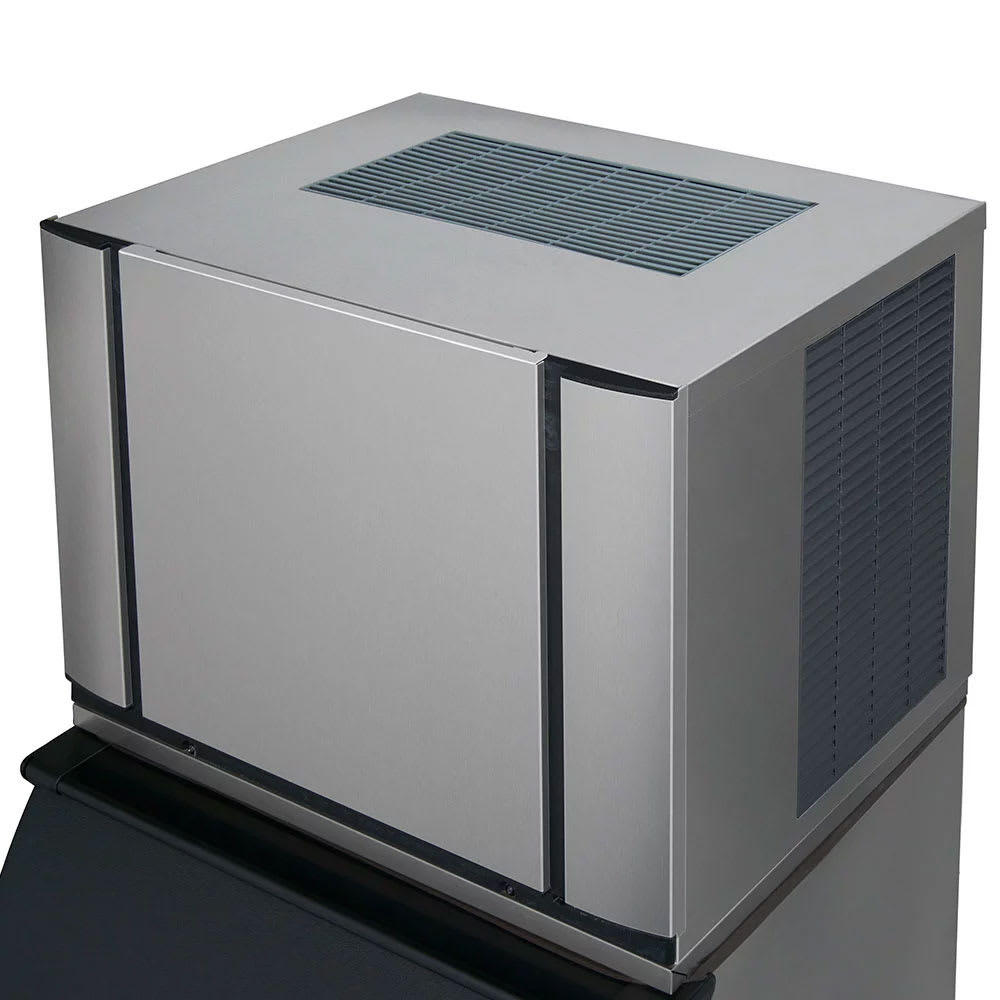

Ice-O-Matic CIM1137FA Description
Using R404A refrigerant, the Ice-O-Matic CIM1137FA ice machine head produces a maximum of 917 pounds of ice per day in optimal conditions. To streamline cleaning, its plastic food zone is equipped with components that can be removed and washed in a dishmachine. The growth of mold and bacteria is inhibited by PURE ICE‚Äîan antimicrobial agent. Operators can monitor the unit’s status using a clear LED display.
Because the Ice-O-Matic CIM1137FA full-cube ice maker’s condenser is self-contained, it’s simple and fast to install. Its dual-exhaust system releases air from the side as well as the top, reducing the risk of obstruction and overheating. This unit is air cooled and produces ice in full-size cube form.
Product Details
- Part of the Elevation Series
- 917-lb. maximum daily ice production
- 757-lb. AHRI daily ice production
- Makes full-size cubes
- Cube size: 7/8 in. x 7/8 in. x 7/8 in.
- Air cooled
- Self-contained condenser
- PURE ICE protection inhibits growth of mold, bacteria, and other microbes
- Dual-exhaust system reduces risk of obstructed exhaust

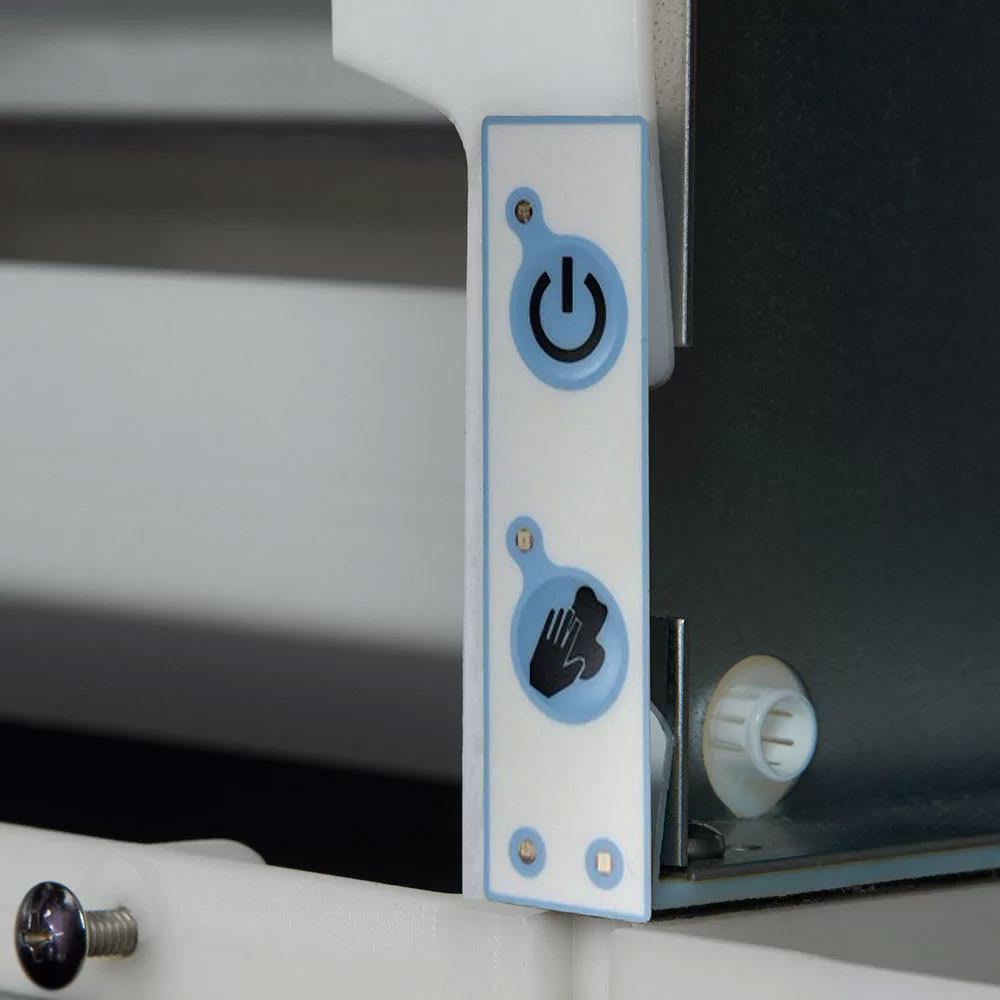

- 1-touch controls for sanitizing and descaling
- LED display keeps users apprised of status

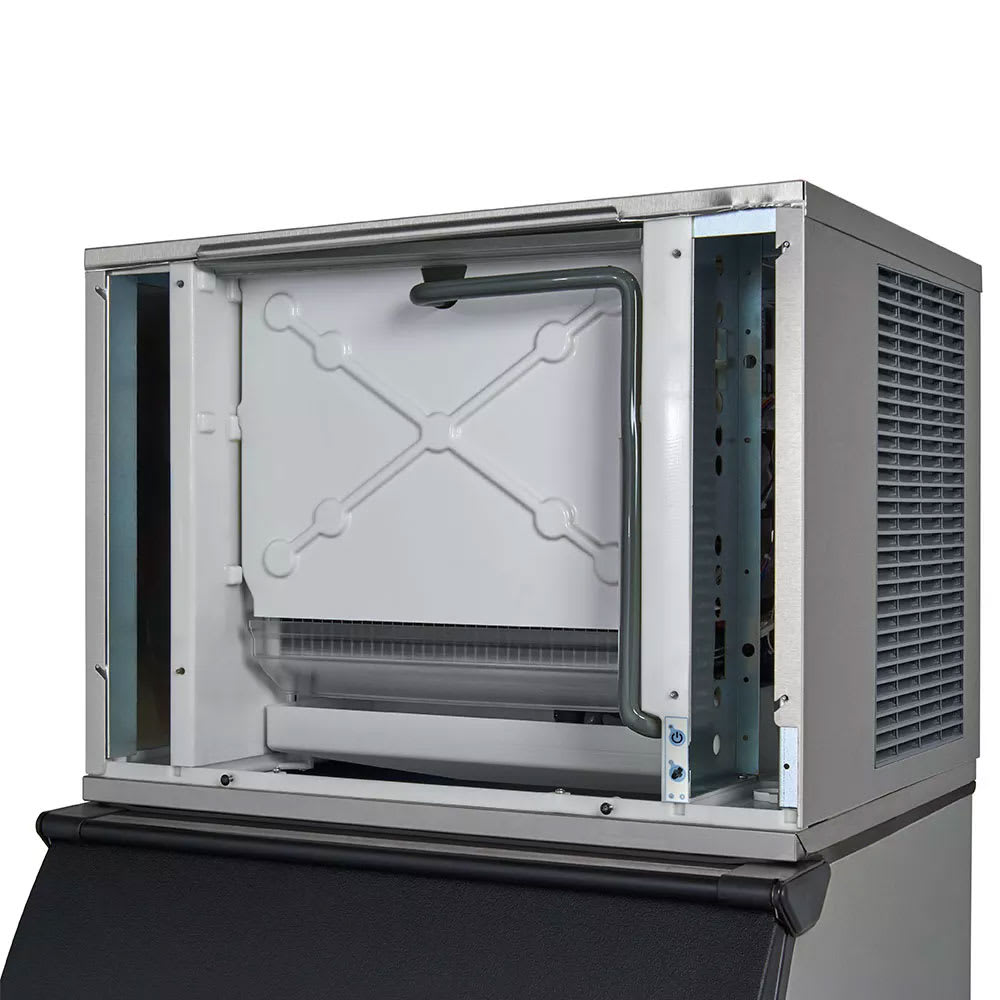

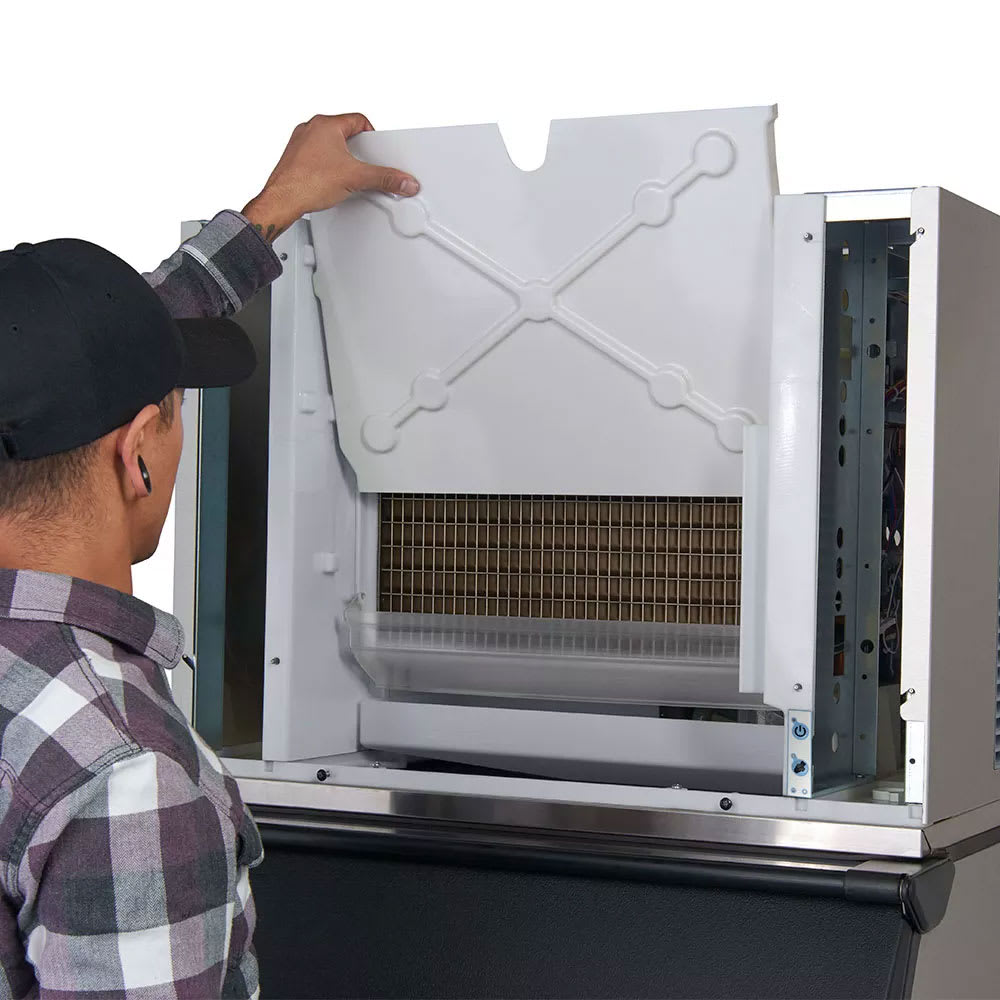

- Dishwasher-safe components in plastic food zone expedite cleaning
- Cools with R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 18,450-BTU heat transfer capacity
Dimensions & Utilities
- 30.25 in. W x 24.25 in. D x 26.90 in. H
- 8.9 A, 5.1 kW
- 208-230 V/60 Hz/3 ph
Elevation Series Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 917 lb production/24 hours at 70°/50° (757 lb at 90°/70°), full-size cubes, Agion built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/3-ph, 8.9 amps, cULus, NSF, CE
