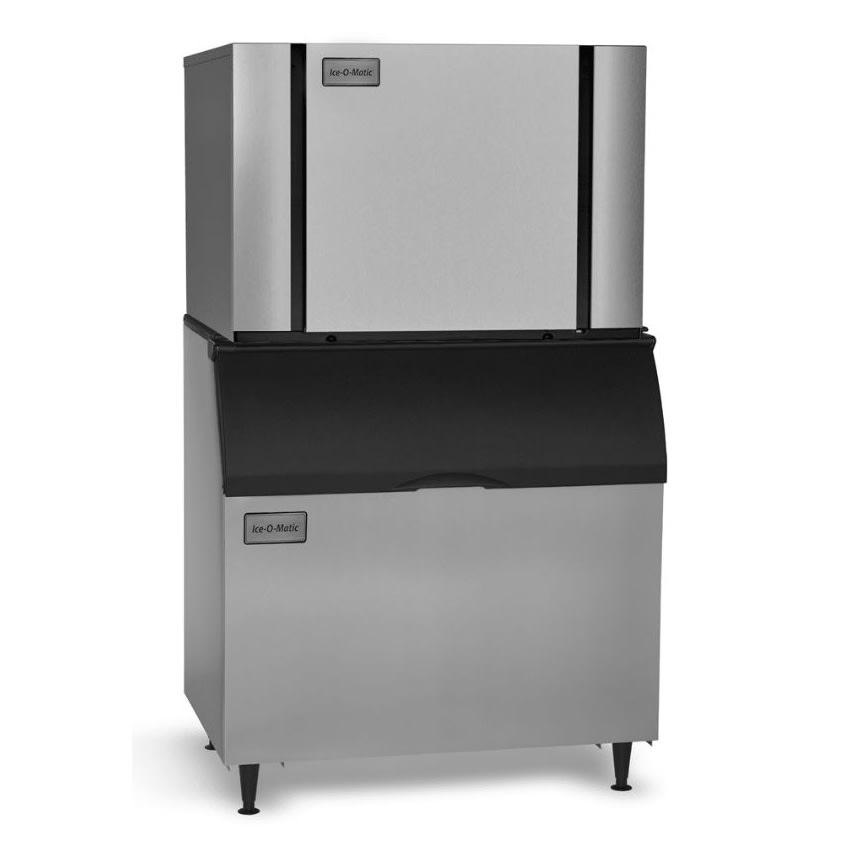

Ice-O-Matic CIM2046FW/B110PS 1860 lb Full Cube Ice Maker w/ Bin – 854 lb Storage, Water Cooled, 208-230v/1ph

$8,093.00$8,293.00

  • Part of the Elevation Series
  • Replaces ICE1806FW and ICE2106FW
  • 1,860-lb. maximum daily ice production
  • 1,690-lb. daily ice production at 90 degrees F air and 70 degrees F water
  • Water-cooled system
  • Produces full-cube ice
  • Full-cube size: 7/8 in. x 7/8 in. x 7/8 in.
  • Compact design maximizes space
  • Dual exhaust system vents decrease potential exhaust obstruction
  • LED status display
  • PURE ICE antimicrobial defense
  • 1-touch descaling and sanitizing
  • Warewasher-safe food zone components
  • Harvest Assist
  • Ideal ambient air temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal incoming water pressure: 20-60 PSI
  • 27,500-BTU heat transfer capacity
Clear
SKU: Ice-O-MaticCIM2046FW/B110PS Category:

Description

Ice-O-Matic CIM2046FW/B110PS Description

The Ice-O-Matic CIM2046FW/B110PS ice machine storage bin is good for bars and quick-service restaurants, where it can be used to prepare full-cube ice that is great for gourmet drinks due to its large size and appealing visual appearance. When operating under ideal conditions, the head can make as much as 1,860 pounds of ice in a day. Its one-touch functionality for sanitization and descaling simplifies the cleaning process to help reduce user labor.

Increasing service life, the Ice-O-Matic CIM2046FW/B110PS ice maker and bin unit has an aluminum finish to resists corrosion and rusting. Foam insulation surrounds the bin to boost thermal retention and decrease ice melting. For balancing on sloped surfaces, the ice machine is fitted with a set of 6-inch adjustable legs.

Ice Maker

  • Part of the Elevation Series
  • Replaces ICE1806FW and ICE2106FW
  • 1,860-lb. maximum daily ice production
  • 1,690-lb. daily ice production at 90 degrees F air and 70 degrees F water
  • Water-cooled system
  • Produces full-cube ice
  • Full-cube size: 7/8 in. x 7/8 in. x 7/8 in.
  • Compact design maximizes space
  • Dual exhaust system vents decrease potential exhaust obstruction
  • LED status display
  • PURE ICE antimicrobial defense
  • 1-touch descaling and sanitizing
  • Warewasher-safe food zone components
  • Harvest Assist
  • Ideal ambient air temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal incoming water pressure: 20-60 PSI
  • 27,500-BTU heat transfer capacity

Ice Bin

  • 854-lb. bin capacity
  • Polyethylene bin liner with foam insulation
  • Aluminum is corrosion resistant
  • Top-hinged door streamlines ice removal
  • Adjustable, 6-in. legs compensate for sloped surfaces

Dimensions & Utilities

  • Ice maker: 48.25 in. W x 24.25 in. D x 26.8 in. H
  • Ice bin: 48 in. W x 31 in. D x 50 in. H
  • 18.1 A, 3.72 kW
  • 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker, water cooled, self-contained condenser, dual exhaust top/side discharge, 48″W, approximately 1860 lb production/24 hours at 70°/50° (1690 lb at 90°70°), full size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE (Replaces ICE1806FW / ICE2106FW); Ice Bin: 854 lb storage capacity, 48″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6″ legs, NSF
