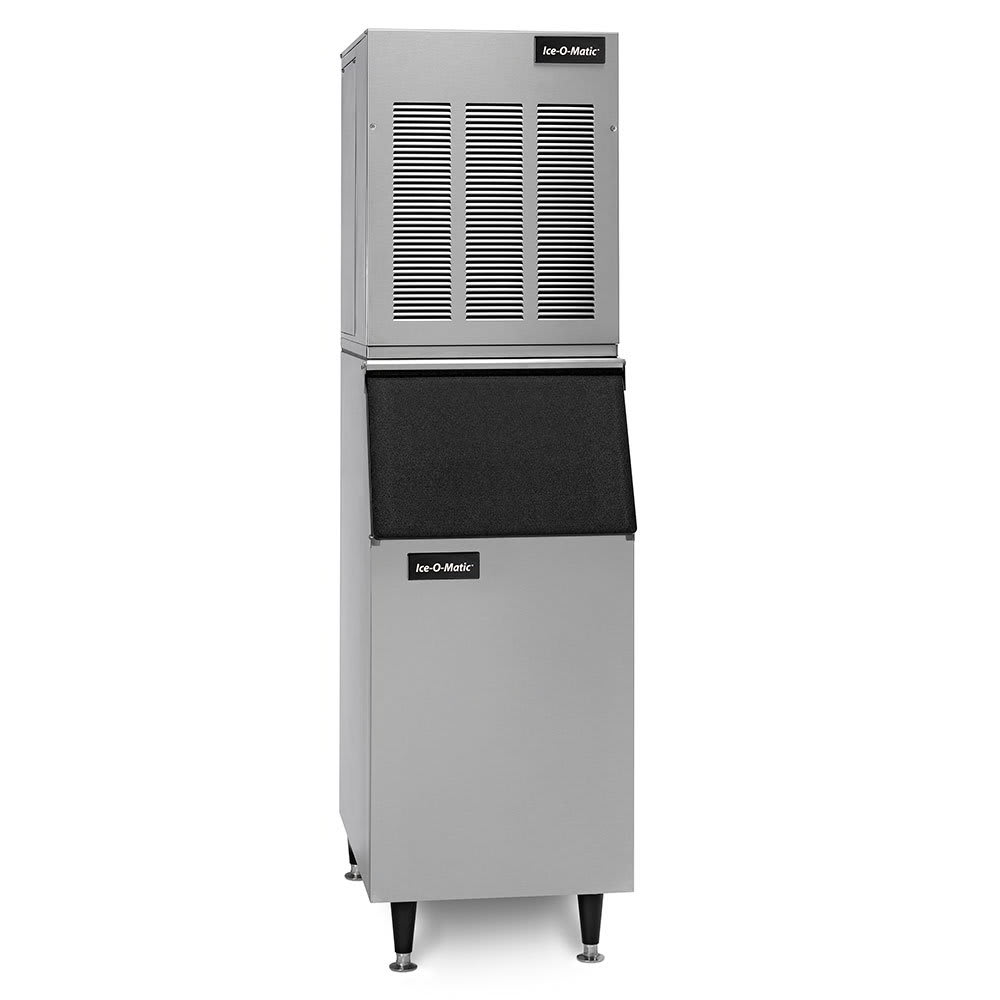

Ice-O-Matic GEM0650A/B55PS/KBT19 Description
Operating with a self-contained condenser, the Ice-O-Matic GEM0650A/B55PS/KBT19 ice maker with bin has a compact footprint that saves space and simplifies installation. It produces nugget ice, a type of that’s enjoyed by diners due to its soft, chewable texture. Built with industrial grade roller bearing and a stainless steel auger and evaporator, this unit is designed to withstand recurrent use in an intensive environment. Adding a polished and professional appearance to the unit, its exterior features a stainless steel finish.
Keeping it ready to serve during periods of increased demand, the Ice-O-Matic GEM0650A/B55PS/KBT19 ice machine head with bin can store as much as 510 pounds of pre-made ice. Lined with foamed polyethylene, the bin preserves the ice to keep it from melting as it’s stored. Beneath the bin, it’s supported with 6-inch legs, and to keep the unit level, users can adjust the legs.
Ice Maker Product Details
- Pearl Ice series
- Air cooled
- Produces soft, chewable nugget ice
- Ice cube dimensions: 1/2 in. W x 3/8 in. D
- 740-lb. maximum daily ice production
- Self-contained condenser eases operation
- Consumes less water and power than a comparable cube-style ice maker
- Stainless finish for professional appearance
- 21-in. width doesn’t waste space
- SystemSafe function prevents damage to gearbox by monitoring load size
- Low water, no water, and adverse water conditions tracked by water sensor
- Stainless steel auger and evaporator resist rust and corrosion
- Industrial grade roller bearings withstand heavy use
- Heavy-duty gear box resists wear
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-120 PSI
- Heat displacement: 5,600 BTU
Bin Product Details
- Includes KBT19 bin top for mounting 22-in. ice maker on 30-in. bin
- 510-lb. storage capacity
- Durable aluminum exterior finish
- Slope front door is top hinged
- Foam insulated polyethylene liner keeps ice chilled
- Compact bin is 31-in. deep to hold a large amount of ice
- Adjustable 6-in. legs support the bin
Dimensions & Utilities
- Head: 21 in. W x 24 in. D x 27 in. H
- Bin: 30 in. W x 30 in. D x 50 in. H
- Potable water inlet: 3/8 in.
- Water outlet: 3/4 in.
- 21 A, 5.31 kW
- 115 V/60 Hz/1 ph
Pearl Ice Maker, soft, chewable ice crystals, air-cooled, self-contained condenser, approximately 740 lb/336 kg production/24 hours, durable stainless finish, 115v/60/1-ph, 21.0 amps, cUL, NSF with ice bin, 510 storage capacity, top-hinged front-opening, durable stainless finish exterior, molded plastic door
