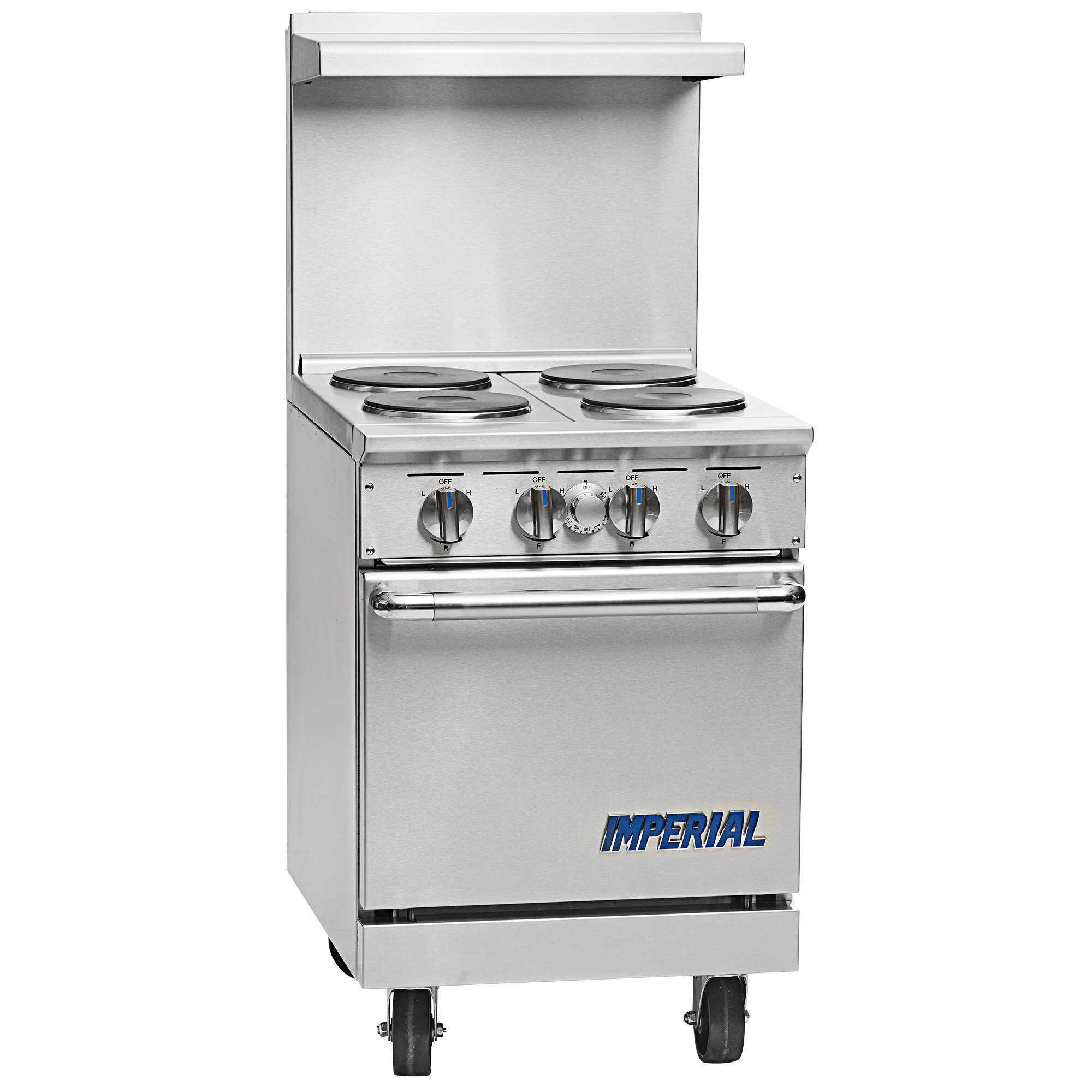

Imperial IR-4-E 24″ 4 Sealed Element Electric Range

Description

Imperial’s IR-4 4-burner natural gas range can put out dishes fast in your restaurant or mom-and-pop diner. This model has a stainless steel front, sides, backguard, shelf, landing edge and kick plate that can be cleaned easily and resistant to scratches and dents. Welded stainless steel seams give stability, and a stainless steel landing ledge makes for additional work space. An anti-clogging shield designed in the grate protects the pilot from grease and debris.

ROUND PLATE ELEMENTS – 2 KW round plate elements with easy-to-clean flat surface.
– Provides a solid flat surface for fast, even heating.
– Plates are 9″ (229) diameter for maximum pan contact.
– Solid top prevents spills from entering unit making clean-up easy.
– Infinite heat controls for maximum cooking flexibility

SPACE SAVER OVEN – High performance 5.3 KW element provides even heating throughout the oven interior.
– Unique baffle above the element distributes heat flow to provide even cooking temperatures throughout the oven.
– Splatter screen protects the element from spills.
– Space saver oven interior accommodates standard 18″ x 26″ (457 x 660 mm) sheet pans front-to-back.
– Oven is 20″ w x 26″ d x 14″ h (508 w x 660 d x 356 h mm).
– Heavy duty thermostat with temperature range from 150ºF to 500ºF (65ºC to 260ºC).
– Porcelainized sides, rear, deck and door lining.
– Stamped inner door liner provides extra strength while optimizing heat retention.
– One chrome oven rack is included.

Imperial IR Electric Series Exterior Features

• Durable cast aluminum with a Valox™ heat protection grip.
• Large 5″ (127 mm) stainless steel landing ledge for convenient plating
• 9″ (229 mm) sealed round plate elements with easy to cleanflat surface

Documents:

• Spec Sheet
• Start-Up Procedures
