Manitowoc Ice IYT0900A/D570 865 lb Indigo NXT Half Cube Ice Maker w/ Bin – 532 lb Storage, Air Cooled, 208-230v/1ph

The Manitowoc Ice IYT0900A Indigo NXT ice maker with bin produces half-dice that measures ³/₈ inch by 1¹/₈ inches by ⁷/₈ inch. These cubes work best in drinks and can also be used in bagged applications. In 24 hours, the unit can make 865 pounds of ice in ideal ambient conditions, though the amount it produces daily can be changed depending on desired volume or time of day. Operators can keep up with the unit’s status on the easyTouch display, and it runs 24-hour maintenance and diagnostics to ensure it is functioning properly. To measure water quality and ensure it is at the correct level, this Manitowoc Ice IYT0900AD570 ice machine head has an acoustical ice sensing probe.

The Manitowoc Ice D570 ice bin has a 532-pound storage capacity and includes an ice scoop that holds 5.3 pounds with a lip that keeps ice from falling out. Thumb and knuckle guards in the scoop prevent hands from coming in contact with ice, while the bin door has front and side grips that ensure it is comfortable to open from any angle. After the door is raised, it stays in position so users do not have to hold it open.

Ice Maker Details

• 865-lb. maximum daily ice production
• 750-lb. AHRI-certified daily ice production
• Makes half-dice ice
• Half-dice ice size: ³/₈ in. x 1¹/₈ in. x ⁷/₈ in.
• Ice production is programmable based on time of day or daily volume
• Icon-based easyTouch display for set up, programming, and servicing
• 24-hr. preventive maintenance and diagnostics
• Acoustic ice sensing probe maintains water quality in all conditions
• Hinged, swing-out food zone door
• Removable distribution tube, curtain, water trough, and sensing probes
• AlphaSan antimicrobial agent on components slows bacteria growth
• Corrosion-resistant, clear-coated DuraTech exterior resists smudging
• Uses R410A refrigerant
• 12,700 average BTU; 14,800 peak BTU
• Ideal ambient air temperature: 40-100 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• Part of the Indigo NXT series

Ice Bin Details

• 532-lb. application capacity
• 17.9-cu.-ft. AHRI-certified capacity
• Arctic blue polyurethane liner simplifies cleaning
• 5.3-lb.-capacity ice scoop has built-in thumb and knuckle guards to prevent hands from contaminating ice
• Scoop’s molded-in retaining lip maximizes capacity
• Built-in grips on the sides and door front ensure convenient opening
• Door self-latches and stays in place during scooping
• Foam door insulation reduces condensation and maintains ice form
• 6-in. adjustable chrome legs

Dimensions and Utilities

• Ice Maker
  • 30 in. W x 24.5 in. D x 26.5 in. H
  • 9.5 A, 4.58 kW
  • 208-230 V/60 Hz/1 ph
• Ice Bin
  • 30 in. W x 34 in. D x 50 in. H

From The Manufacturer

Indigo NXT Series Ice Maker w/ Ice Bin, cube-style, air-cooled, self-contained condenser, 30″W x 24-1/2″D x 26-1/2″H, production capacity up to 865 lb/24 hours at 70°/50° (750 lb AHRI certified at 90°/70°), DuraTech exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR; Ice Bin: 30″W x 34″D x 50″H, with side-hinged front-opening door, side grips, AHRI certified 532 lb ice storage capacity (17.9 cu. ft.), for top-mounted ice maker, Duratech exterior, NSF

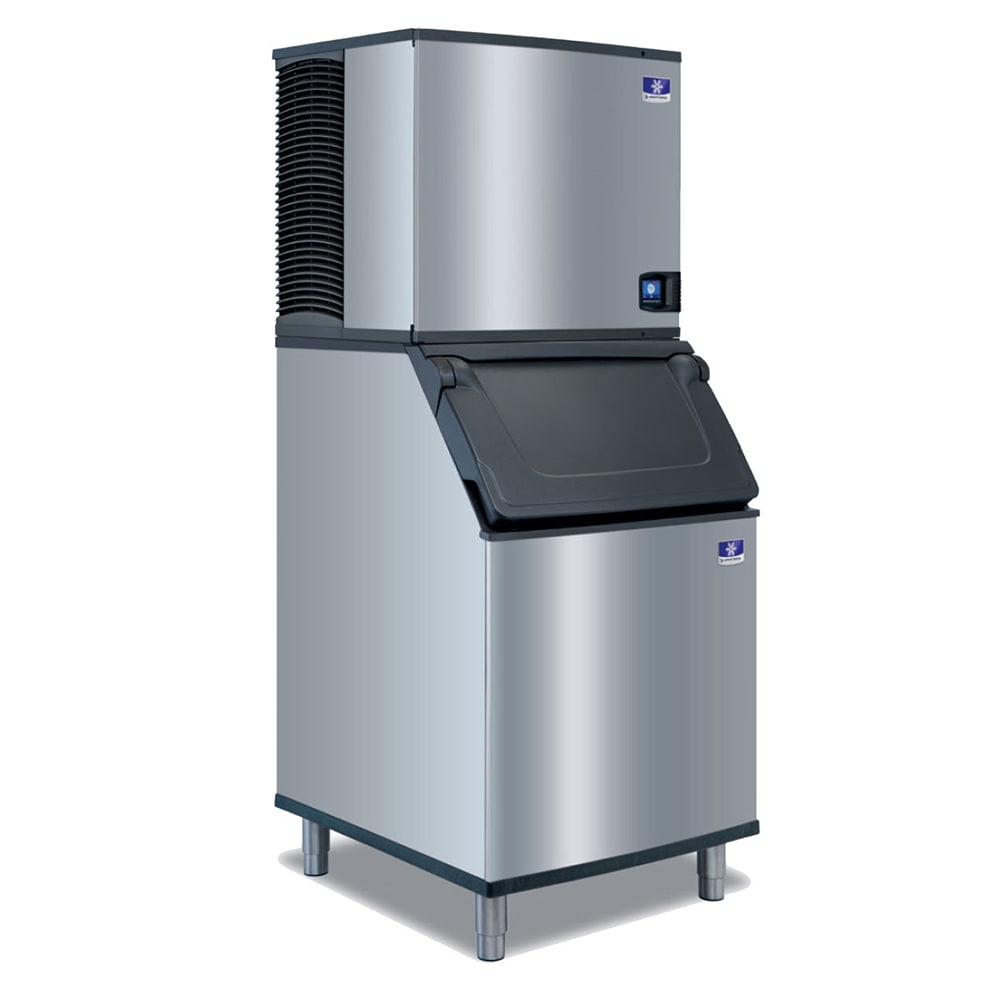

*Image may not depict product color, inclusions or accessories.
