Description

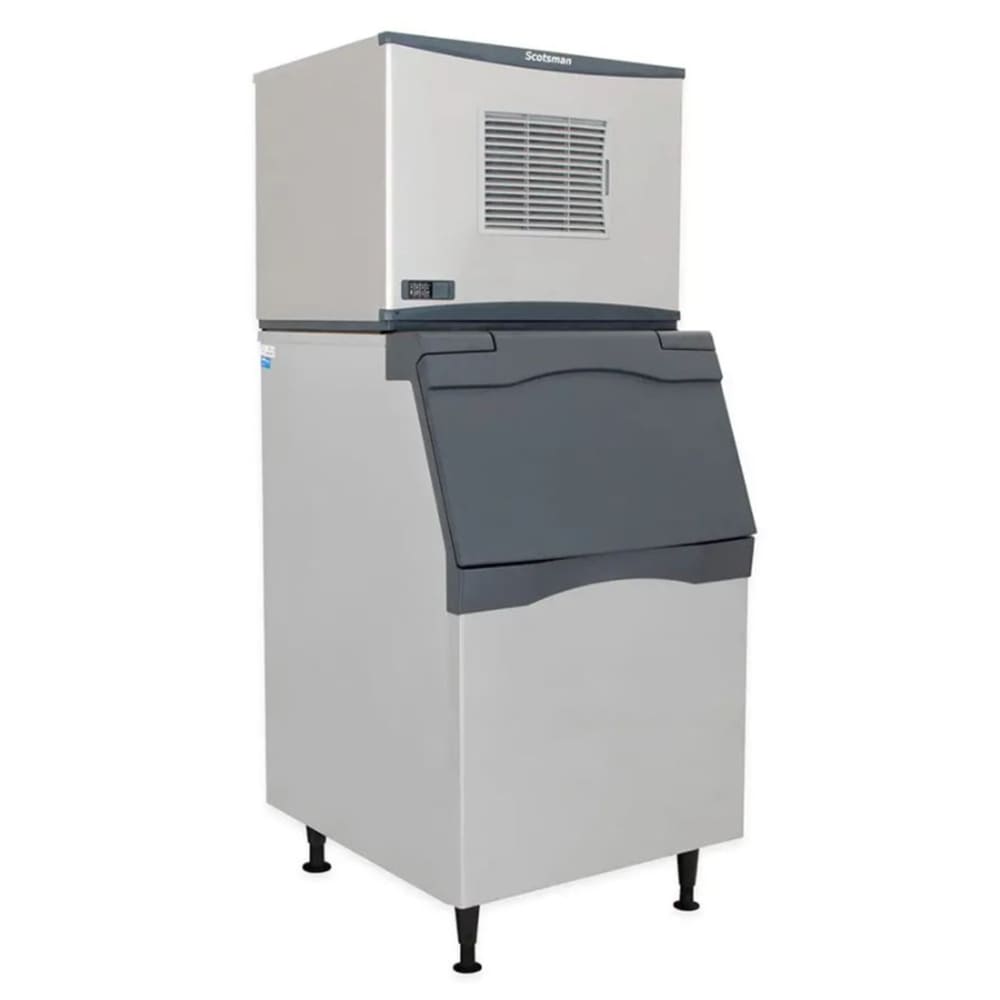

Scotsman NS0622A-1/B530P/KBT27
The Scotsman NS0622A-1/B530P/KBT27 ice machine with bin is protected by AgION antimicrobial to slow the growth of germs; cleaning is performed at the push of a button for quick maintenance. Cooling with R404A refrigerant, this unit’s air-cooled refrigeration system is self-contained, so it’s simple to install and reduces the risk of cross contamination. This ice maker can produce between 547 and 643 pounds of ice per day depending on operating conditions.
To prevent ice from melting, the Scotsman NS0622A-1/B530P/KBT27 nugget ice maker with bin is insulated with polyurethane; its bin is lined with sanitary polyethylene. It accommodates 536 pounds of ice and comes with a scoop for sanitary retrieval. After the scoop is used, it can be stored in the built-in holder. The bin’s baffle can be removed for cleaning using no tools, and to access ice, the top-hinged door opens from the front.
Ice Machine Details
- Part of the Prodigy Plus series
- 643-lb. maximum daily ice production
- 547-lb. AHRI-certified daily ice production
- Produces Original Chewable Ice
- Ice dimensions: 7/16 in. x 5/16 in. x 3/8 in.
- Self-contained, air-cooled refrigeration system
- Cools with R404A refrigerant
- Cleans with a single touch
- AgION antimicrobial inhibits germ growth
- Bearings are sealed and require no maintenance
- AutoAlert indicating lights
- Warranty information displayed with QR code
- Rust-resistant stainless steel evaporator and auger
- Heavy-duty stainless steel finish
- Ideal incoming air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 7,100-BTU heat transfer capacity
Ice Bin Details
- 536-lb. application capacity
- Door is top hinged and opens from the front
- Removable baffle requires no tools
- Polyurethane insulation provides dependable storage
- Made of rotocast plastic
- Bin lined with polyethylene
- Ice scoop for sanitary retrieval
- Scoop holder
- 6-in. legs
- KBT27 top kit secures ice maker to bin
Dimensions & Utilities
- Ice maker: 22.9 in. W x 24 in. D x 23 in. H
- Ice bin: 30 in. W x 34 in. D x 50 in. H
- 16 A
- 115 V/60 Hz/1 ph
From The Manufacturer
Prodigy Plus Ice Maker with Ice Bin, nugget style, Original Chewable Ice, air-cooled, self-contained condenser, production capacity up to 643 lb/24 hours at 70°/50° (547 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 16.0 amps, NSF, cULus, engineered and assembled in USA; Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30″ width, rotocast plastic construction, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6″ legs, NSF, engineered and assembled in USA; Bin Top, for use with all 22″ cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins
*Image may not depict product color, inclusions or accessories.
