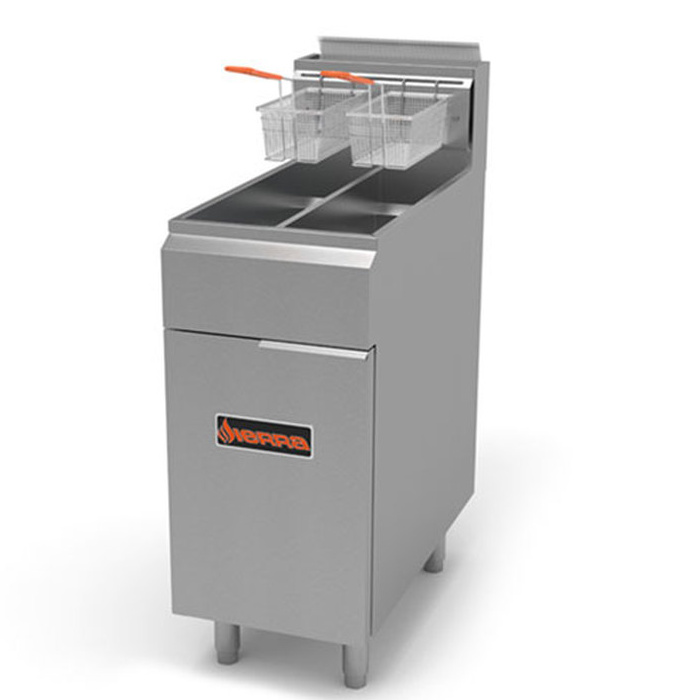

The Sierra all-purpose fryers feature outstanding reliability and durability, capable of cooking a wide variety of fried foods with consistent uniformity and great taste. The split tank design offers the Flexibility of using only half the fryer. Highly efficient cast iron burners and stainless steel tubes create a large heat transfer area for even heat distribution. Our durable temperature probes sense temperature changes and activate a quick burner response. The temperature for the SRF-25/25 ranges from 200°F (93°C) to 400°F (204°C). Each tank is regulated by an independent Millivolt safety control system. High BTU power for rapid recovery. Every inch of the frypots and cold zones can be cleaned and wiped down by hand. The ample cold zones and forward sloping bottoms help collect and remove sediment from the frypots to safeguard oil quality and support routine frypot cleaning. 6″ swivel casters are optional. (2 locking, 2 non-locking).
|MODEL NUMBER||SRF-25/25 (NG OR LP)|
|EXTERNAL DIMENSIONS WxDxH||15.5” X 32.2” X 46“|
|NUMBER OF BURNERS||4|
|FRYER CAPACITY||2 X 25 LBS|
|BTU (EACH BURNER AT 5” W.C)||30,000|
|NET WEIGHT||170 LBS|
|SHIPPING WEIGHT||190 LBS|
Warranty: 12 months parts & labor. Additional fry tank warranty to the original purchaser only: If the fry tank has leaked because of a
manufacturing defect, as confirmed by an MVP Group servicer within the first two years of operation, MVP Group shall replace the fryer.
Refer to Operators Manual for full details. Freight or installation charges shall not be included.
Gas Connection: 2 x 3/4″ NPT at rear of appliance. The pressure regulator (supplied) is to be connected here by the installer.
Gas pressure: 5” W.C. – Natural Gas | 10” W.C. – Propane
Clearances: Combustible: 6 inches sides, 6 inches rear, 16 inches to adjacent open flame burner units | Non-combustible: 0 inches sides,
0 inches rear, 16 inches to adjacent open burner flame units. Specify type of gas and altitude, if over 2,000 feet, when ordering.
