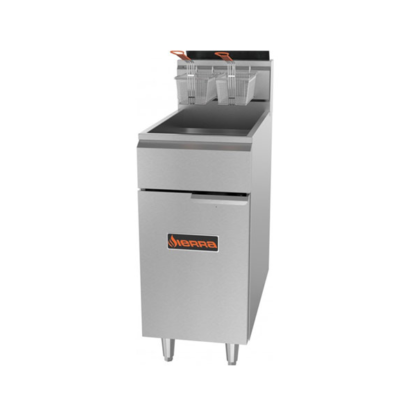

Sierra SRF-SC-40/50 Solid State Control Tube Fired Gas Fryer

$1,757.56

  • 120,000 BTU’s/hr. input.
  • Large cold zone area
  • Delivers heat through 6” x 2” 16-gauge stainless steel heat exchange tubes for even heat transfer and rapid temperature recovery.
  • 1.25″ stainless steel full port ball type drain valve.
  • Stainless steel door is reinforced for added strength with a heavy duty magnetic door catch.
  • All Stainless Steel cabinet.
  • Twin fry baskets with plastic coated handles. Stainless steel basket hanger, easily removable for cleaning.
  • Tank Cleaning Tool Kit consists of: Brush, Scoop & Clean-out Rod
  • Behind the door Solid State Control adjusts from 180°F (82°C) to 375°F (190°C) with standing pilot. Includes Melt Cycle, Drain Valve Interlock Switch, Power On/Off Switch.
  • Hi-limit shut-off protector shuts off gas combination valve and standing pilot.
  • Built in flue deflector
  • Nickel plated tube rack.
  • Set of four stainless steel adjustable legs
  • When placing an order, please specify your preferred configuration for LP (SRF-SC-40/50 LP) or for Natural gas (SRF-SC-40/50 NG).

Plant Based Pros is an Authorized Retailer of Sierra products.

Items purchased from Plant Based Pros are:

  • Brand new and in original packaging.
  • Covered by the full manufacturer warranty.
  • Qualified for manufacturer service and support.
  • Questions? Call  800-522-0517
SKU: N/A Category: Tags: , ,

Description

Sierra Range Split Pot Deep Fryer

The Sierra all-purpose fryers feature outstanding reliability and durability, capable of cooking a wide variety of fried foods with consistent uniformity and great taste.
Five, highly efficient tube fired, cast iron burners create a large heat-transfer area for reliable, even heat distribution. Our durable temperature probe senses temperature changes and activates a quick burner response. The temperature for the SRF-SC-75/80 ranges from 180°F (82°C) to 375°F (190°C). Includes safety control system. Every inch of the fry tank and cold zone can be cleaned
and wiped down by hand. The large cold zone and forward sloping bottom help collect and remove sediment from the fry tank to safeguard oil quality and support routine fry tank cleaning.

The SRF-SC-40/50 is shipped from the factory, ready for natural gas installation. An LP conversion kit is included with each unit.

Features:

  • Welded 16 gauge stainless steel tank with a super smooth machine finish ensures easy cleaning
  • Stainless steel front, door and sides, with galvanized back
  • Long lasting baffles are mounted in the heat exchange tubes to provide maximum heating and combustion efficiency
  • Standing pilot light design provides a ready flame when heat is required
  • Individual gas control valves act as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator and automatic main valve
  • Robertshaw snap action millivolt thermostat controls adjust from 200°F-400°F. No electrical hookup required
  • HI-limit shut-off protector shuts off gas combination valve and standing pilot
  • Built-in heat deflectors
  • Two nickel chrome plated oblong wire mesh baskets, with vinyl coated heat protection handles
  • Nickel chrome plated tube racks and drain extensions
  • 6″ adjustable stainless steel legs
MODEL NUMBERSRF-SC-40/50 (NG OR LP)
EXTERNAL DIMENSIONS WxDxH15.5” x 31.1” x 45.8“
NUMBER OF BURNERS4
FRYER CAPACITY40 – 50 LBS
BTU (EACH BURNER AT 5” W.C)30,000
TOTAL BTU120,000
NET WEIGHT140 LBS
SHIPPING WEIGHT158 LBS

Documents:

Additional information

Weight158 lbs
Gas Type

Liquid Propane, Natural Gas
