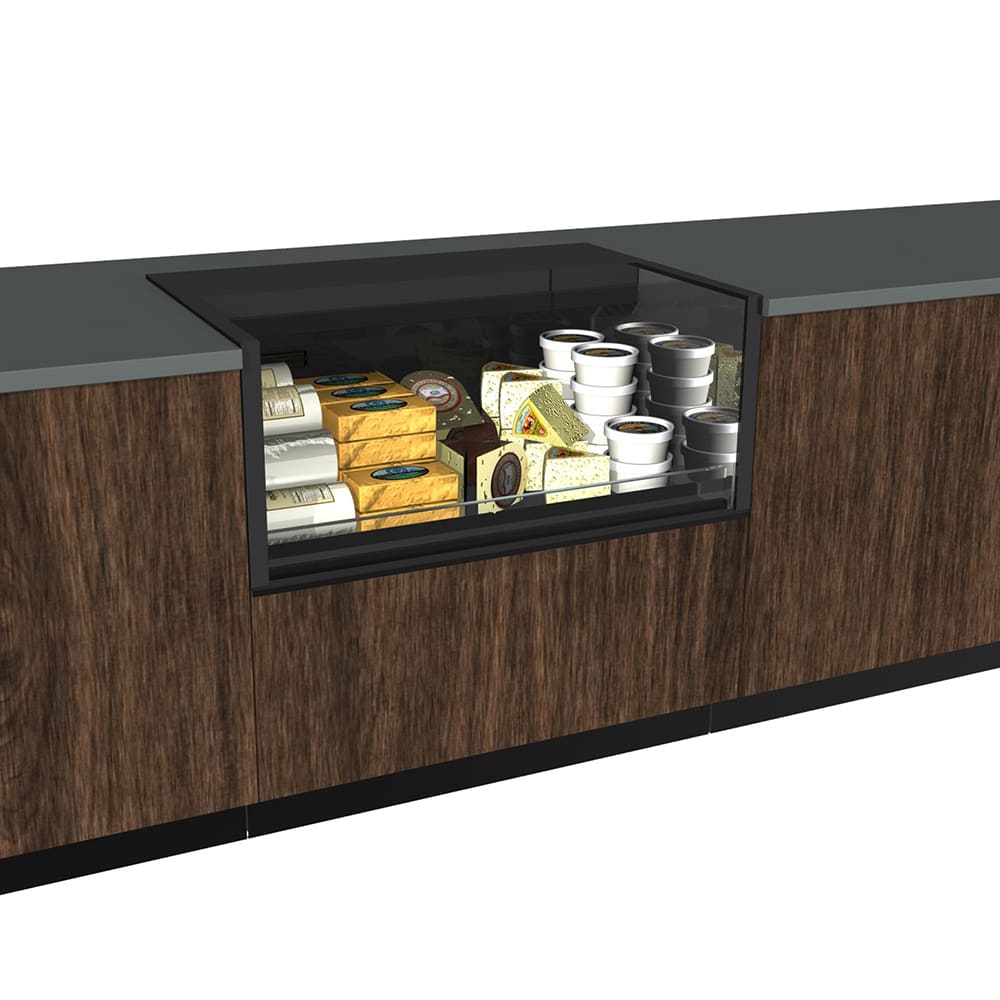

Structural Concepts CO3324R-CH 36 1/4″ Undercounter Open Air Cooler w/ (1) Level, 110v

$8,720.50

  • Part of the Oasis series
  • Black interior
  • Laminate exterior
  • 2 square full end panels
  • Top and front panels
  • Panels extend to blend with counters
  • Black toe kick panel
  • Temperature remains at 40 degrees F or lower
  • LED top light enhances display
  • Type 2 Breeze-E
  • EnergyWise self-contained refrigeration system
  • Rear-accessed condenser
  • Air rear intake and front discharge
  • Condensate pan
  • Flat front panel
  • ABS plastic tub
  • Blue Fin coated coil
  • Removable deck pans provide access to evaporator coil
  • Casters with levelers
SKU: StructuralConceptsCO3324R-CH Category:

Description

Structural Concepts CO3324R-CH Description

Great for grab-and-go applications, the Structural Concepts CO3324R-CH undercounter cooler has an open top for self-service. It has two square full end panels and a laminate exterior designed to be installed with preexisting countertops, and to ensure they match, the top and front panels extend over the end. If maintenance is needed, users can access the rear-mounted condenser by pulling the unit out on its casters, while the deck pans can be removed to reach the evaporator coil and refrigeration connections.

The Structural Concepts CO3324R-CH open-air merchandiser is fitted with LED top lights that brighten the display to catch customer attention. It maintains temperatures of 40 degrees Fahrenheit and below using an EnergyWise self-contained refrigeration system, and this unit measures 36.25 inches wide by 24.13 inches deep by 33.75 inches high. Its front includes a black toe kick panel that protects it from scuffs and marks.

Product Details

  • Part of the Oasis series
  • Black interior
  • Laminate exterior
  • 2 square full end panels
  • Top and front panels
  • Panels extend to blend with counters
  • Black toe kick panel
  • Temperature remains at 40 degrees F or lower
  • LED top light enhances display
  • Type 2 Breeze-E
  • EnergyWise self-contained refrigeration system
  • Rear-accessed condenser
  • Air rear intake and front discharge
  • Condensate pan
  • Flat front panel
  • ABS plastic tub
  • Blue Fin coated coil
  • Removable deck pans provide access to evaporator coil
  • Casters with levelers

Dimensions & Utilities

  • 36.25 in. W x 24.13 in. D x 33.75 in. H
  • 12 A, 1050 W
  • 110-120 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug

Oasis Self-Service Refrigerated Counter Height Case, 36-1/4″W, 33-3/4″H, Breeze-E (Type II) with EnergyWise self-contained refrigeration system, top light, black interior, (2) square full end panels, casters with levelers, top & front panels extend over end panels to blend with adjacent counters (supplied by others), black toe kick panel, cETLus, ETL-Sanitation

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
