True Refrigeration T-36-GC-S Description

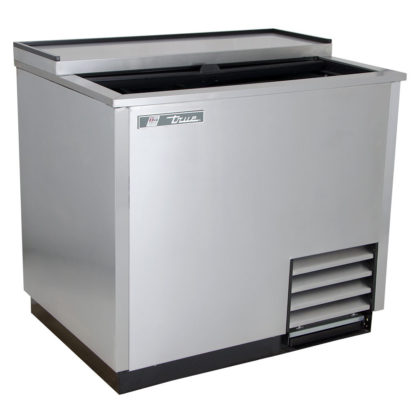

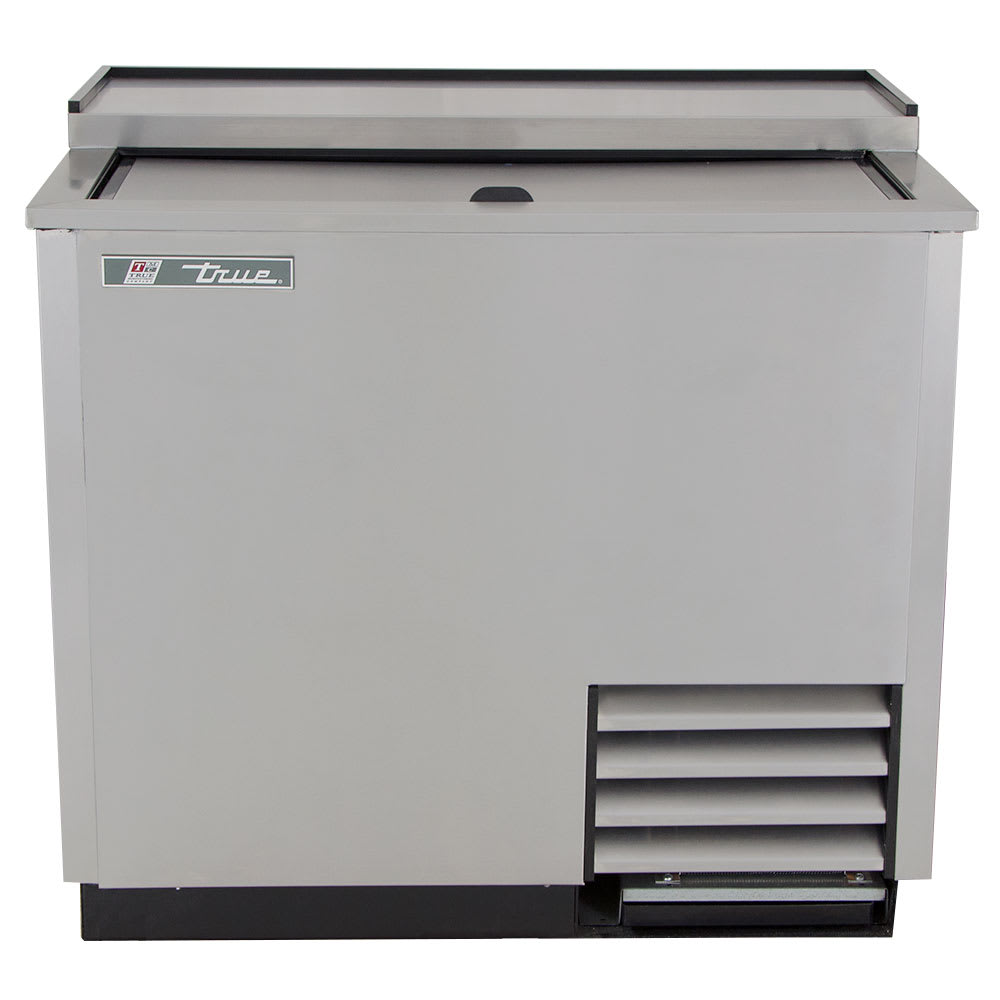

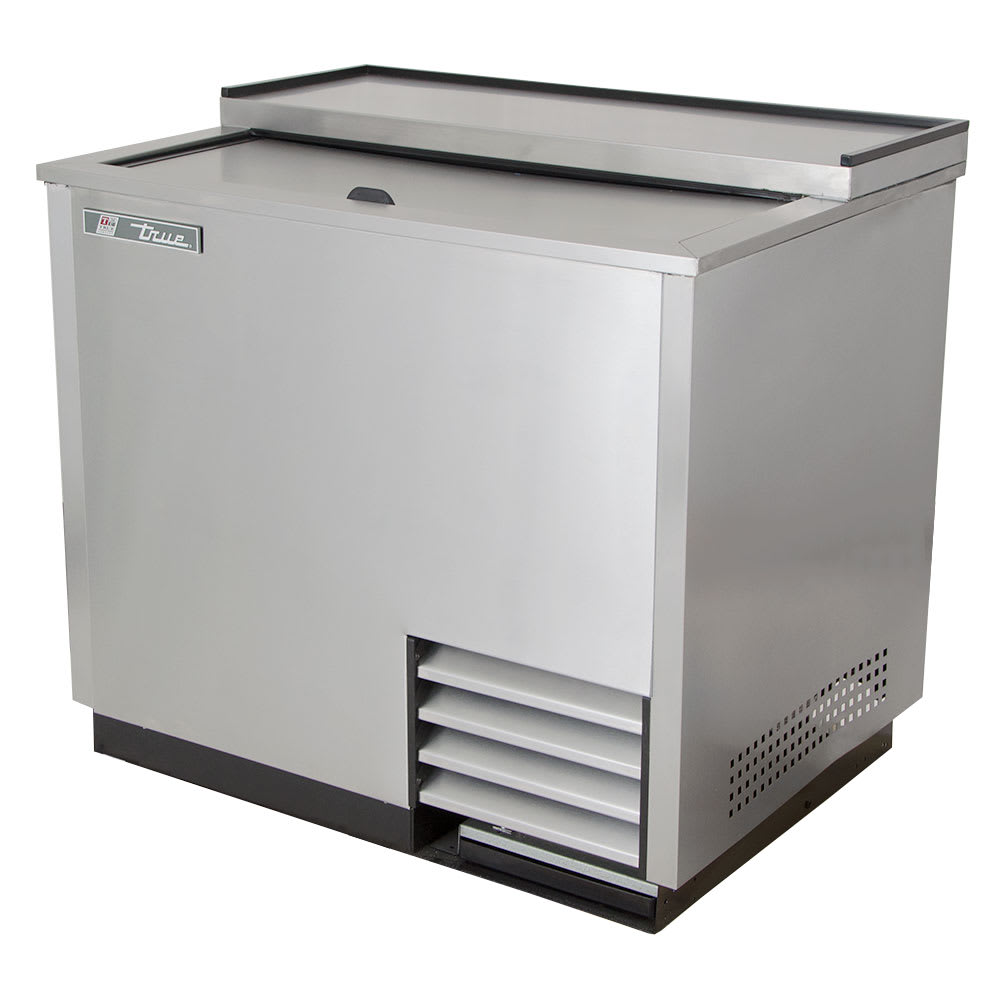

To resist corrosion and dents, the True T-36-GC-S-HC one-section glass chiller’s exterior is made of stainless steel with a galvanized steel interior. Its walls are foamed in place with polyurethane insulation to retain temperatures, and its welded steel frame rail is powder-coated black for further corrosion resistance. Inside, three PVC-coated wire shelves can hold (172) 10-ounce stein mugs or (180) 8-inch mugs.
To keep mugs at or below 0 degrees Fahrenheit, this True T-36-GC-S-HC glass chiller has a self-contained capillary tube system that uses R290 hydrocarbon refrigerant. A defrost cycle runs automatically at a set time and stops when a specific temperature is reached. Its condensing unit slides out for convenient access when servicing, and evaporator and condenser fan motors are electronically commutated, reducing energy consumption and heat production while efficiently distributing air.
- Stainless steel exterior resists dents and scratches
- Interior is constructed of strong galvanized steel
- Polyurethane foam insulates the cabinet
- Durable, welded steel frame rail is black powder coated to resist corrosion

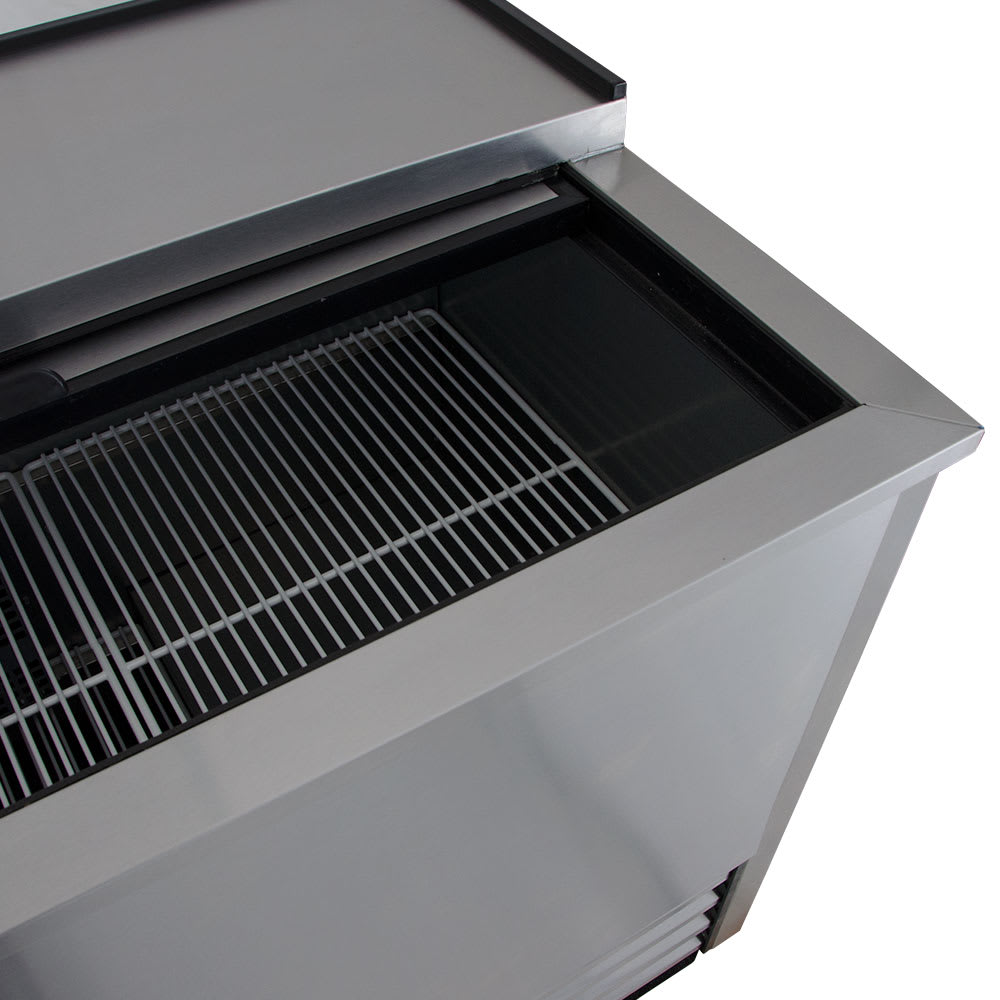

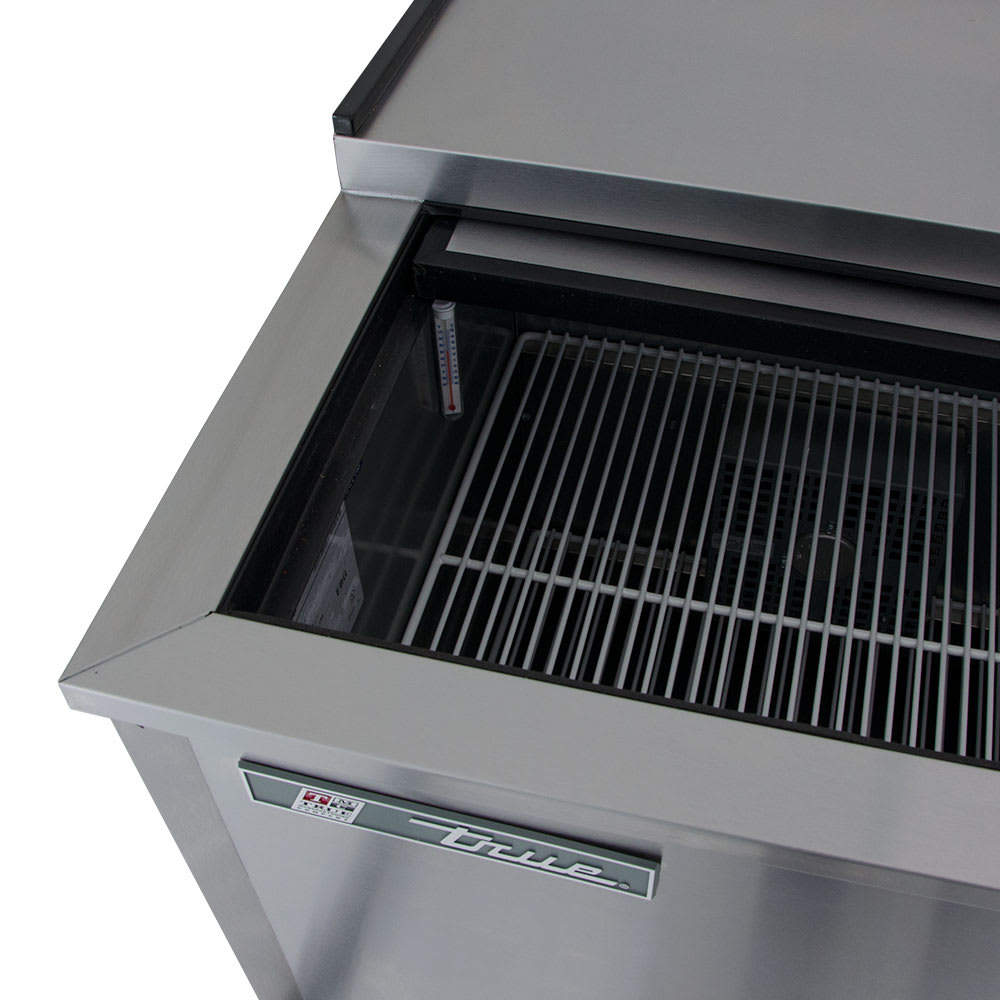

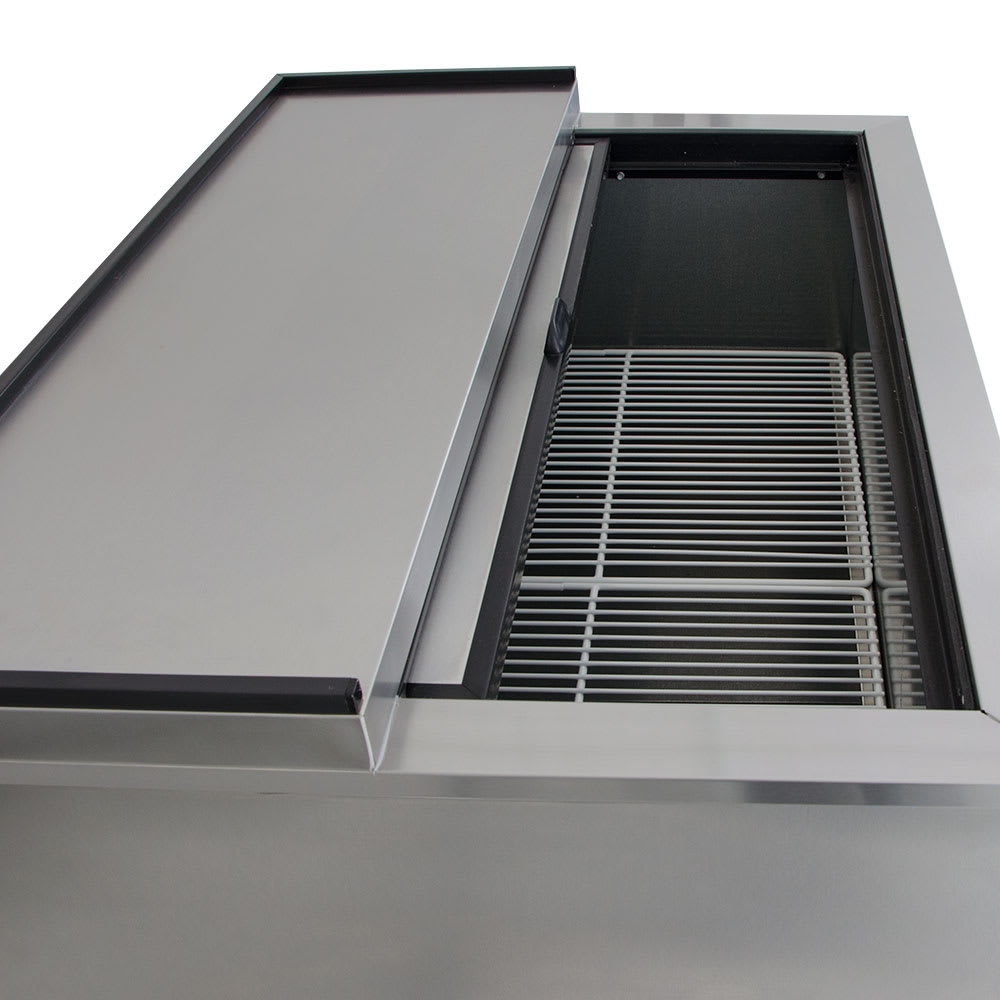

- 3 PVC-coated wire shelves support mugs
- Accommodates (172) 10-oz. steins or (180) 8-in. mugs
- R290 hydrocarbon refrigerant is controlled by a self-contained capillary tube system
- Operating temperature: 0 degrees F

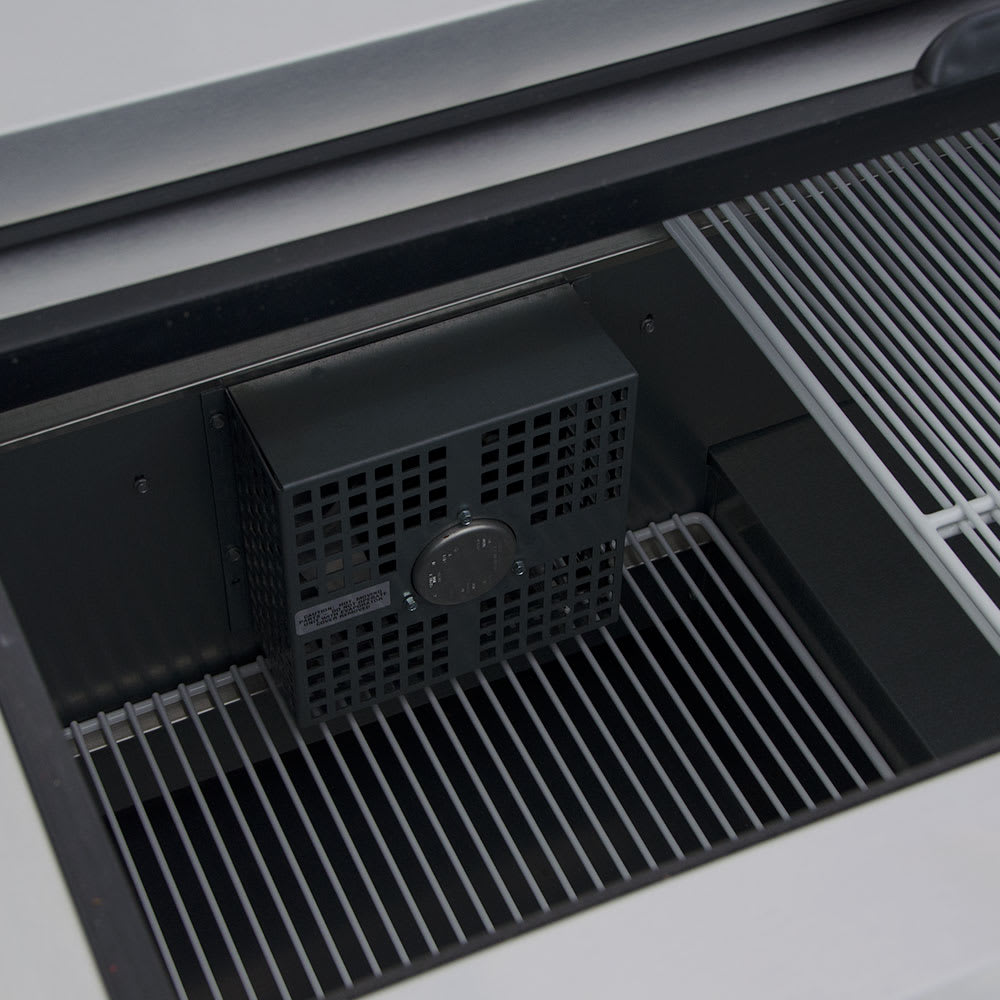

- Condenser and evaporator fan motors are electronically commutated to efficiently circulate air
- Time-initiated, temperature-terminated automatic defrost cycle prolongs life

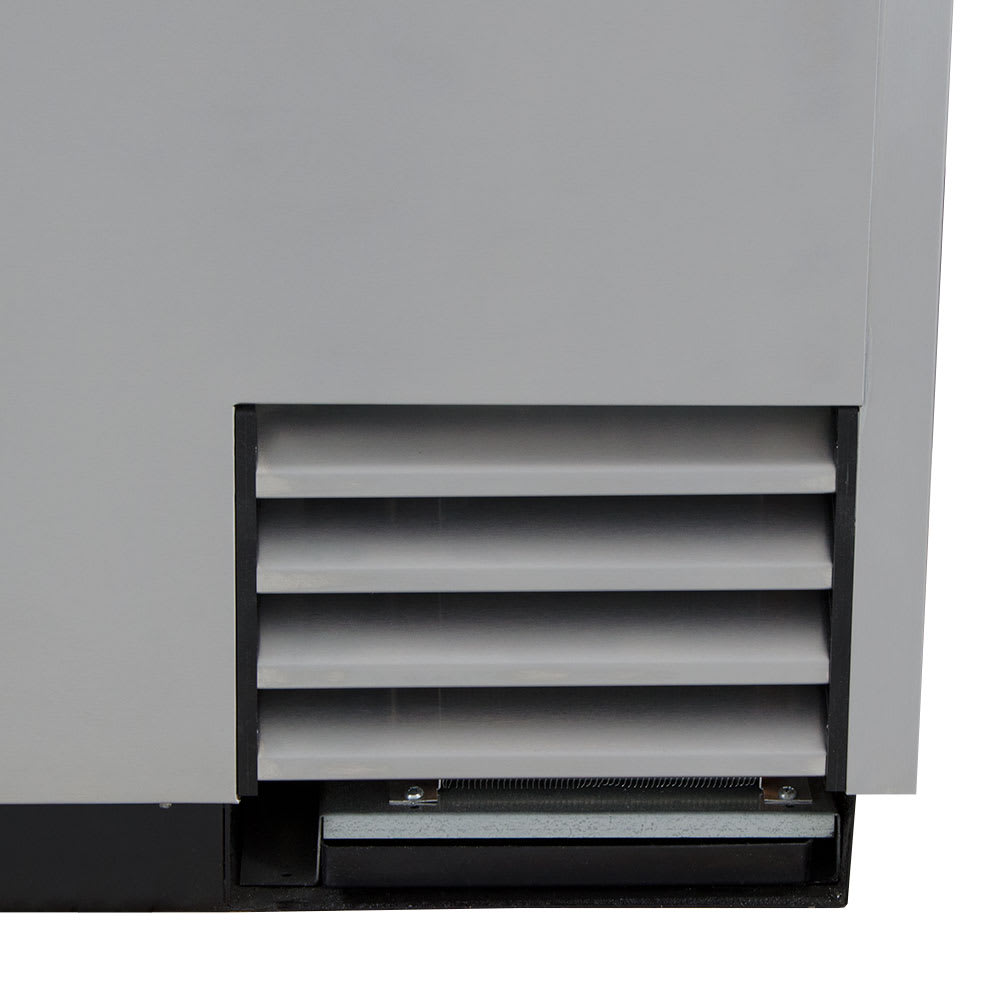

- Slide-out condensing unit facilitates maintenance
- Forced-air cooling directs air through the cabinet
- Epoxy-coated, corrosion-resistant evaporator
Dimensions & Utilities
- 2 top shelves: 161/4 in. W x 193/8 in. D
- 1 bottom shelf: 181/2 in. W x 195/16 in. D
- Overall: 363/4 in. W x 275/8 in. D x 333/8 in. H
- 2.3 A, 1/4 HP

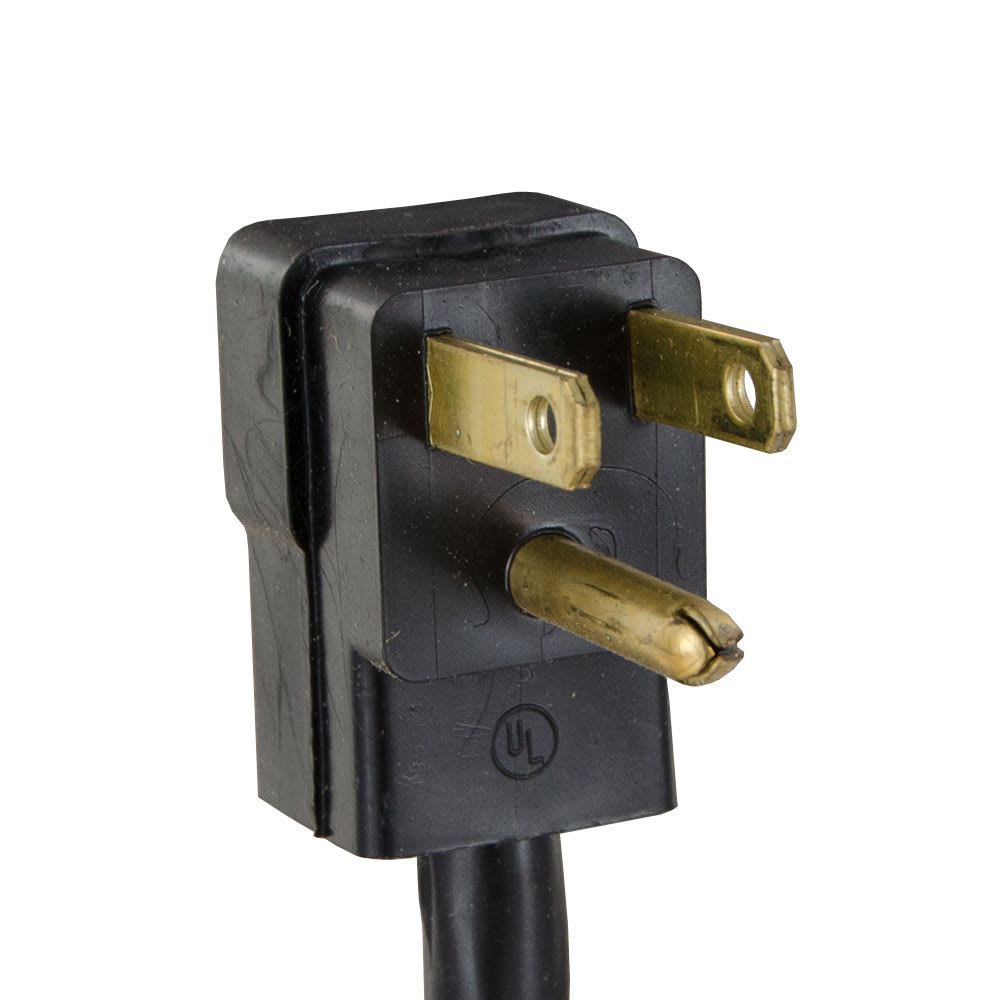

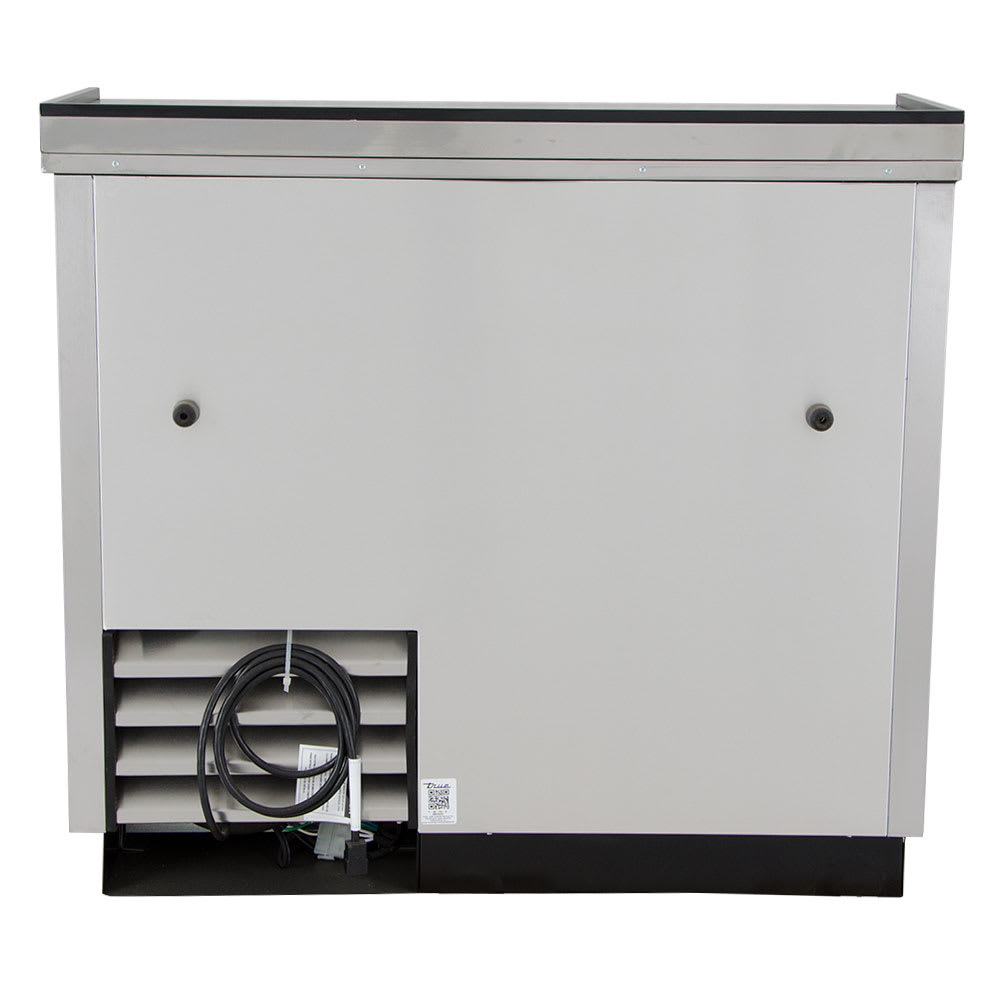

- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
Glass and Plate Chiller/Froster, 0°F & below, capacity: (180) 8″ mugs or (172) 10 oz. steins, (3) adjustable PVC coated shelves, auto defrost, stainless steel counter top & lid, deep well design, galvanized interior, stainless steel exterior, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.3 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
