Description

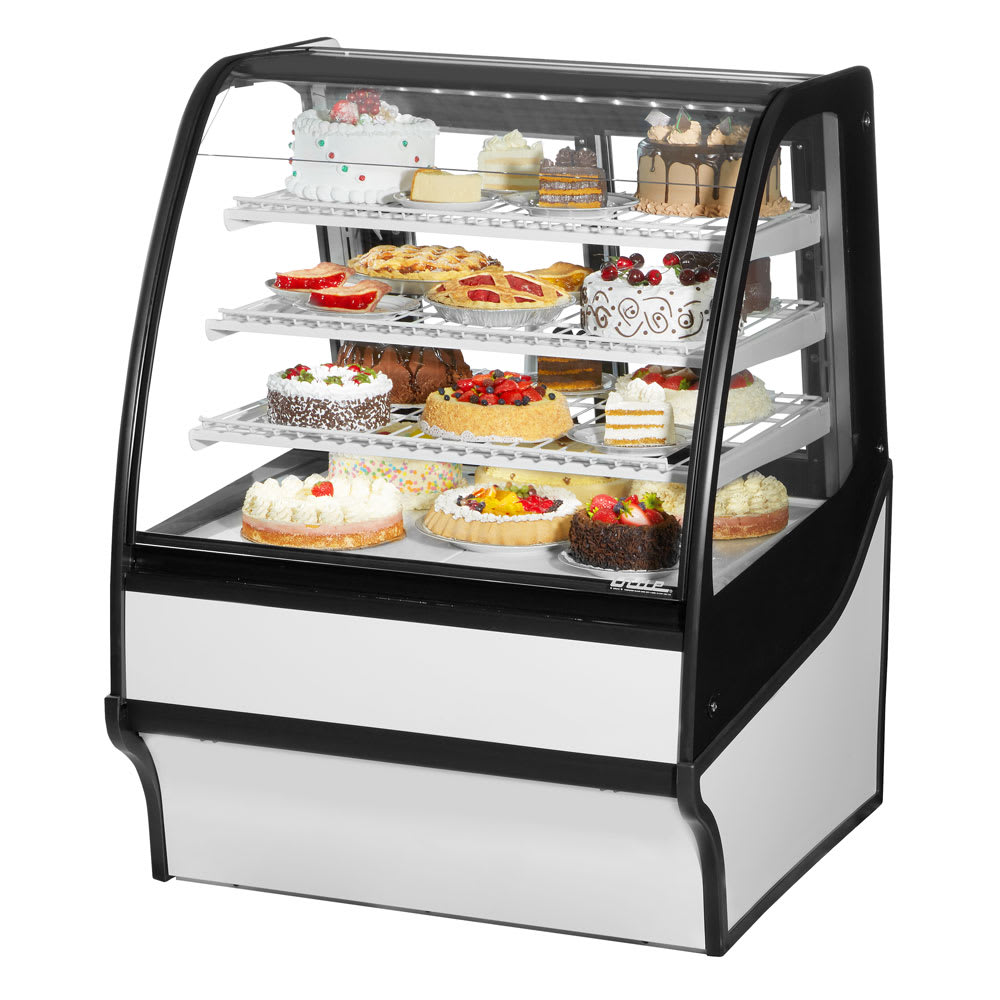

The True TDM-R-36-GE/GE-W-W full-service bakery case accommodates two 18-inch by 26-inch, two 9-inch by 26-inch, and four 12-inch by 18-inch display pans. Adjustable to maximize storage, three PVC-coated wire shelves can each support 150 pounds of product. Its white powder-coated exterior is rounded, and the side and front panels are constructed of matching aluminum. Made of single-pane tempered glass, the front and side panels enable product visibility. The curved glass front flips up for access to product, and the rear glass doors slide open and close.
Foamed-in-place polyurethane insulation prevents cold air from seeping out of the True TDM-R-36-GE/GE-W-W full-service bakery case, and its refrigeration system has a set temperature range from 33 to 41 degrees Fahrenheit. A self-contained capillary tube system uses environmentally friendly R290 hydrocarbon refrigerant, while reversing condenser fan motors prevent dirt and debris from gathering on the condenser coil. To simplify maintenance, the condensing unit slides out, and the evaporator is coated in corrosion-resistant epoxy.
Product Details
- Accommodates (2) 18-in. x 26-in., (2) 9-in. x 26-in., and (4) 12-in. x 18-in. display pans
- 3 adjustable wire shelves are coated in PVC
- Shelves support 150 lbs. each
- White exterior is rounded and coated in powder to combat corrosion
- Side and front panels are constructed of white aluminum
- Interior is composed of cold-rolled steel with a white powder coating
- Single-pane tempered glass forms the front curved glass and side panels
- Front glass opens completely for access to product
- 2 rear doors slide open and close
- 12-in.-long aluminum handles are fitted on the rear doors
- Insulated with polyurethane insulation that is foamed in place
- LED interior lighting
Refrigeration System
- Electronic temperature control
- Self-contained capillary tube system uses R290 hydrocarbon refrigerant
- Condenser fan motors reverse to keep condenser coils clean
- Temperature holding range: 33-41 degrees F
- Evaporator coated in corrosion-resistant epoxy
- Pull-out condensing unit slides out for servicing
Dimensions & Utilities
- 361⁄4 in. W x 39 in. D x 491⁄8 in. H
- 10 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug
Display Merchandiser, refrigerated, 36-1/4″W, self-contained refrigeration, curved glass front, glass sides, (2) rear sliding glass doors, (3) tiered levels of adjustable white PVC coated wire shelves, LED interior lighting, white powder coated exterior, white powder coated interior, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 10.0 amps, NEMA 5-15P, CE, cULus, UL EPH Classified, Made in USA
