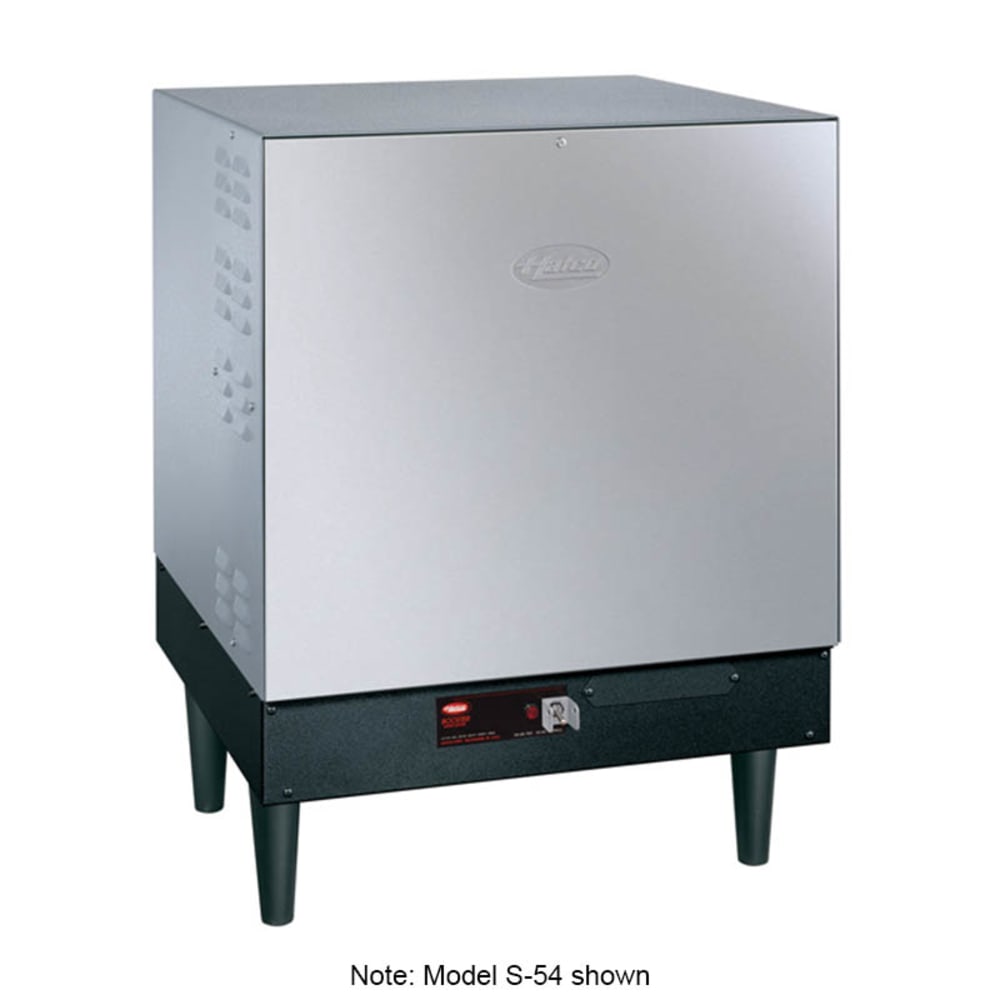

Hatco S-36 Imperial Booster Water Heater, 16 Gallon, 36 kW

$4,568.30

  • 16-gal. capacity
  • Maximum 361 GPH at 40-degree-F rise
  • Maximum 206 GPH at 70-degree-F rise
  • Holds water temperature at 180 degrees F
  • Built-in heat trap
  • Fiberglass insulation
  • Front panel is made of durable stainless steel
  • Silver powder-coated, hammertone finish
  • Factory pre-plumbed and pre-wired for rapid installation
  • Cuts off when the temperature is high or when the water is low, protecting elements
  • Pilot indicator light
  • Calibrated immersion thermostat
  • Temperature-relief valve and pressure-reducing valve for efficient operation
  • 2 pressure gauges
  • Power switch
  • Limestone-resistant tank
SKU: HatcoS-36 Category:

Description

Hatco S-36

With its Castone-lined tank, the Hatco S-36 Imperial booster water heater resists limescale buildup over time. The front panel is made of heavy-duty stainless steel that expedites cleaning and the powder-coated, hammertone-finished body resists dings and scratches. This unit-maintaining sanitizing water temperatures at 180 degrees Fahrenheit-is operated by using the temperature-relief valve and the pressure-reducing valve.

The Hatco S-36 booster water heater holds 16 gallons of hot water inside using its built-in heat trap and fiberglass insulation. For intuitive operation, this unit can be turned on and off with the click of a switch. Optimal conditions in this unit can be monitored with the pilot indicator light and two pressure gauges.

Product Details

  • 16-gal. capacity
  • Maximum 361 GPH at 40-degree-F rise
  • Maximum 206 GPH at 70-degree-F rise
  • Holds water temperature at 180 degrees F
  • Built-in heat trap
  • Fiberglass insulation
  • Front panel is made of durable stainless steel
  • Silver powder-coated, hammertone finish
  • Factory pre-plumbed and pre-wired for rapid installation
  • Cuts off when the temperature is high or when the water is low, protecting elements
  • Pilot indicator light
  • Calibrated immersion thermostat
  • Temperature-relief valve and pressure-reducing valve for efficient operation
  • 2 pressure gauges
  • Power switch
  • Limestone-resistant tank

Dimensions & Utilities

  • 28.53 in. W x 22.75 in. D x 31.03 in. H
  • 173 A, 36 kW

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 36-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6″ plastic non-adjustable legs, Castone tank, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Documents:

Additional information

Voltage

208 V / 1 Ph, 208 V / 3 Ph, 240 V / 1 Ph, 240 V / 3 Ph, 480 V / 3 Ph
