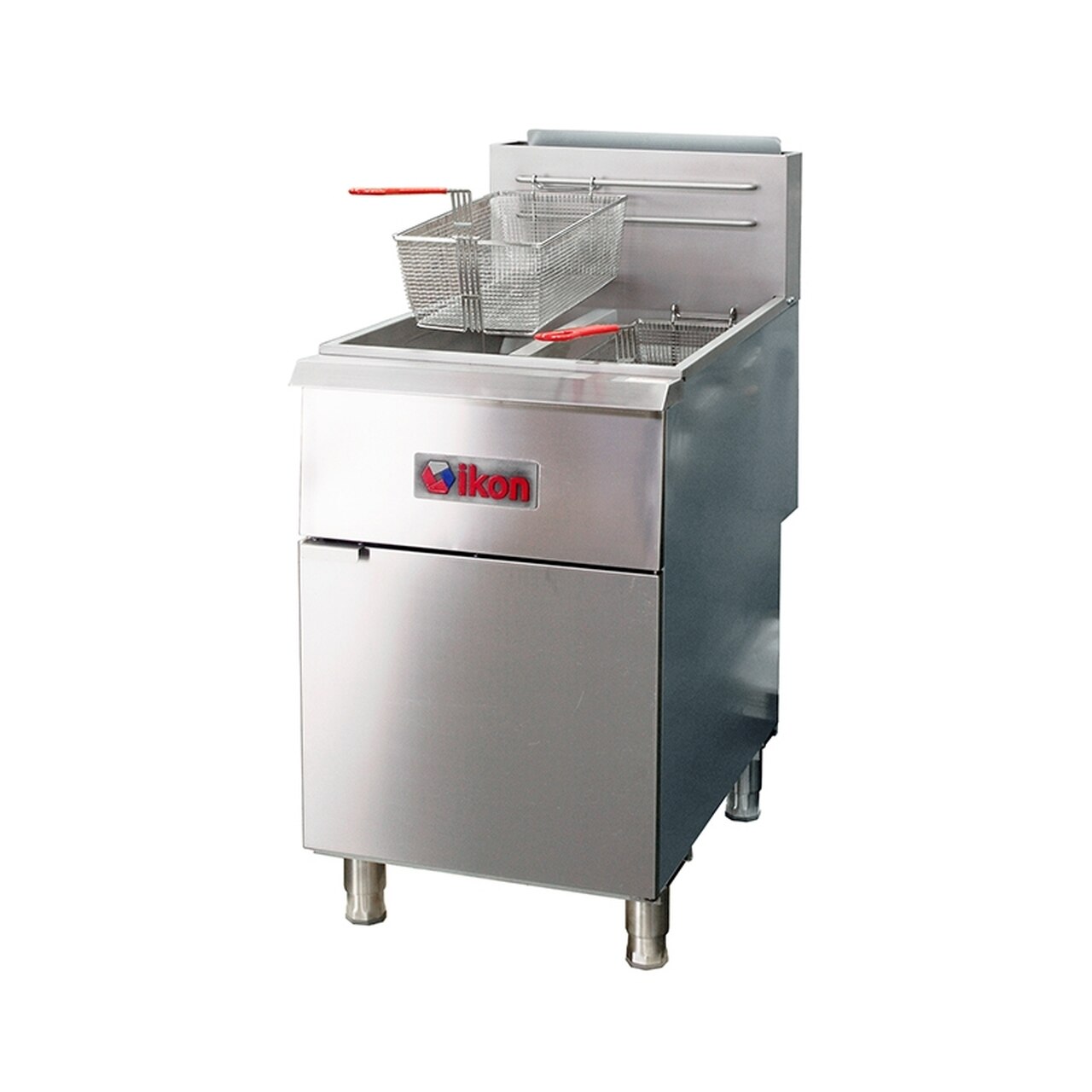

The Ikon Gas Fryer line has a tube heat exchange design that incorporates fast temperature recovery and large cold zone.
• 30,000 BTU / burner
• Models: 4 tubes, 2 split tanks.
• 2 set individual gas control system for 2 split tanks.
• Millivolt (snap action) thermostat, 200°F ‐ 400°F
• Stainless steel front and door
• Sides and back are galvanized steel
• Large cold zone to trap food particles
• 1‐1/4” dia full port drain valve for fast and complete
• 2” diameter adjustable Stainless Steel legs standard,
• Tank is fully peened for smoother welds & easy cleaning
• Drain pipe holder attached to inside door
• Twin nickel plated baskets
(Natural Gas or LP)
|Dimensions||20.9”W x 34”D x 45.75”H|
Total: 120,000 BTU’s
|Number of Heat Tubes||4|
|Oil Capacity||40 lbs each tank|
|Number of Pots||2|
