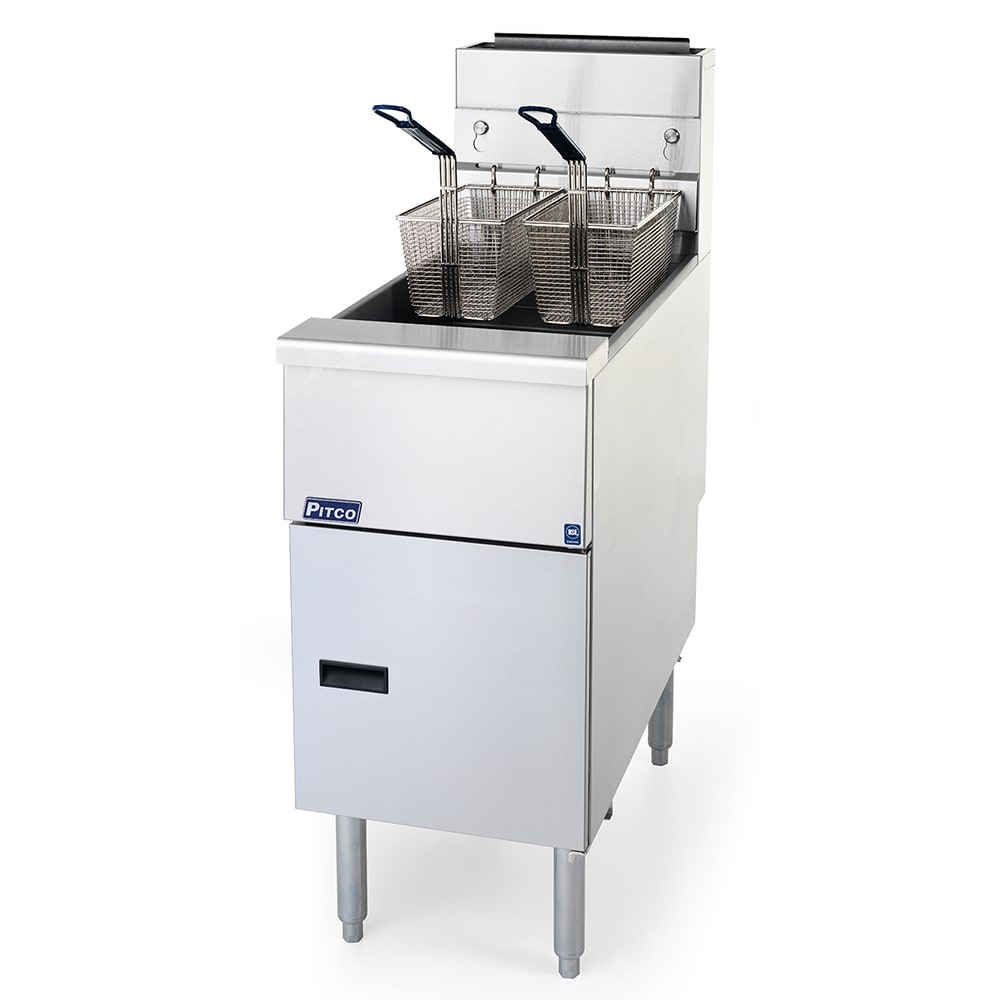

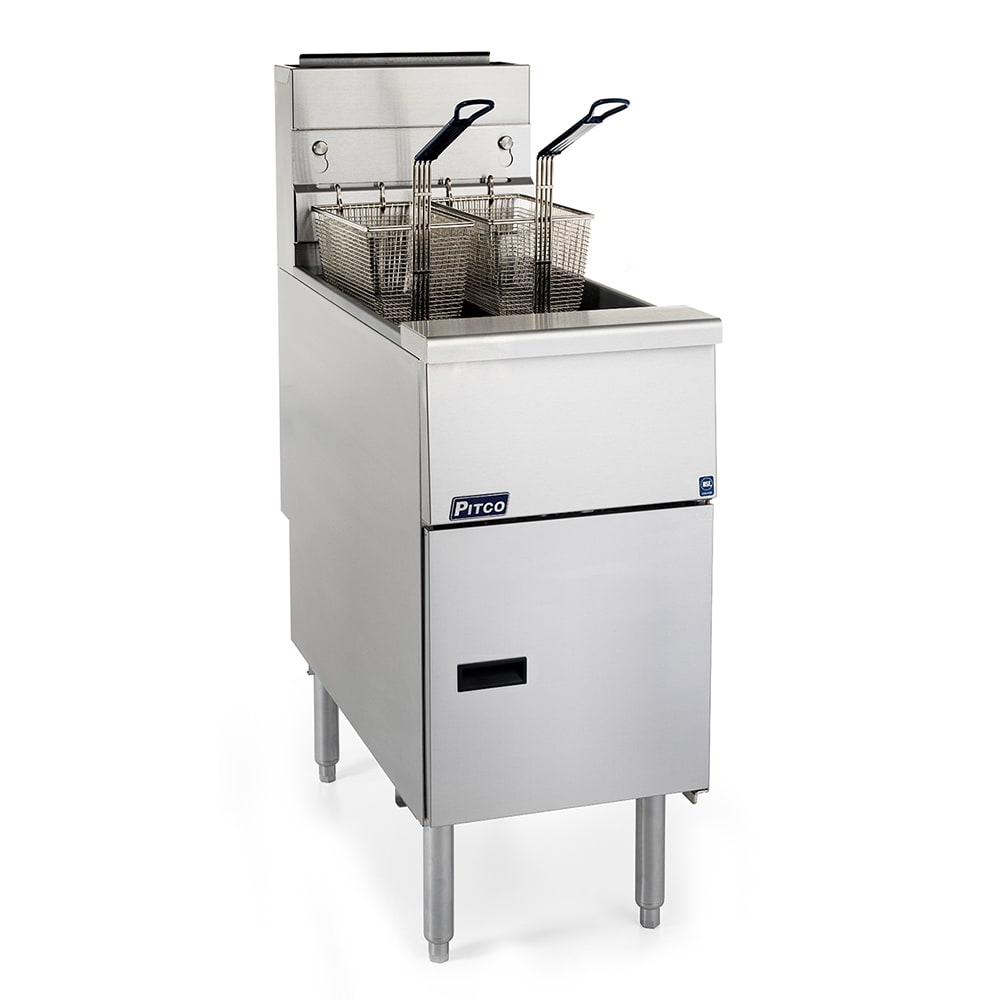

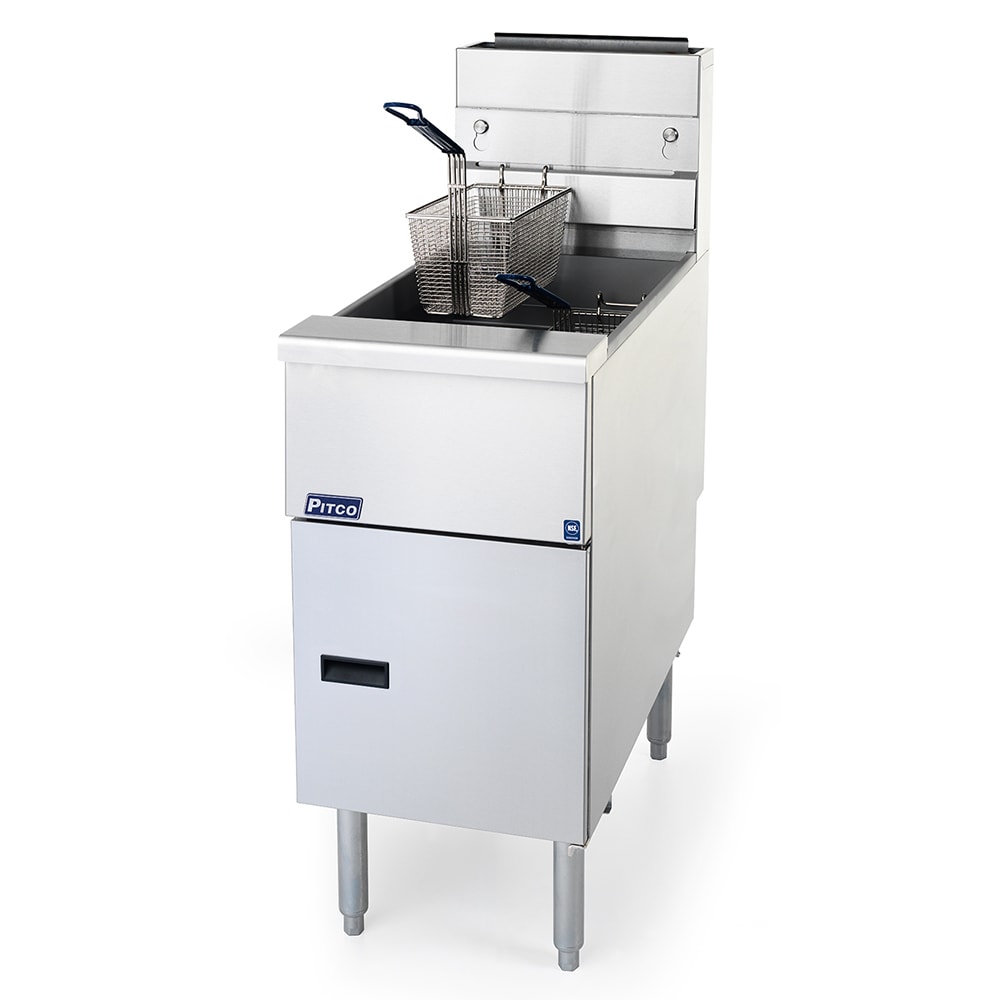

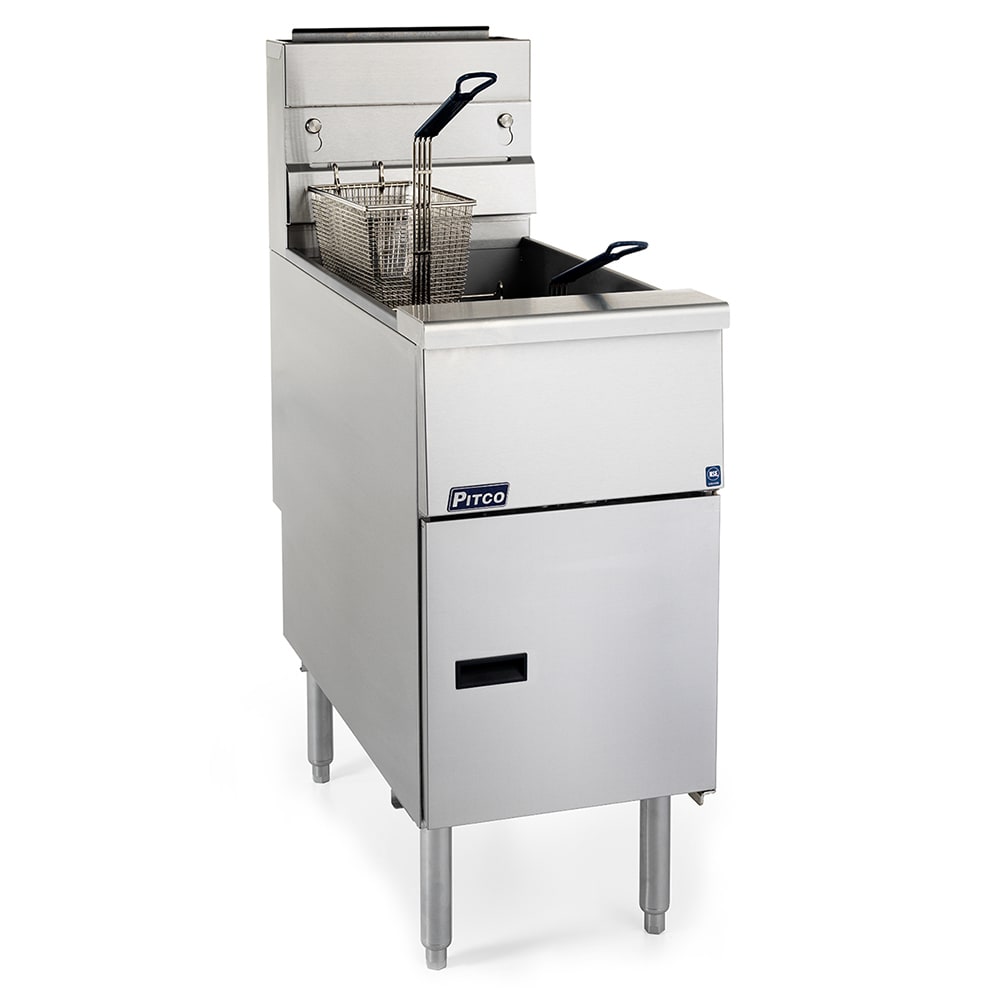

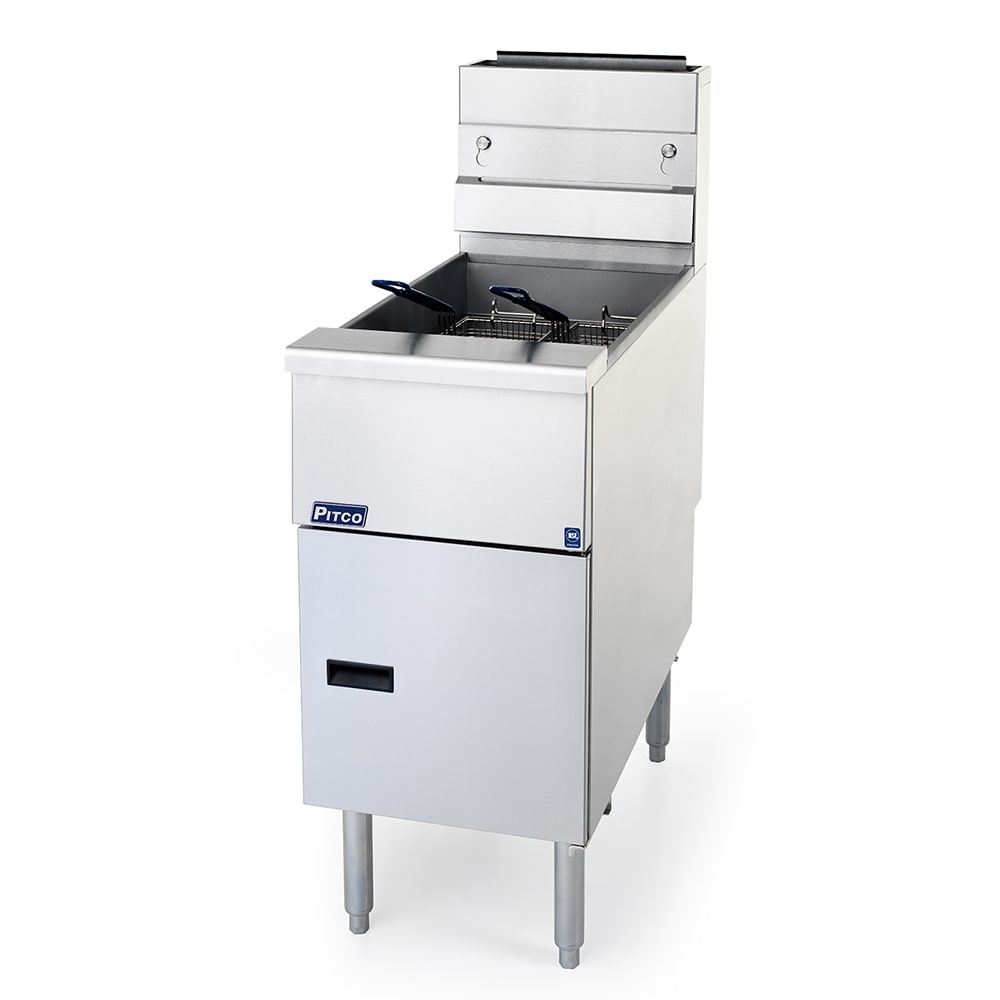

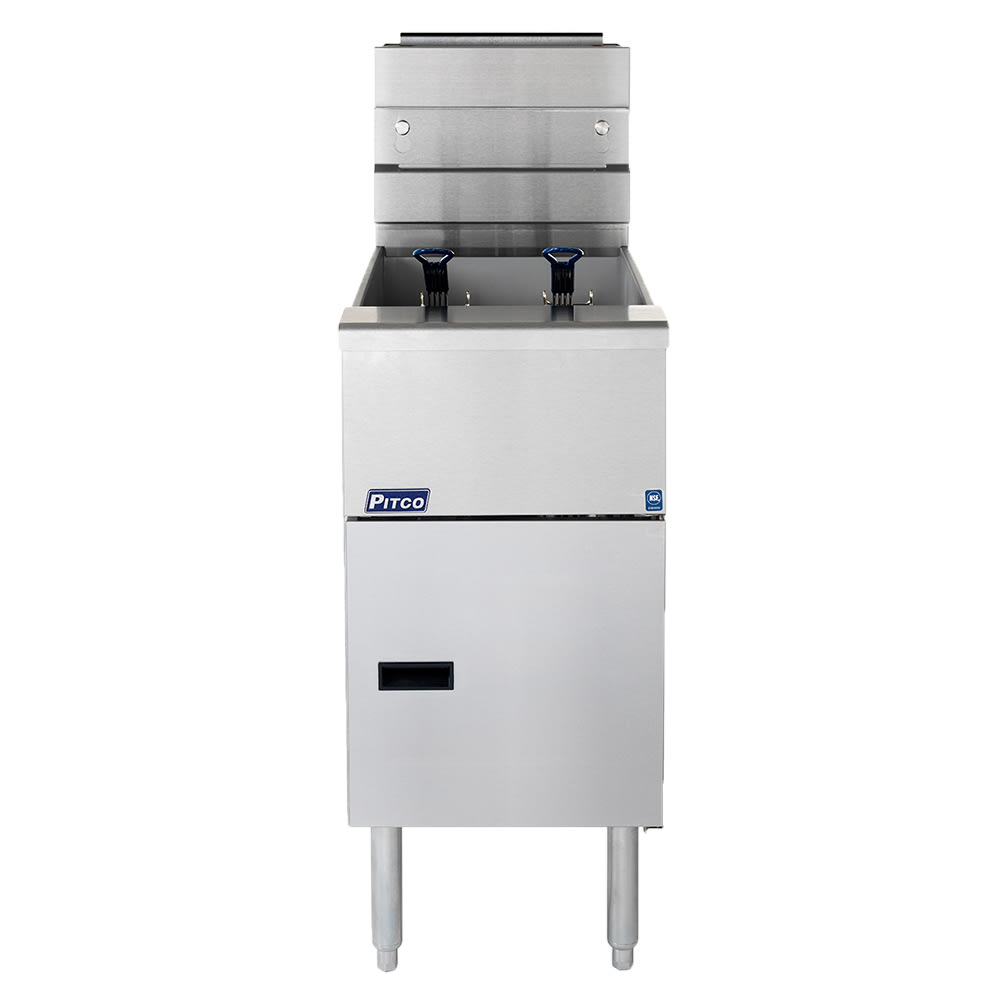

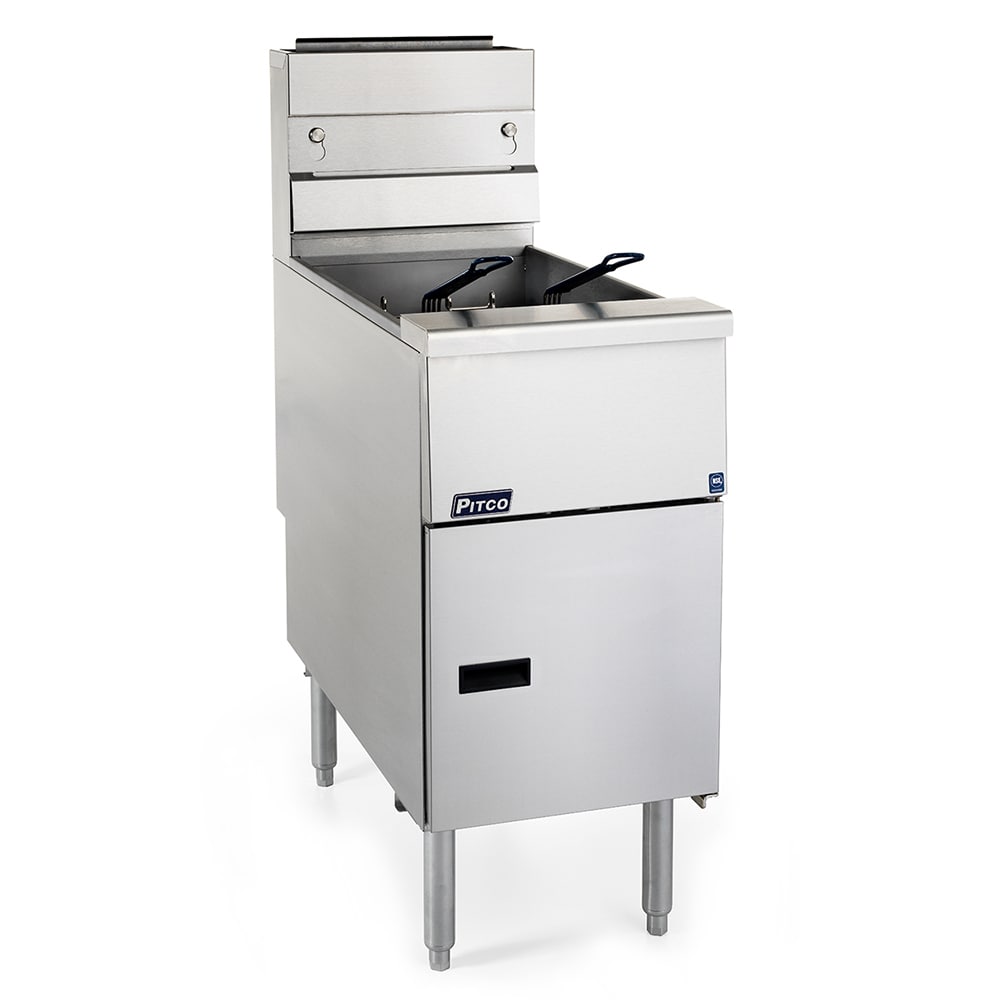

Pitco SG14RS Gas Fryer – (1) 50 lb Vat, Floor Model

This Pitco SG14RS Solstice gas fryer has a 40 to 50 pound oil capacity, making it an economical solution for medium- or high-volume eateries with breaded and battered products to fry. The fryer’s Solstice burner technology provides even, consistent heat and quick recovery without the need for a blower. The millivolt thermostat provides more accurate temperature control than traditional electromechanical thermostats.

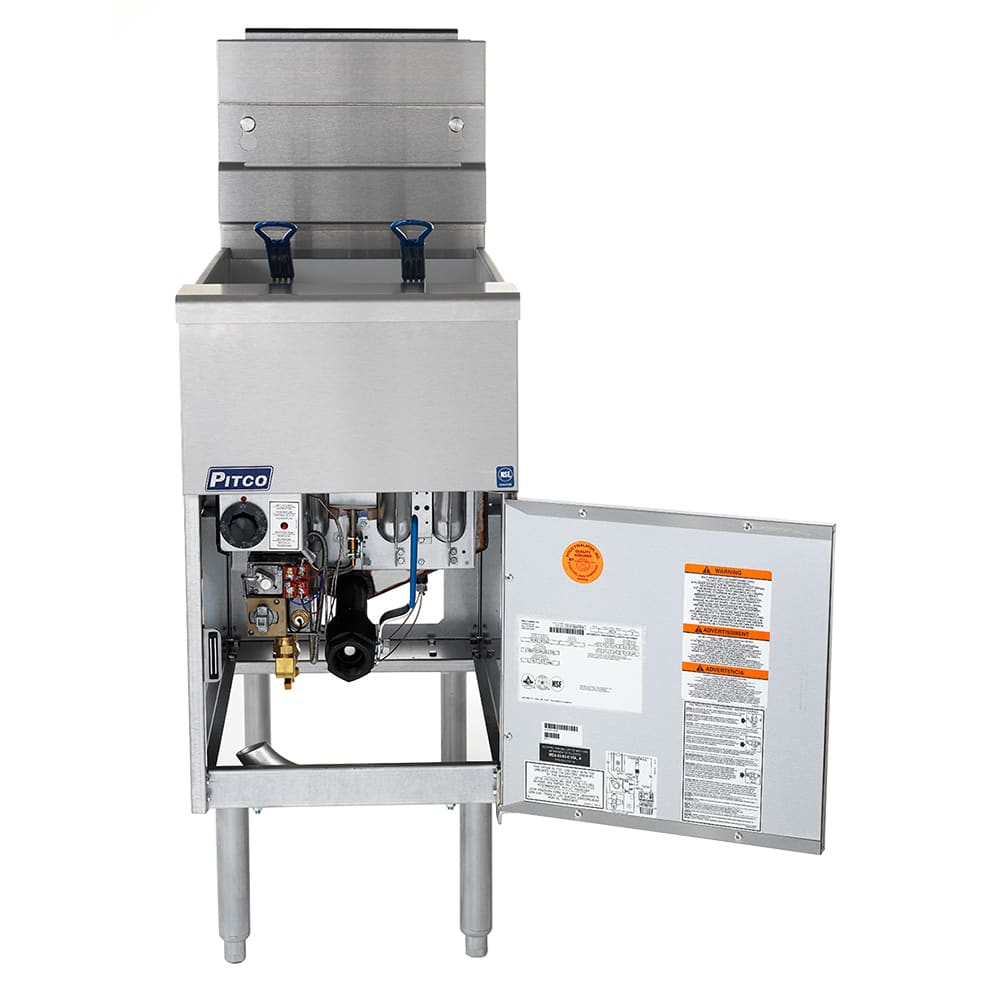

This fryer is built with a stainless steel tank that supports cleanup and lasts a long time. The fryer’s cabinet front, door, and sides are also built with steel, ensuring the exterior can be wiped clean. The door is mounted on a heavy-duty, ³/₁₆-inch hinge, so it will not get loose or sag over time. Behind the door is a 1¹/₄-inch drain valve that provides users a way to quickly and thoroughly remove oil and sediment from the frypot. This drain can be fitted with the included drain extension to guide oil into the appropriate container or filter system.

For safety, the Pitco SG14RS commercial fryer is equipped with a high-limit cut-off switch that shuts off the gas burner if it exceeds safe temperatures. This system helps protect against fires and damage to components from excessive heat. An included flue deflector guides excess heat from the fryer’s burners toward the hood vent, helping to maintain comfortable ambient temperatures in the kitchen.

Product Details

• Part of the Solstice series
• 40- to 50-lb. oil capacity
• 3¹/₄– to 5-in. cook depth
• Stainless steel tank for durability and cleanability
• Stainless steel cabinet sides, front, and door
• Solstice burner technology provides a blower-free, atmospheric heating system for consistent temperatures and fast recovery
• Millivolt thermostat for temperature accuracy
• High-limit safety switch shuts off gas flow if fryer begins to overheat, protecting components and preventing fires
• Includes 2 twin mesh baskets
• Basket hanger is removable without tools for cleaning
• Door is mounted on ³/₁₆-in. bottom hinge for durability
• 1¹/₄-in. full-port drain valve enables oil to be drained quickly and thoroughly
• 9-in. adjustable legs raise fryer off the floor for cleaning underneath
• Drain line clean-out rod helps thoroughly clear fryer of sediment
• Drain extension helps drain oil into a container or filter unit
• 122,000 BTU
• Requires installation under a hood
• For installation at 2,000-ft. elevation or higher, call customer care

Dimensions & Utilities

• Frying area: 14 in. L x 14 in. W
• Overall: 15⁵/₈ in. W x 38¹¹/₃₂ in. D x 54¹³/₃₂ in. H
• ³/₄-in. NPT rear gas connection

Product Features

Solstice Fryer, floor model, full frypot, 40-50 lb. oil capacity, millivolt control, stainless steel tank, front, door & sides, 122,000 BTU, NSF, CE, CSA Flame, CSA Star, AuGA
