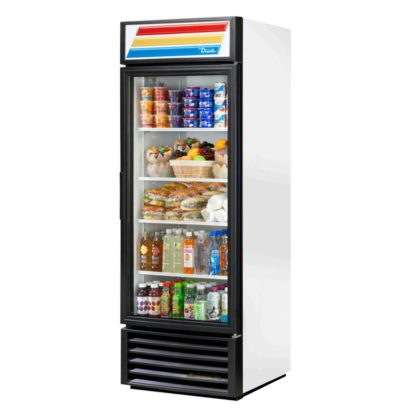

True GDM-23-HC~TSL01 27″ One Section Glass Door Merchandiser 115v

The True GDM-23-HC~TSL01 glass door merchandiser is equipped with low-emissivity glass, which provides visibility without sacrificing energy efficiency or refrigerator performance. Foamed-in-place polyurethane insulation keeps product chilled, and the white vinyl laminate exterior resists chipping and peeling. Its interior is lined with durable white aluminum, and its floor is made of stainless steel.

Featuring left-side hinges, this merchandiser’s door opens on the right and closes by itself with magnetic gaskets that create an airtight seal. Its 12-inch handle offers a sturdy grip. To hold product, the cabinet’s four PVC-coated wire shelves can be adjusted in ¹/₂-inch increments. This unit has LED lights that illuminate the interior and an exterior panel that can hold signage (signs are sold separately).

This merchandiser’s factory-balanced refrigeration system has large components designed to maintain temperatures between 33 and 38 degrees Fahrenheit. Operating with more energy efficiency than traditional equipment, fan motors push steady volumes of air over the condenser and evaporator coils. The True GDM-23-HC~TSL01 is built with a bottom-mounted condensing unit that provides access to critical components.

Product Details

• Exterior sign panel is illuminated and compatible with a number of sign options (each sold separately)
• Interior is illuminated by safety-shielded LED lights
• Includes 4 PVC-coated wire shelves
• Each shelf is adjustable in ¹/₂-in. increments for customized holding
• Exterior of the cabinet is finished with chip- and peel-proof white vinyl laminate
• Interior is lined with white aluminum
• Cabinet is insulated with polyurethane insulation
• Frame rail is welded and black-powder coated for durability
• Leg levelers are attached to the frame rail so that the unit can be installed level on uneven floors
• Clean-out drain is located in cabinet floor for quick cabinet cleaning

Product Features

Refrigeration System

• R290 hydrocarbon refrigerant is more energy efficient and environmentally friendly than traditional refrigerants
• Self-contained, factory-engineered refrigeration system maintains steady cabinet temperatures through large evaporator and condenser coils
• Temperature range: 33-38 degrees F
• Electronically commutated condenser and evaporator fan motors move consistent volumes of air while requiring less energy and producing less heat than traditional technologies
• Condensing unit sits at the bottom of the equipment cabinet, raising the bottom merchandise shelf to a no-stoop level for customer convenience
• Epoxy-coated evaporator is designed for a lifetime of rust resistance

Left-hinged Door

• Opens on the right
• Low-emissivity thermal glass door is designed to resist heat transfer and maintain
  energy efficiency while showcasing held products
• 12-in. extruded aluminum handle provides a comfortable grip
• Door is mounted on a self-closing hinge to prevent it from being left open
• 1-piece magnetic door gasket can be removed without tools and then cleaned or replaced

Dimensions & Utilities

• Shelves: 22⁹/₁₆ in. L x 23¹/₄ in. D

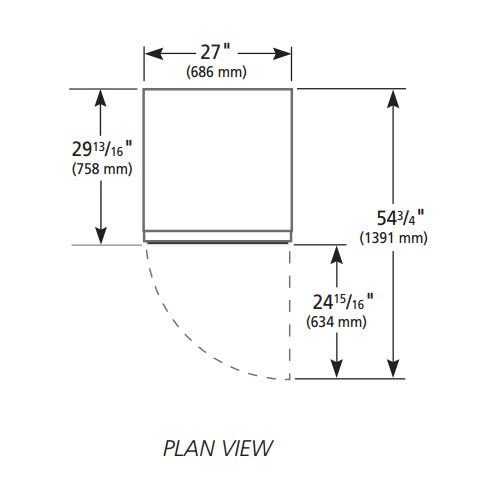

• Overall: 27 in. W x 31¹/₂ in. D x 78⁵/₈ in. H
• 5.4 A, ¹/₃ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Refrigerated Merchandiser, one-section, True standard look version 01, (4) shelves, (1) Low-E thermal glass hinged door, LED interior lights, powder coated steel exterior, white aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 5.4 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, Made in USA, ENERGY STAR
