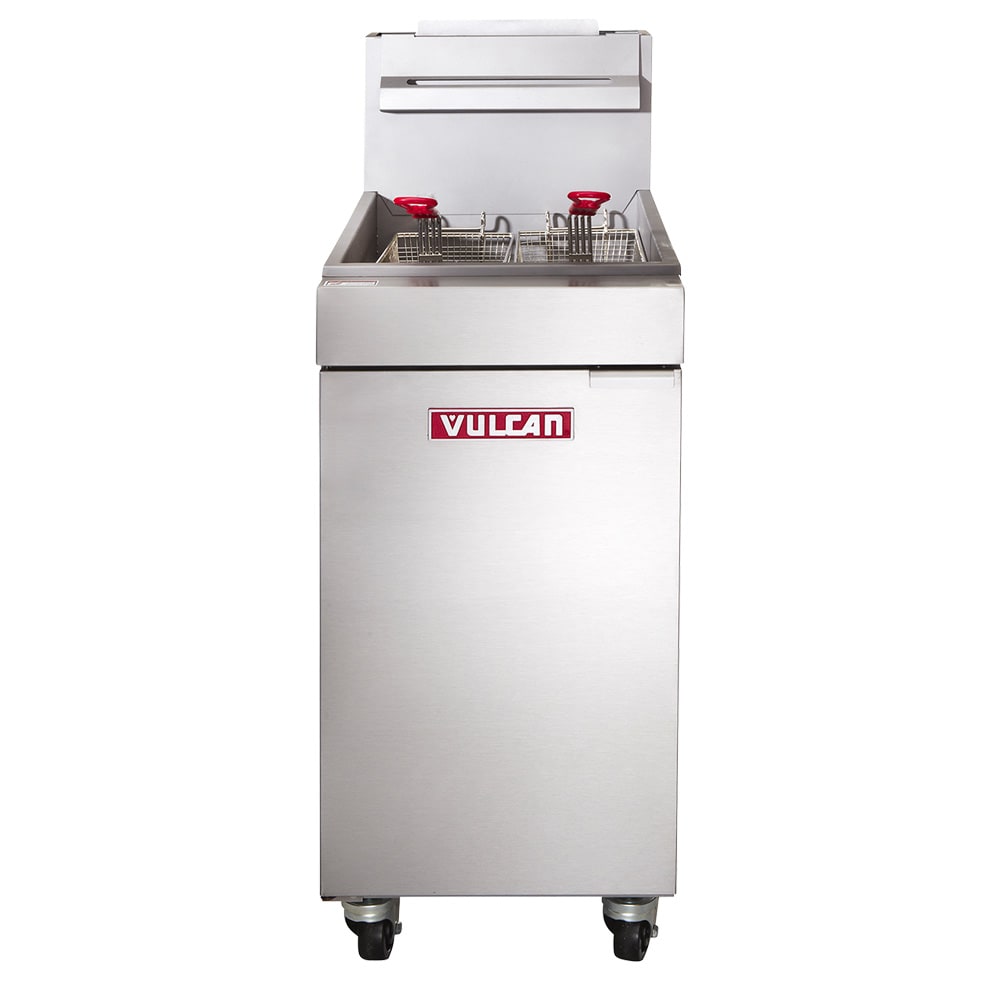

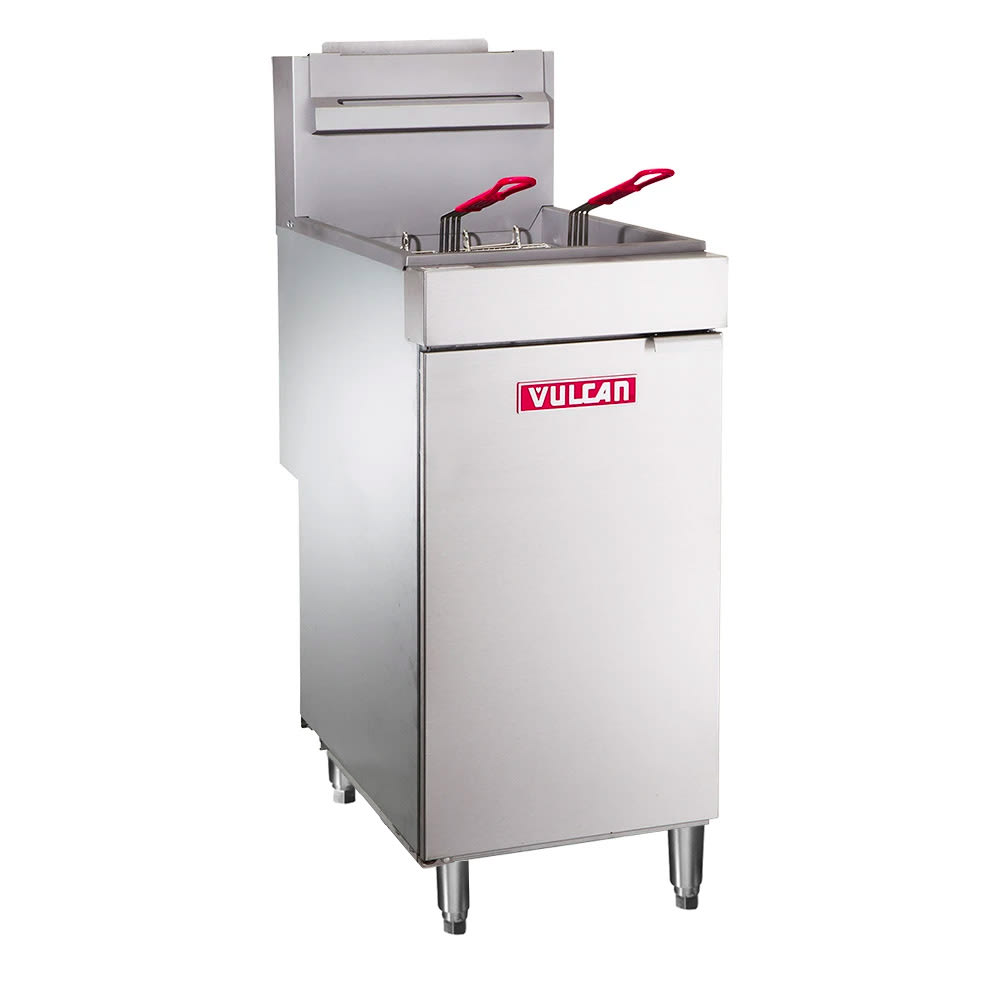

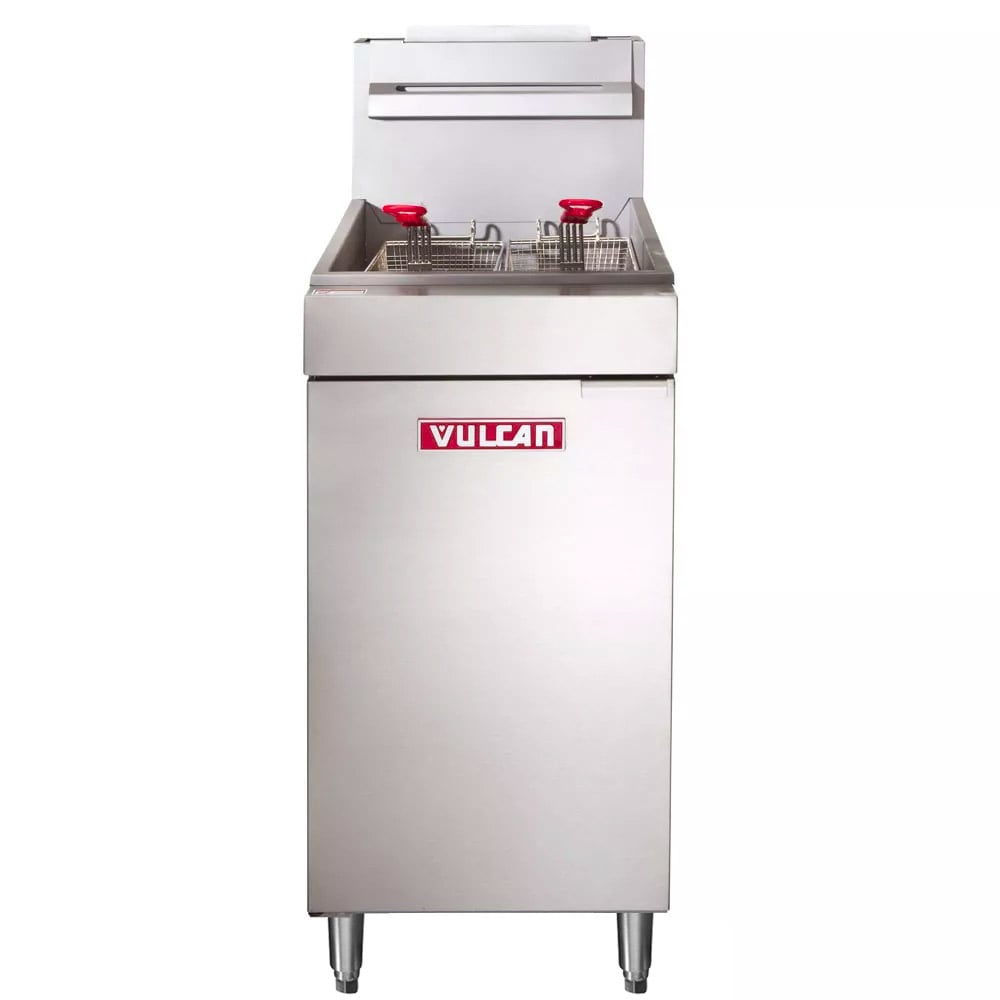

Vulcan LG400 Gas Fryer – (1) 50 lb Vat, Floor Model

The Vulcan LG400 gas fryer has a 14-inch by 14-inch stainless steel tank that accommodates 45 to 50 pounds of oil. Efficient heat transfer is provided by four heat exchanger tubes, and twin baskets with a stainless steel basket hanger are included. Each of the baskets has a plastic-coated handle, which is less conductive than metal so the risk of injury is reduced. Because the basket hanger is removable, it is convenient to thoroughly clean the tank. To keep excess debris from burning and affecting the oil’s flavor, the tank has a large cold zone.

In this Vulcan LG400 gas fryer, temperatures between 200 and 400 degrees Fahrenheit are achieved with a snap-action, millivolt thermostat control. The high-limit shut-off protector and flue deflector ensure safe use, while the flue sends excess heat and fumes to the hood system above the unit. Because this fryer is made of galvanized and stainless steel, it resists corrosion and supports heavy use.

Product Details

• 45-50-lb. oil capacity
• Stainless steel frypot can be wiped down
• Nickel-plated tube rack
• Large cold zone stays cooler than the frying zone, holding debris without it burning
• 2 fry baskets
• Stainless steel basket hanger can be removed for cleaning
• Temperature range: 200-400 degrees F
• Millivolt thermostat control operates without electrical connection
• Built-in flue deflector
• High-limit shut-off protector extinguishes the standing pilot and shuts the gas combination valve when temperatures are too high
• Heavy-duty stainless steel front, top, and door
• Galvanized G90 steel sides and back
• 1¹/₄-in. drain valve
• Freestanding design
• 120,000 BTU
• Specify installation elevation if over 2,000 ft. by calling customer care at (800) 522-0517

Dimensions & Utilities

• Frying area: 14 in. x 14 in.
• Overall: 15.5 in. W x 29.75 in. D x 47.63 in. H
• Powered by natural gas or liquid propane
• ¹/₂-in. and ³/₄-in. rear gas connections

Fryer, natural gas or liquid propane, 15-1/2″ W, free-standing, 45-50 lb capacity, millivolt thermostat controls, twin baskets, legs, stainless steel front top, door and fry tank, 120,000 BTU, CSA Star, CSA Flame, NSF
