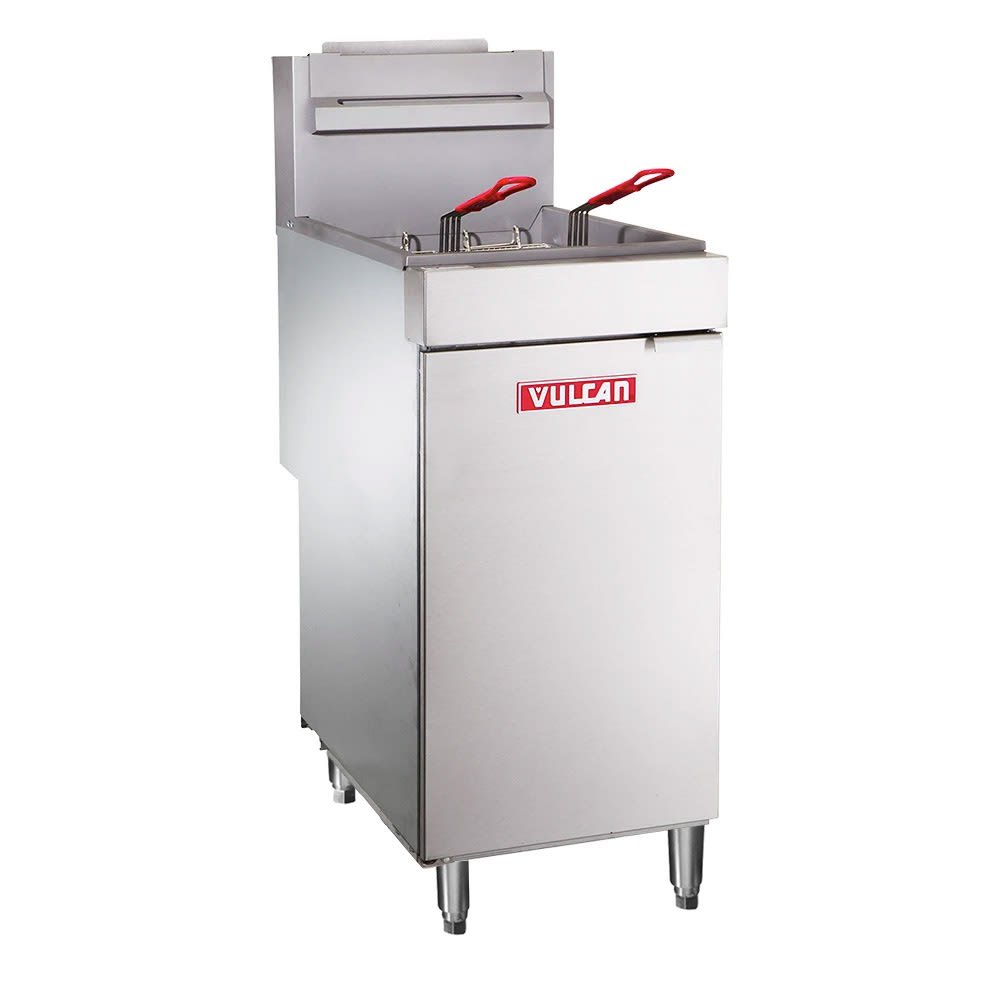

This Vulcan LG500 floor-model fryer has a temperature range of 200 to 400 degrees Fahrenheit, and if the temperature rises above the safe amount, the high-limit shut-off turns off the natural gas or liquid propane flowing to the unit. Designed to hold 70 pounds of oil, this fryer’s tank has a cool zone that sits under the cooking area so sediment can settle-where it will not burn-until kitchen staff are ready to clean. This feature prevents the oil from taking on a burnt flavor and extends its life significantly.
For corrosion resistance, this unit’s sides and back of the tank are galvanized, while the reinforced door is made from stainless steel and has a liner that provides durability. To enable installation on uneven floors, the four nickel-plated legs are adjustable. The stainless steel basket hanger is removable for cleaning, and the two fry baskets have plastic-coated handles to help prevent injuries. This Vulcan LG500 commercial fryer has a tube rack that is plated in nickel for strength and rust resistance.
- 65-70-lb. oil capacity
- Durable stainless steel frypot is convenient to clean
- Nickel-plated tube rack
- Large cool zone does not get as hot as the cooking area, helping prevent sediment from burning
- 2 small fry baskets
- Stainless steel, removable basket hanger
- Temperature range: 200-400 degrees F
- Millivolt thermostat control does not need an electric connection
- Built-in flue deflector for directing heat to the hood system
- High-limit shut-off valve for gas combination valve and standing pilot
- Front, top, and door are constructed of stainless steel for strength
- Corrosion-resistant galvanized sides and back
- 11/4-in. drain valve
- Freestanding, floor-model design
- 150,000 BTU
- Specify installation elevation if over 2,000 ft. by calling customer care at (800) 522-0517
Dimensions & Utilities
- Frying area: 19.5 in. x 14 in.
- Overall: 21 in. W x 29.75 in. D x 47.63 in. H
- Powered by natural gas or liquid propane
- 1/2-in. and 3/4-in. rear gas connections
Fryer, natural gas or liquid propane, 21″ W, free-standing, 65-70 lb capacity, millivolt thermostat controls, twin baskets, legs, stainless steel front top, door and fry tank, 150,000 BTU, CSA Star, CSA Flame, NSF
